Autel MaxiSys MSOAK Oscilloscope Accessory Kit, Work w/ Autel Scanner Ultra S2 Ultra MS919 S2 MS919 MP408, 65A 650A AC/DC Current Clamp, Coil On Plug Probe, 2pcs HT Extension Lead, 2*2pcs Battery Clip

Features

• CompatibilityAutel MaxiSys MSOAK oscilloscope accessory kit is compatible with obd2 scanners with MaxiFlash VCMI such as the MaxiSys Ultra S2/ Ultra EV/ Ultra/ MS919 S2/ MS919, and MaxiScope MP408. Any questions, please reach out to us directly via AutelBest @ outlook. com.

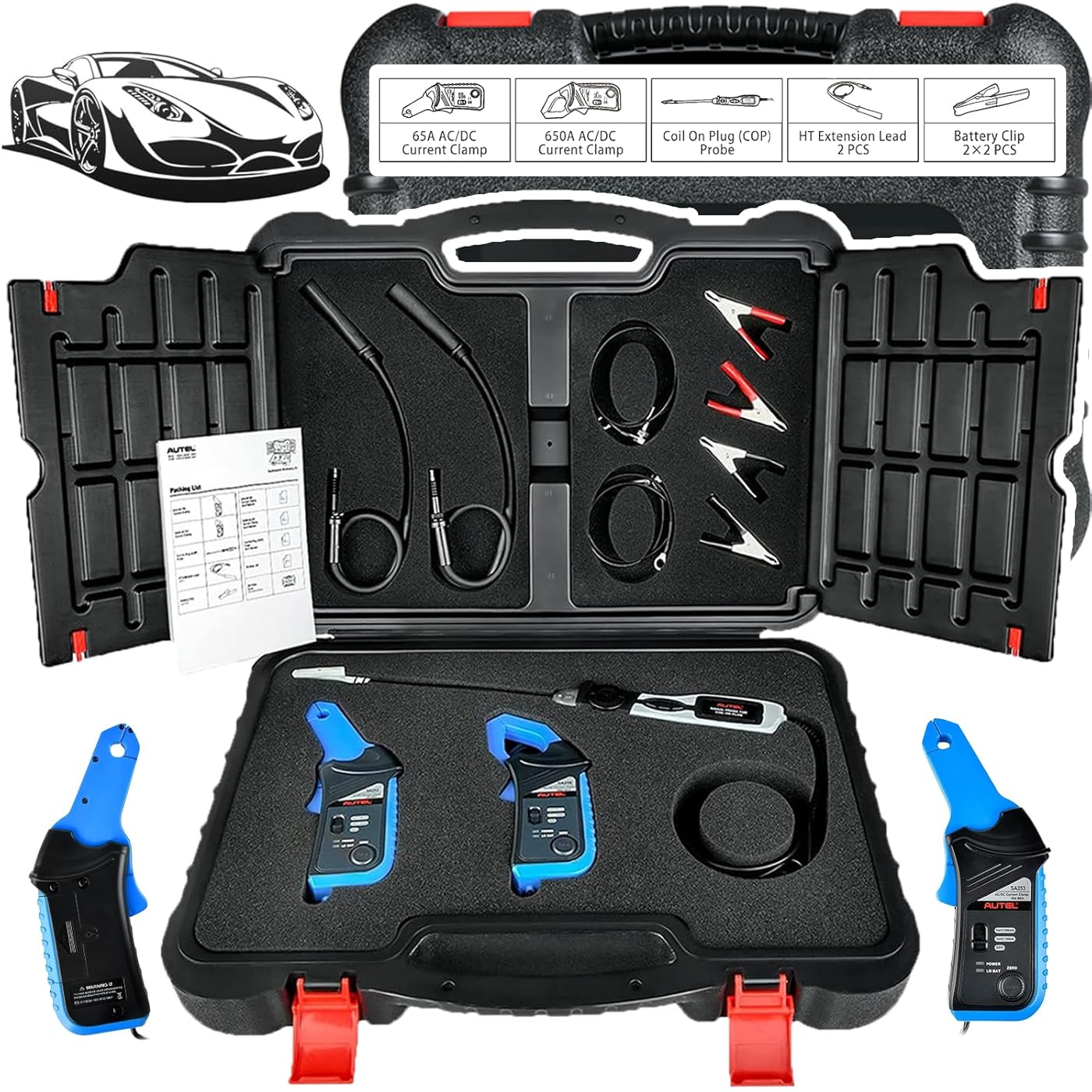

• Packing ListAutel MaxiSys MSOAK includes 65A AC/DC Current Clamp, 650A AC/DC Current Clamp, Coil on Plug Probe, HT Extension Lead (2pcs), Battery Clip (2pcs) as well as a blow-molded carrying case.
• The Coil On Plug ProbeIt can catch the ignition waveform of an automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. It can also be used with a normal oscilloscope. Special anti-interference design, high accuracy of measurement. With highlight LED, can be arbitrarily curved. Use it to check: ignition plug status; fuel injector; leakproofness of air cylinder; oil pollution; carbon deposition; storage battery.
• 65A AC/DC CURRENT CLAMP & 650A AC/DC CURRENT CLAMPWhen measuring AC or DC with the current clamp, you connect it with a multimeter or an oscilloscope to directly read the current value without physical contact with the conductor. The current clamp measures a maximum current of 65A with a frequency up to 20 KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz.
• Risk-free PurchaseYour purchase with us has 0% risk! Autel MaxiSys MSOAK is backed by NEW REPLACEMENT or FULL REFUND policy within 30 Days of purchase. And it comes with 1-year warranty and 24/7 tech support covering all defects in materials and workmanship from the date of original purchase.

Description

Autel MaxiSys MS919, 2022 Newest Intelligent Bi-Directional Control Diagnostic Scanner, Upgraded of MS909/Elite/MK908P >>> More Accurate & Safer Car Diagnostics >>> The Autel MaxiSys MSOAK Oscilloscope Accessory Kit works with the MaxiFlash VCMI included in the MaxiSys Ultra S2/ Ultra EV/ Ultra/ or MS919 S2/ MS919, or the 4-channel oscilloscope MP408 (sold separately), helping you retrieve more accurate car electrical data such as AC/DC and ignition waveform to maximize your diagnostic efficiency. Besides, More, you’ll be safer to measure currents in hard-to-access areas because with MSOAK you don’t need to break the electronic circuit. Connect the included current clamp to a multimeter or an oscilloscope, and open the jaws to clip around the electrical conductor. You can directly get the current value with ease. The 65A clamp measures the maximum 65A current + 20 KHz frequency, and the 650A clamp measures the maximum 650A current + 400 KHz frequency. Want to check if the ignition plug needs to be replaced or cleaned? Just use the included COP probe SA271 working with the oscilloscope to easily catch the ignition waveform. With this money-saving kit, you can determine if the insulating property of ignition plug gets worse, or if there is any leak in the air cylinder, etc. Designed with the high measurement accuracy, the arbitrary-curved cable, and the highlight LED will give you ever-smooth operation while testing even at night. >>> Packing List >>> This Autel MaxiSYS Ultra Diagnostics MSOAK Oscilloscope Accessory Kit includes: 65A AC/DC Current Clamp; 650A AC/DC Current Clamp; Coil on Plug Probe; HT Extension Lead (2pcs); Battery Clip (2pcs); Blow-molded Carrying Case. >>> Perfect Aftersales >>> √ 1-Year W~arranty, √ 30-Day Refunds & Exchanges, √ 24/7 Customer Care and Autel Tech Service. When measuring AC or DC with the Current Clamp, you can connect it with a multimeter or an oscilloscope to directly read the current value without the need to make physical contact with the conductor, or to disconnect it for insertion through the probe. The Current Clamp measures a maximum current of 650A, with a frequency up to 400Hz. It works with jaws which open to allow clamping around an electrical conductor. After linking it with a multimeter or an oscilloscope, push down the zero adjustment knob on the clamp until the multimeter or osilloscope reads zero. 65AAC/DC Current Clamp APPLICATION PROCEDURE: 1. Connect the BNC connector of the clamp to the input of a multimeter or an oscilloscope with an input impedance of at least 10k ohms. 2. When the current is no greater than 20A, set the current clamp to the range of 1mV/10mA, otherwise to 1mV/100mA. The green LED lights, indicating that the clamp is switched on. 3. Before measuring DC, please push down the zero adjustment knob on the clamp until the multimeter or oscilloscope reads zero. When using an oscilloscope, set DC coupled mode to measure DC. 4. Clamp the jaws around the electrical conductor. 5. When the current clamp is set to 1mV/10mA, the actual current value is ten times of the measured data whose unit is mV. For example, the measured data is 10 mV and the actual current is 10x10= 100mA. 6. When the current clamp is set to 1mV/100mA, the actual current is one hundred times of the measured data whose unit is mV. For example, the measured data is 5 mV and the actual current is 5x 100=500mA. COP Probe can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. It determines whether the ignition plug needs to be replaced or cleaned. ● It can be used with normal oscilloscope. Special anti-interference design, high accuracy of measurement. ● Ergonomic design, can be arbitrary curved. ● Highlight LED which is convenient to operate at night or in dark condition. Warning: ● To avoid injury, keep the probe away from moving parts, such as the alternator drive belt and cooling fans. ● To present electric shock, do not use if the probe's sensor plate's insulation shows signs of damage.

Brand: Autel

Power Source: Battery Powered

Operating System: Android 4.0

UPC:

Manufacturer: Autel

Brand Name: Autel

UPC: 724725986332

Manufacturer: Autel

Included Components: 65A AC/DC Current Clamp; 650A AC/DC Current Clamp, Battery Clip (2pcs), Blow-molded carrying case, Coil on Plug Probe, HT Extension Lead (2pcs)

Model Number: Autel MaxiSys MSOAK

Manufacturer Part Number: Autel MaxiSys MSOAK

Power Source: Battery Powered

Operating System: Android 4.0

Native Resolution: 160x128
