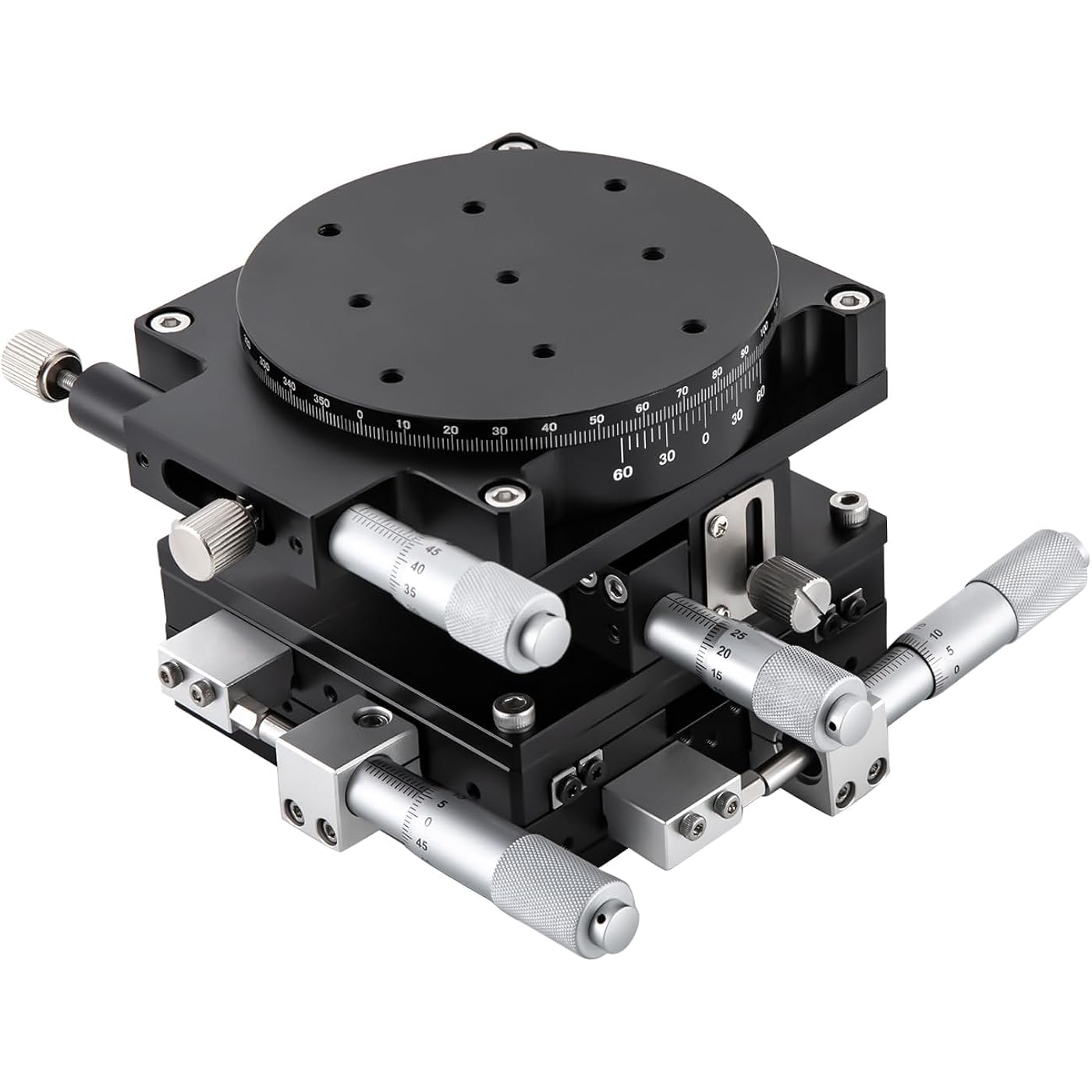

XYZR 4 Axis 6.37 * 5.42 * 3.35 in Manual Linear Positioning Stage Bearing Tuning Platform Sliding Table 90mmx90mm for Optical Instruments, Measuring Devices

Features

• High Availability: It can be matched with many types of sliding tables, such as single-axis, double-axis, z-axis, c-axis, r-axis, etc, meeting your various needs, and improving your working efficiency and quality.
• High Precision: It adopts high precise micrometer, cross roller guide, and solid square base, ensuring stable movement and high precision which can be refined to 0.01mm, so it is very suitable for high-precision devices. You can use it with confidence.
• Easy to Use: Fine and coarse adjustment knob, locking knob, highly precise micrometer, and clear markings can help you easily operate, and achieve precise regulation, adding more convenience to your work.
• Compact and Lightweight: The compact size(22.44x9.05x10.24in) and lightweight(4.4lbs) allows it can be free-stood and mounted on a desktop without taking up too much space and allow for easy carrying any place you want.
• Sturdy and Durable: The high-quality aluminum alloy with oxidation ensures sufficient durability.

Description

This manual linear position stage is made of high-quality aluminum alloy, which is strong, durable, and not easy to deform, ensuring a long service life. It boasts excellent performance, improving the precision and efficiency of checking, saving your time and energy. The simple structure and smooth surface make it very easy to clean. It is suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines, laboratory precision testing, mechanical equipment positioning and movement, various fiber coupling, optical waveguide alignment, core alignment, packaging systems, capacitive touch screen production equipment, tooling fixtures, optical instrument devices, non-standard equipment. Fine and coarse adjustment knob, locking knob, highly precise micrometer, and clear markings can help you easily operate, and achieve precise regulation, adding more convenience to your work. It adopts high precise micrometer, cross roller guide, and solid square base, ensuring stable movement and high precision which can be refined to 0.01mm, so it is very suitable for high-precision devices. You can use it with confidence. The compact size(22.44x9.05x10.24in) and lightweight(4.4lbs) allows it can be free-stood and mounted on a desktop without taking up too much space and allow for easy carrying any place you want. Load: 49N (5KGF) Minimum Marks: 0.01mm/0.00039in Accuracy: 0.03 mmmm Net Weight: 2kg/4.4 lbs Gross Weight: 2.2kg/4.8 lbs Countertop Diameter: 9cm/3.54in Product Size: 16.19*13.78*8.5cm/6.37*5.42*3.35 in Package Size: 15*15*15cm/5.9*5.9*5.9 in Material: Aluminum Alloy Surface Treatment: Oxidation Numbers of Items: 1 Mount Type: Desktop Operation Method: Manual Moving Direction: X,Y, Z, R Axis Operating Temperature: 10~50 ° C/50~122℉ Recommended Operating Temperature: 22±5°C/71.6± 41℉ Travel: XY: ±12.5mm/0.49in, Z: 10mm/0.39in, R Axis:360° Coarse Tuning (±5° Fine Tuning) 1* Manual Linear Position Stage 1.This series of products is composed of high-precision components. Please avoid using them in environments such as extremely high and low temperatures, severe temperature fluctuations, direct sunlight, high humidity, high dust, high vibration, high impact, and an easy fogging environment. 2.If more than the specified load is applied to the countertop, the accuracy will decrease and the machine may even be damaged. Please try to avoid it as much as possible.

Product Dimensions: ‎6.37 x 5.42 x 3.35 inches

Item Weight: ‎4.4 pounds

Manufacturer: ‎EurHomePlus

Item model number: ‎LT90-LM

Date First Available: ‎July 22, 2023
