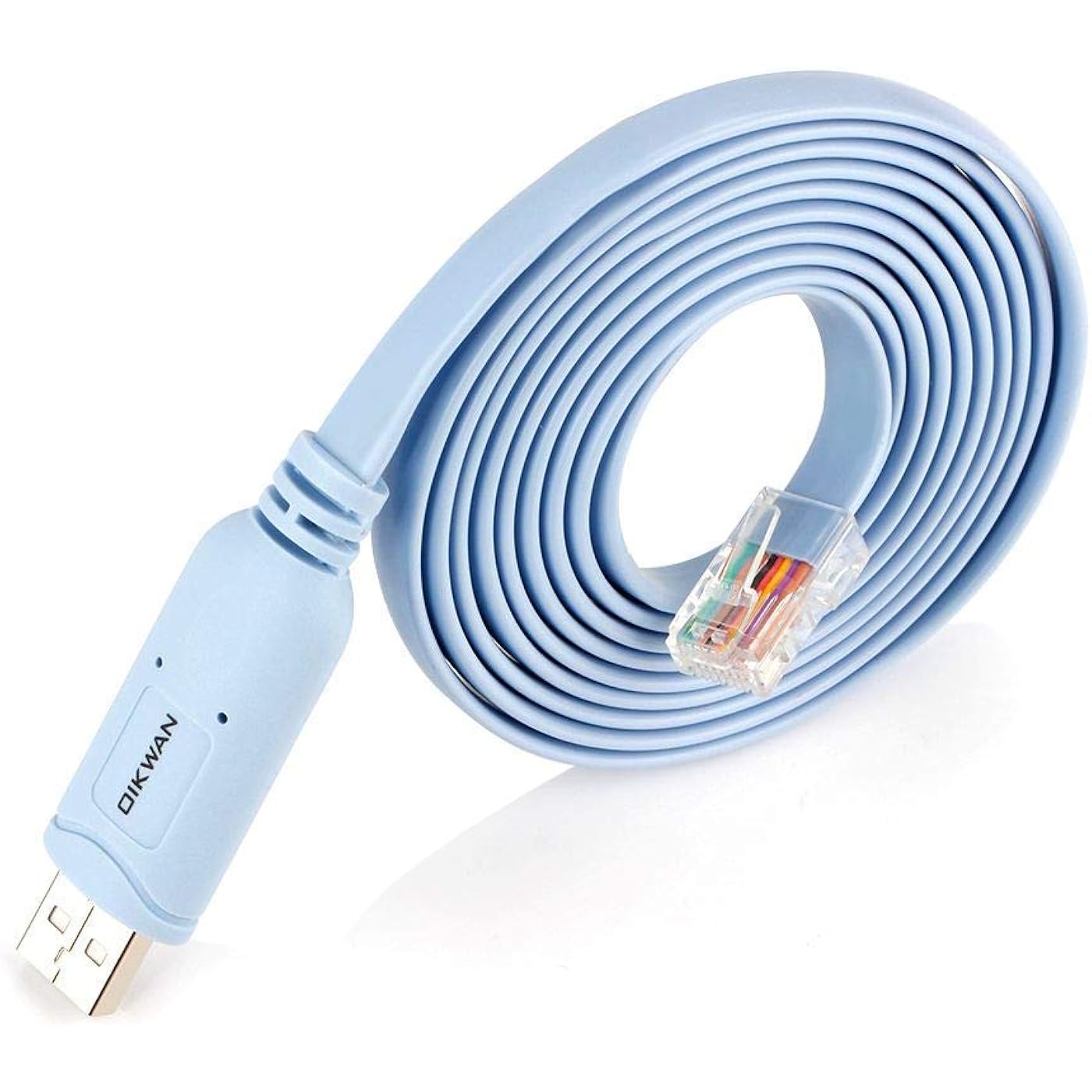

USB Console Cable,USB to RJ45 Console Cable for Cisco Routers/AP Router/Switch Windows, Mac, Linux(1.8m,Blue)

Features

• Console cable :6FT-USB-RS232-RJ45 console cable .It's used for debugging and configuring network equipment !!Please NOTE this is USB to RJ45 CONSOLE CABLE ,Not ETHERNET !!!It is 8p8c!! Look carefully of the Pin is match with your device. Before ordering , please confirm it is you need. After receiving ,please read user manual /instruction at first . Customer service always online.
• Works for console portthis USB to rj45 console cable Replaces COM port RS232 (DB-25/DB-9) serial port perfectly, connects to any laptop/PC's USB port directly to a console port like a charm. No more RS232 Female and male adapters32 and 64 bit operating systems are both support.except Chrome OS
• Essential tools for network engineersThe Cisoc Console Cable It's designed for that a PC or laptops USB port connect to the console port with their Cisco modem, router, firewall, switch or other Serial based Cisco device. Cisco,Juniper,NETGEAR,Ubiquity,LINKSYS,TP-Link ,huawei, H3C, HP, 3com compatibly.
• The pinout namesCisco usb console cable USB2.0 (1.1 compatible); CONSOLE's DTE Pinouts: RTS(1), DTR(2), TXD (3), GND(4), GND(5), RXD (6), DSR(7), CTS(8); the RJ45 pinout names is 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS. Cable length 1.8m/6ft, Maximum RS232 speed 500kbaud
• LIFETIME CUSTOMER SUPPORTbeside get 1pack *6ft cisco usb to console,you also back with 180-day no reason free return and refund and 24-hour online service.

Description

Advantages Data communication fails, If it is data loss or error, The usb port connect the computer's USB port,the RJ45 port connect to the console port of the Cisco modem,router,firewall,switch or other serial based Cisco device.Use USB transfer to RS-232 converter to realize data transfer between PC and RS-232 device, allows your PC to connect RS-232 serial device About this console cable driver you need to download from the FTDI website.Choose the right driver for your operating system and device. the pinout names on the console RJ45. USB2.0 (1.1 compatible); CONSOLE's DTE Pinouts: RTS(1), DTR(2), TXD (3), GND(4), GND(5), RXD (6), DSR(7), CTS(8); so The console RJ45's pinout names is 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS. Cable length 1.8m/6ft, Maximum RS232 speed 500kbaud FTDI USB to RJ45 Console cable FT232R chip + ZT213LEEA, Compatible with any computer/PC with a USB 2.0 Port. 1.FT232 series chip of ftdi company can realize the communication between USB and RS232. It has high market share and is widely used 2.FT232 chip with wide compatibility, self powered after plug in, without external power supply 3.Compatible with multiple devices and more operating systems 4.More stable signal transmission, no need to worry about data loss Operating system support Drivers are available which allow FTDI devices to work with the following operating systems Full support for 32-bit and 64-bit Windows, MAC OS, Linux and Android, except Chrome OS These operating systems generally have universal support for USB devices, so a USB to console cable typically works well on these systems. USB to RJ45 console cable, connects to any USB port on your laptop directly to a Cisco console port. No adapters needed. It is for Cisco console port for Cisco 1000, 1600, 2500, 2600, 3600 series routers, Catalyst 3560 switch pinout, and more OIKWAN console cable to RJ 45 compatible with Almost All Brand Switches/Routers. Such as :Cisco, Ubiquiti, Juniper, Fortigate, Mikrotik, TP-Link, Huawei, HP ProCurve,etc. It's used for debugging and configuring network equipment ,not ethernet cable USB to RS232 Versatile in application, meeting various needs, suitable for connecting computers to a wide range of RS232 devices.

Brand: OIKWAN

Connector Type: Usb 2.0

Cable Type: USB

Compatible Devices: Laptop, PC, Router, Server

Special Feature: Data Transfer, Short Circuit Protection

Connector Type: Usb 2.0

Cable Type: USB

Compatible Devices: Laptop, PC, Router, Server

Other Special Features of the Product: Data Transfer, Short Circuit Protection

Compatible Phone Models: No Compatible Phone Models

Ethernet Cable Category: Cat 6

Connector Gender: Male-to-Male

Data Transfer Rate: 20 megabits_per_second

Number of Pins: 8

Frequency: 500 KHz

Maximum Voltage: 12 volts_of_direct_current

Connectivity Technology: USB 2.0 to RJ45

Gauge: 6

Recommended Uses For Product: Only for devices with console port

Indoor Outdoor Usage: Indoor, Outdoor

Color: Blue

Item Shape: Flat

Brand Name: OIKWAN

Model Name: OIKWAN

Model: 4351106646

Item Length: 6 feet

Manufacturer: OIKWAN

UPC: 763383543013

Warranty Description: 2years

Included Components: USB to RJ45 console cable

Part Number: 4351106646

Unit Count: 6 Feet

Item Weight: 70 g

Number of Items: 1

Outer Material: Polyvinyl Chloride (PVC)
