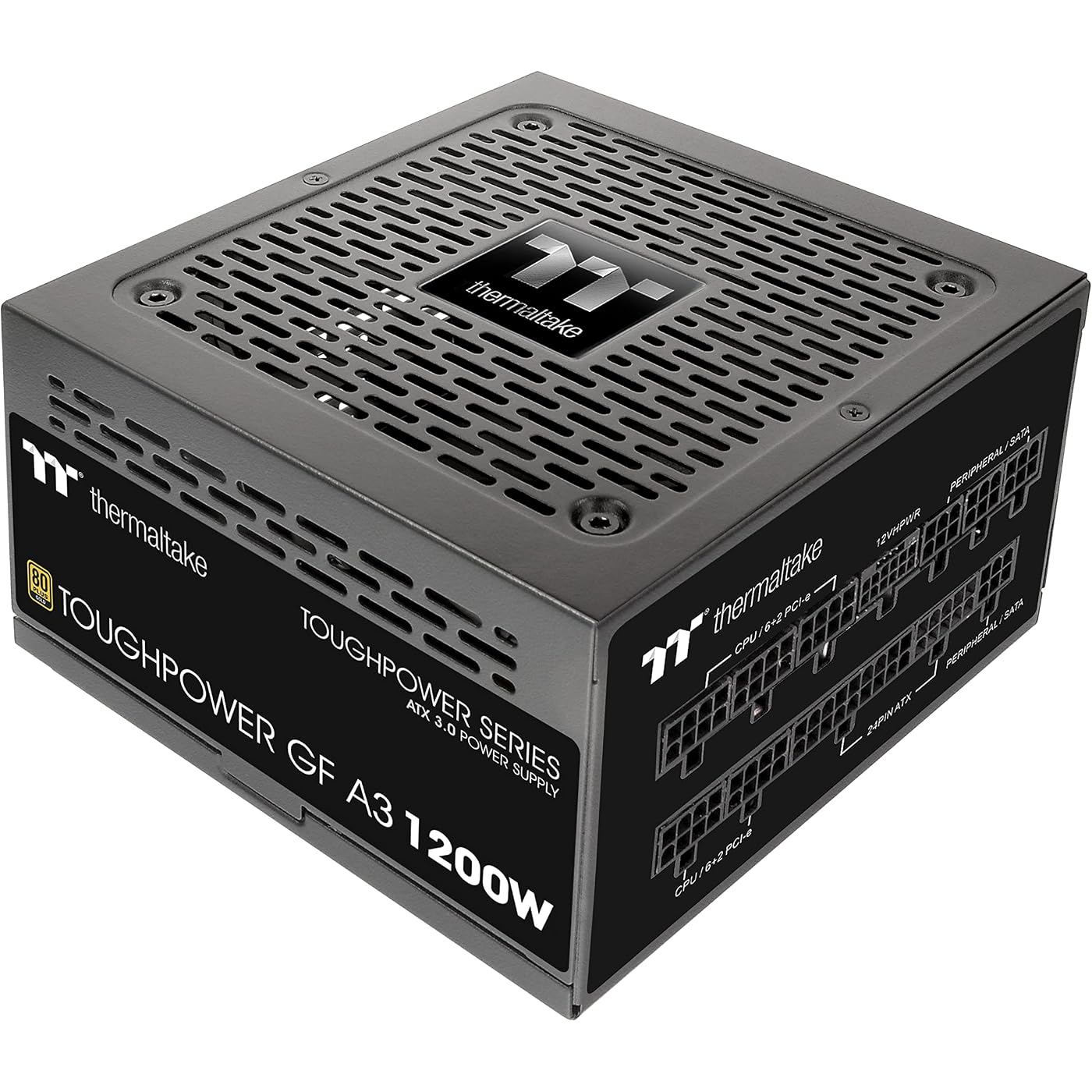

Thermaltake Toughpower GF A3 1200W, True 600W 12V-2x6 Connectors on PSU & NVIDIA RTX 50 Series, ATX 3.1/PCI-E 5.1, 80+ Gold, SLI/Crossfire Ready Power Supply, PS-TPD-1200FNFAGU-L, 10 Year Warranty

Features

• 80 Plus Gold Certified and Fully Compatible with Intel ATX 3.1 Standards
• PCIe Gen 5.1 Ready with 12V-2x6 Connector
• Made to Comply with the Latest Graphics Cards
• High Amperage Single +12V Rail & High-Class Technologies
• Fully Modular Low-Profile Flat Cables

Description

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The wattage marked on the 12V-2x6 connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12V-2x6) PCIe connector of the GF A3 1200W can deliver up to 600W for PCIe 5.1 graphics cards. Note: 1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors. 2. Please follow the recommended power requirements from the GPU manufactures before using the 12V-2x6 cable. •P/N: PS-TPD-1200FNFAGU-L •WATTS: 1200W •MODEL: TTP-1200AH2FLG •MAX. OUTPUT CAPACITY: 1200W •COLOR: Black •DIMENSION ( W / H / D ): 150mm(W)x86mm(H)x140mm(D) •PFC (POWER FACTOR CORRECTION): Active PFC •POWER GOOD SIGNAL: 100-150 msec•HOLD UP TIME: > 17msec •INPUT CURRENT: 20A-8A •INPUT FREQUENCY RANGE: 50Hz/60Hz •INPUT VOLTAGE: 100-240V～ •OPERATING TEMPERATURE: 5°C to + 45°C •OPERATING HUMIDITY: 20% to 85%,non-condensin •STORAGE TEMPERATURE: -40°C to + 55°C •STORAGE HUMIDITY: 10% to 95%, non- condensing •COOLING SYSTEM: 12cm FDB Fan •EFFICIENCY: Meet 80 PLUS® Gold at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: FCC/ICES/CB/cTUVus •PCI-E 6+2PIN: 5 •PCIE 12+4PIN: 1(600W)

Model Name: GF A3 1200

Brand: Thermaltake

Compatible Devices: Personal Computer

Connector Type: ATX, PCI Express

Output Wattage: 1200 Watts

Form Factor: ATX

Wattage: 1200 watts

Cooling Method: Air

Item dimensions L x W x H: 5.9 x 3.4 x 5.5 inches

Item Weight: 3.64 Pounds

Compatible Devices: Personal Computer

Connector Type Used on Cable: ATX, PCI Express

Output Wattage: 1200 Watts

Form Factor: ATX

Wattage: 1200 watts

Cooling Method: Air

Power Supply Design: Full Modular

Number of Fans: 1

Maximum Input Voltage: 240 Volts (AC)

Minimum Input Voltage: 100 Volts (AC)

System Bus Connector Type: ATX

Item Dimensions: 5.9 x 3.4 x 5.5 inches

Item Weight: 3.64 Pounds

Model Name: GF A3 1200

Brand: Thermaltake

Manufacturer: Thermaltake

UPC: 841163088258

Mfr Part Number: PS-TPD-1200FNFAGU-L

Model Number: PS-TPD-1200FNFAGU-L

Warranty Description: 10 Year Manufacturer

Unit Count: 1.0 Count

EU Spare Part Availability Duration: 10 Years
