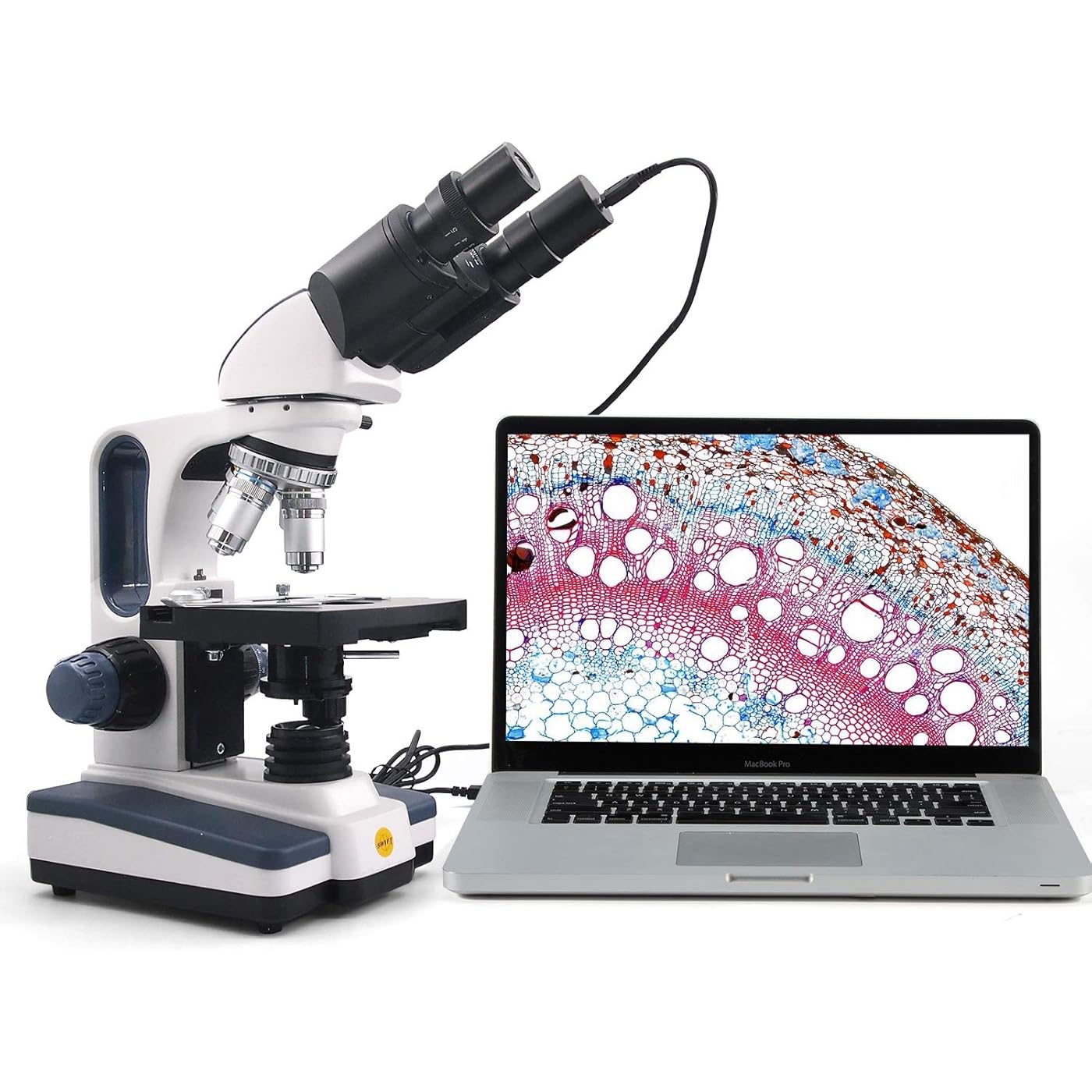

Swift Binocular Compound Microscope SW350B, 40X-2500X Magnification,Siedentopf Head,Research-Grade,Two-Layer Mechanical Stage,1.3mp Camera and Software Windows and Mac Compatible

Features

• 4 DIN Achromatic objectives mounted in a revolving turret offer 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, 2500X
• Professional Siedentopf head is fully rotatable for shared use and equipped with interchangeable wide-field 10X and 25X glass eyepieces fixed at an ergonomic 30 degree tilt to reduce neck strain, easily adjustable for different interpupillary distances without losing focus
• The brilliant LED bulb transmits light through an Abbe condenser, illuminating slide specimens from below with adjustable brightness; the large surface area of the double-layered mechanical plate and secure slide holder optimize slides for viewing
• Binocular head accepts additional eyepiece and microscope camera attachments in order to view, livestream, record, and capture magnified specimen images. A powerful multi-purpose compound microscope for viewing tiny details of specimen slides; excellent for clinicians, high school and university science students, and enthusiastic hobbyists alike
• 1.3MP camera comes with user-friendly editing and processing software for Mac OS X /Windows Vista, 7, 8, 10 (32 and 64 bit) offers advanced features including stitching, EDF and measurement.

Description

Features a Siedentopf binocular head that rotates 360 degrees for easy shared use and allows for quick adjustments to the eyepieces for different interpupillary distances without losing focus. The swiveling head can also lock in any position for additional stability. Ocular tubes are tilted at an ergonomic 30 degrees to reduce neck and eye strain. The microscope comes with two interchangeable widefield 10X and 25X glass ocular eyepieces, which pair with the four achromatic DIN objectives -- 4X, 10X, 40X(Spring), and 100X(Spring, Oil) -- in the rotating nosepiece to provide 6 magnification levels between 40X and 2500X. Coarse and fine focusing dials on both sides of the metal arm make fluid and exact precision adjustments. For specimen viewing, an LED bulb beneath the stage transmits light up through an industry-standard Abbe condenser with 1.25 aperture and an iris diaphragm. Manually move the condenser closer to or farther from the stage to adjust brightness and evenness of light as well as image contrast. A metal slide holder locks specimens into place for viewing on the sizeable double-layered mechanical stage. An x-y translational control knob moves the stage and the slide holder left-to-right and front-to-back, eliminating the need to re-clip slides in order to view the entire specimen. The SW350B has a compact but solid body that is nonetheless easily portable with the built-in arm handle. What can you see with it? Compound microscopes offer detailed, cellular-level views of transparent or dyed specimens prepared and mounted on a slide. (For magnifying solid objects, use a stereo microscope.) Easy to use camera Slide the camera mount directly into your microscope's eyepiece tube (fits 23.2mm eyepieces) Connect the USB cord to your computer's USB 2.0 port Begin streaming live videos or taking still pictures in full color Global leader in the production of quality microscopes for over 95 years. Trusted by educators, researchers and clinicians worldwide. A leader in the design and production of high-quality optics for microscopes, SWIFT has been manufacturing premium yet affordable microscopes since 1926. Through innovative design and quality craftsmanship, SWIFT offers a full range of professional microscopes for adults and students, laboratories and schools. We strive for perfection, and are always committed to developing better optics system. The microscope specialists at SWIFT have extensive experience in solving microscope problems and customizing solutions. Research-Grade Lab Compound Trinocular Microscopes Research-Grade Lab Compound Binocular Microscopes

Light Source Type: LED

Model Name: SW350B

Material: Metal

Color: Black, Silver, White

Real Angle of View: 30 degrees

Magnification Maximum: 2500 x

Item Weight: 4.6 kg

Voltage: 240 volts

Brand: SWIFT

Compatible Devices: Laptop

Model Name: SW350B

Brand: SWIFT

Unit Count: 1 Count

UPC: 345932236081

Manufacturer: NJEDU

Manufacturer Part Number: SW350B-EP1

Light Source Type: LED

Real Angle Of View: 30 degrees

Magnification Maximum: 2500 x

Voltage: 240 volts

Compatible Devices: Laptop

Objective Lens Description: Achromatic

Power Source: Corded Electric

Item Weight: 4.6 kg

Enclosure Material: Metal

Color: Black, Silver, White
