At a glance
- Condition
- New
- Model
- GDZ-80F-2.2
- Weight
- 9.1 lb
- Material
- Aluminum, Stainless Steel
- Voltage
- 220 volts
- Horsepower
- 2.2 KW
Features 5

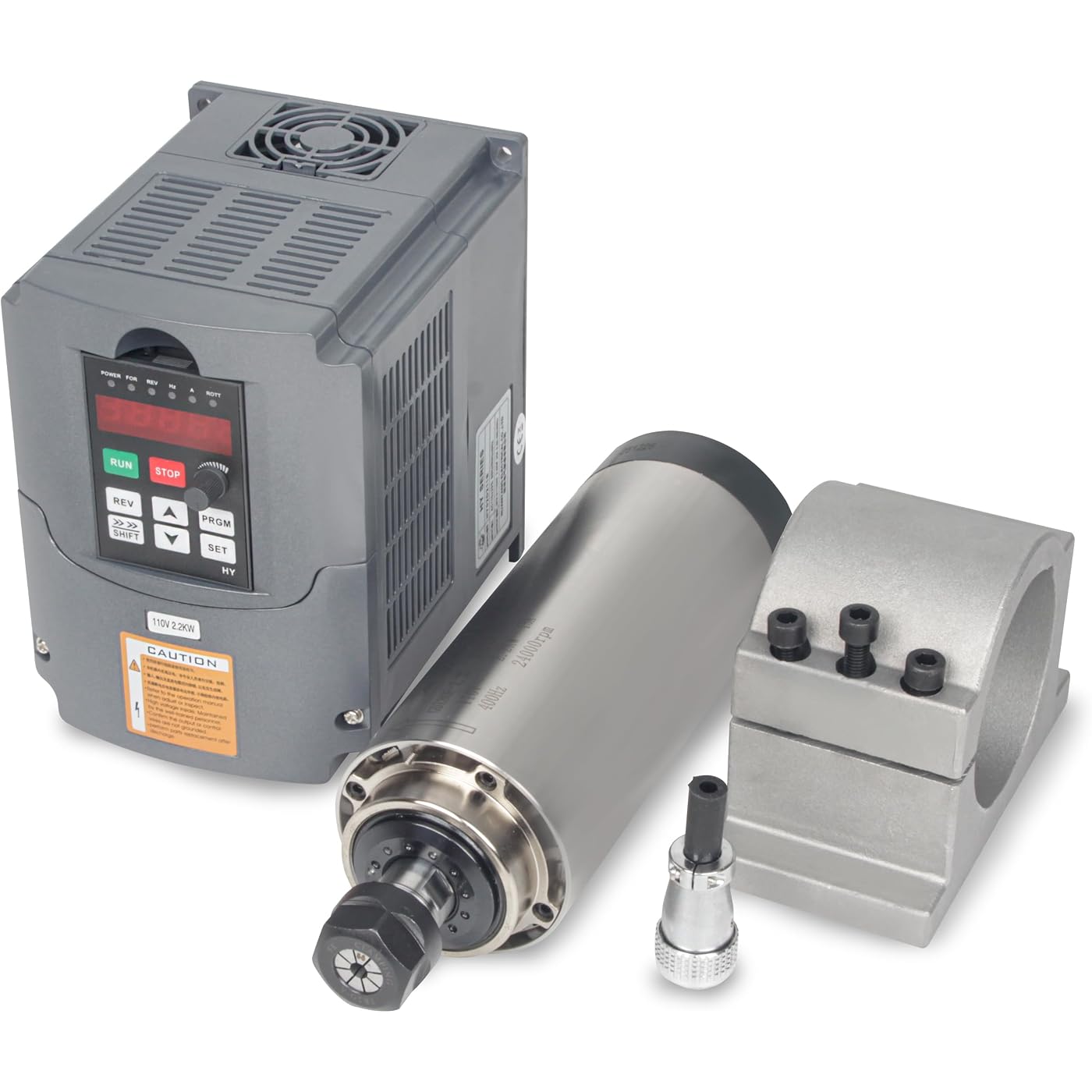

- Package Include: 1 x 2.2KW 220V Air Cooled Spindle Motor + 1 x 2.2KW VFD 220V + 1 x 80mm Spindle Motor Mount(with 3pcs screws)
- 2.2KW Spindle Motor: 1This is a 220V-2.2KW air-cooled 8A 80x195mm spindle motor come with a ER20 nut and collet. Frequency is 400HZ, 0.005 accuracy and runout off is Less than 0.01mm. 2Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle motor only can rotate clockwise but not counterclockwise.
- 2.2KW VFD ParametersControl Model: SPWN. Power: 2.2KW. Input:1 or 3 phase 220V 0-50Hz/60Hz. Output:3 phase 220V 0-400Hz. Communication Control: RS-485. Vibration: below 0.5G. Five-Digits Display and Status Indicator Lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect.
- How to Connect Spindle Motor and VFDThe spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with VFD's port U, V, W. Number 4 is the ground wire, no wiring is required.
- 80mm Spindle Motor MountMaterial is aluminum,surface sandblasted. Compared with the aluminium profile fixture,the accuracy is much eavier, much higher, and it is hard to deform. Fit for CNC 80mm diameter spindle motor.
Description
Wiring Cast and pressed aluminum parts Anti-slip silk design Sandblasting surface treatment About Us RATTMMTOR was born for CNC machinery manufacturing. Linear motion acutators are our strengths. We have a wide variety of spindle motors. Our metal chucks have excellent quality. Through the mini cnc machine we have realized the freedom of engraving for DIY enthusiasts. RATTMMOTOR's survival purpose is not only to provide customers with a wide variety of high-quality products, but also to provide our customers with high-quality services.
Specs 13
| Brand | RATTMMOTOR |
|---|---|
| Speed | 24000 |
| Voltage | 220 volts |
| Horsepower | 2.2 KW |
| Material | Aluminum, Stainless Steel |
| Brand Name | RATTMMOTOR |
| Manufacturer | Chang Sheng |
| UPC | 651312401100 |
| Item Highlight | Spindle and VFD Kit,Single to 3 Phase Variable Frequency Drive+80mm Spindle Motor Clamp for CNC Router Machine |
| Part Number | GDZ-80F-2.2 |
| Wattage | 2.2 KW |
| Item Weight | 9.1 pounds |
| Material Type | Aluminum, Stainless Steel |
No specs match.
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Thursday, Nov 5
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- Zip Pay in 4
- Financing through Apple Pay
- Financing through Google Pay
Learn more about financing & leasing here.
Similar Products
$22/mo*
Kreg Pocket-Hole Jig 720PRO, Woodworking Jig, KPHJ720PRO
$20/mo*
Festool 577257 Standard Cleaning Set RS-ST D 27/36-Plus
Top Amazon Reviews
Easy to set up and get running.
They had easy instructions to follow along with in setting up drive and spindle. Runs with ease and have never had any issues in 12 months.
Reviewed in the United States on November 10, 2024 by Robert Y.
This is a very good VFD and spindle
I have been running these for over two years, I use them nearly every day
Reviewed in the United States on February 19, 2023 by Jill M Corlew
No grounding in the spindle. Low to medium quality.
First impressions out of the box. 1. The packaging leaves a lot to be desired. There was almost enough padding to keep the components from getting damaged. The boxes were all in bad shape and things were sliding around in the main box which beat things up pretty badly. The VFD and spindle were ok though. 2. LOTS of cosmoline. Be ready with a clean rag and lots of patience to get the spindle clean enough to handle. Until then the rust preventative goo make it like a Water Weenie to hold on to. 3. They're not kidding about the ground terminal. They say it's not required. But the VFD book says to connect it at both ends. I'd hate to have a 220V conversation between one leg shorted to the body and myself. I'll be figuring something out to ensure low RFI and, more importantly, safety of operation. If you're not competent with wiring things in 220V and want a SAFE solution, best to pass on this one. 3. The VFD is a Hyunyang HY02D223B. 4. The spindle cooling fan is just a piece of molded plastic and it wobbles pretty bad. I am not sure if it will be an issue or not. It doesn't contact anything during rotation, but we'll see of it causes vibration issues when I get this up and running. 5. There are no instructions apart from the VFD book. Not even a QR code for an online manual. I loathe online manuals, but that would at least be something. 6. The spindle mount is ok looking. My application won't need it, but it looks like cast aluminum, which can be good, or not good at all. They call it "pot metal" because it's only usually good for making cooking pots. If there's any vibration at all in operation (it's a milling spindle, so there will be) pot metal will fatigue and crack faster than your prom date left with another guy. If I needed this mount, I would most assuredly find one made of extrusion or billet. Final thoughts: I will not be buying from RATTMOTOR again. This spindle is on the verge of being almost ok. It's not something I think a person could just bolt on and run with.
...
show more
Reviewed in the United States on August 9, 2025 by SB_IT
Good value
I used this motor for my CNC machine. There was a problem, but the seller handled it quickly and fully.
Reviewed in the United States on February 1, 2021 by Tommy Prophet
