Knape & Vogt 24 in. H x 3 in. W x 13 in. D Steel Appliance Lift Cabinet Organizer, Plain

Features

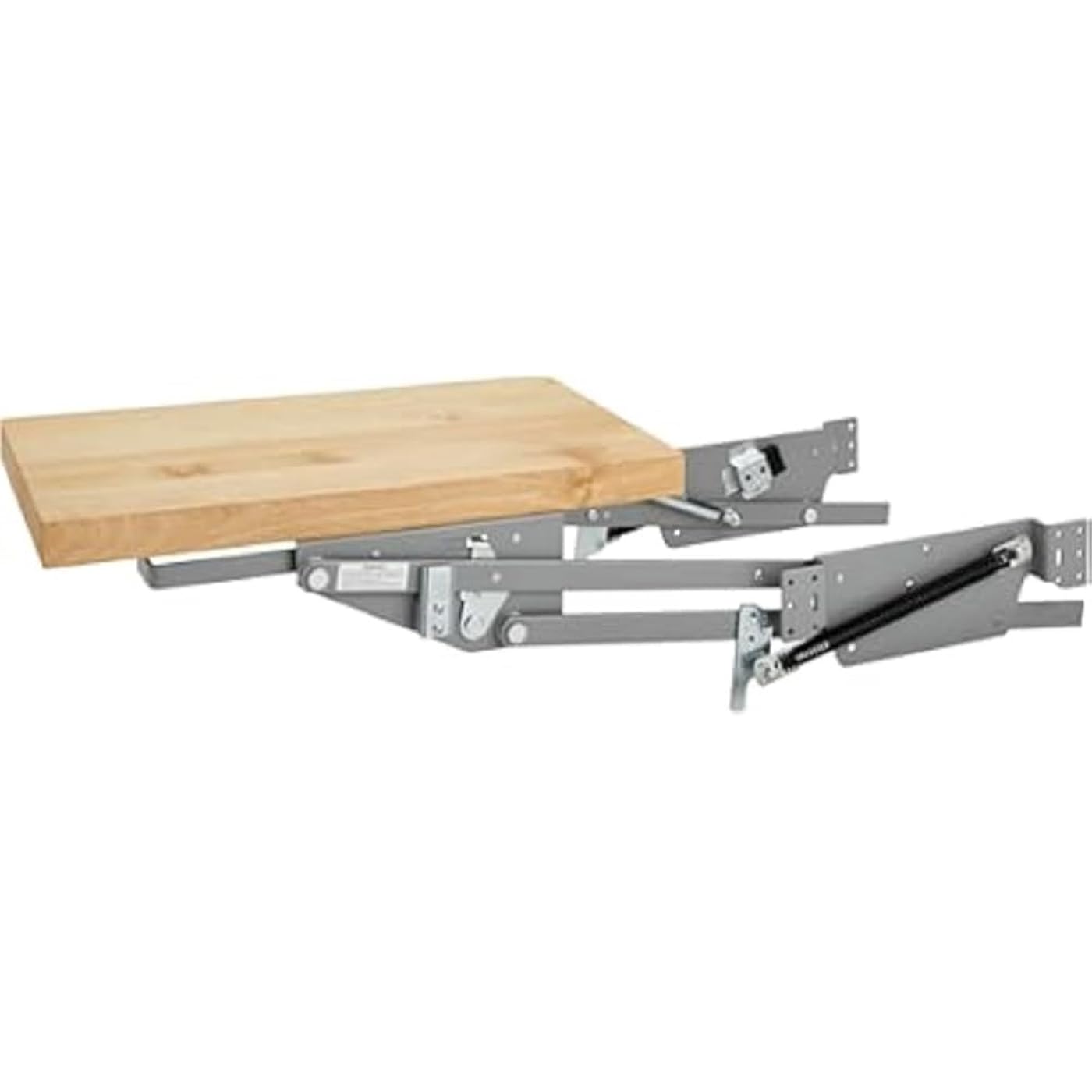

• Hardware mechanism for Knape & Vogt Appliance Lift
• Kitchen appliances raise effortlessly with a gas cylinder assist, and then lock securely into place
• Can be outfitted with a custom block platform or a quality Knape & Vogt pre-made maple wood platform
• Lift can be positioned at two different levels: flush with counter or 2 in. below counter
• Appliance Lift Platform sold separately

Description

cylinder assisted mechanism easily helps raise and lower kitchen appliance.Color is Platinum

Brand: Knape & Vogt

Color: Plain

Material: Alloy Steel

Recommended Uses For Product: Kitchen

Product Dimensions: 13"D x 3"W x 24"H

Brand Name: Knape & Vogt

Recommended Uses For Product: Kitchen

Additional Features: Kitchen appliances raise effortlessly with a gas cylinder assist, and then lock securely into place

Room Type: Kitchen

Included Components: Steel Appliance Lift Cabinet Organizer

Number Of Shelves: 1

Model Number: HAL-20

Unit Count: 1 Count

Set Name: HAL-20

Number of Items: 1

Model Name: 24 in. H x 3 in. W x 13 in. D Steel Appliance Lift Cabinet Organizer

UPC: 029274242367

Manufacturer: Knape & Vogt

Item Type Name: 24 in. H x 3 in. W x 13 in. D Steel Appliance Lift Cabinet Organizer

Manufacturer Part Number: HAL-20

Item Dimensions D x W x H: 13"D x 3"W x 24"H

Size: 24 inches (H) x 3 inches (W) x 13 inches (D)

Item Weight: 13 pounds

Ground To Item Distance: 13 inches

Item Depth: 13 inches

Item Dimensions: 13 x 3 x 24 inches

Mounting Type: Floor Mount

Weight Capacity Maximum: 30 pounds

Number of Doors: 2

Number of Pieces: 1

Base Type: Legs

Number of Compartments: 1

Number of Levels: 2

Storage Options: Appliance Lift

Number of Shelves: 1

Color: Plain

Style Name: Modern

Door Style: Flat Panel

Finish Types: Steel

Shape: Rectangular

Hardware Color: Platinum

Material Type: Alloy Steel

Top Material Type: Steel

Handle Material: Alloy Steel

Back Material Type: Wood

Frame Material Type: Alloy Steel

Product Care Instructions: Wipe with Damp Cloth

Installation Type: Freestanding

Assembly Instructions Description: Step 1) Inspect all parts and read all instructions prior to beginning assembly and installation. Step 2) Place left half of the mechanism along the inner cabinet wall (Figure 1), with the front edge of mechanism 1/2" from the edge of cabinet opening or face frame and the top edge of mechanism 1/2" below cabinet opening. Mark each of the 6 hole locations with a pencil. Note Face frame style cabinets may require the installation of wood support blocks behind the face frame to allow the secure attachment of the lift arms to the side of the cabinet. Step 3) Using the 1/16" drill bit, drill pilot holes for inserting the mounting screws in the marked locations. Fasten the lift arm mechanism in place by using 6 of the #8 x 1/2" Phillips truss head screws, starting with hole location #1 and continuing through to #4 (Figure 2). Then lower the arm to access and fasten #5 & #6 hole locations. Step 4 Repeat steps 2 and 3 for the right half of the mechanism, making sure the location of both lift arms brackets are level and parallel with each other. Step 5) Raise both mechanisms to the open position. Using either the optional maple platform or a custom platform, center platform on mounting brackets and attach using 10 screws (Figure 3). Step 6) Lift up on release levers (Figure 4) and lower appliance lift into the cabinet, checking for proper fit and clearance. Optional To adjust for open position height, you may move both (left and right) adjustment pins to one of two hole positions (Figure 5). With the stock platform, the top pin position places the platform at approximate countertop level. The other position places the platform 2" below the countertop. NOTE Platform not included, maximum load rating is 30 lbs.
