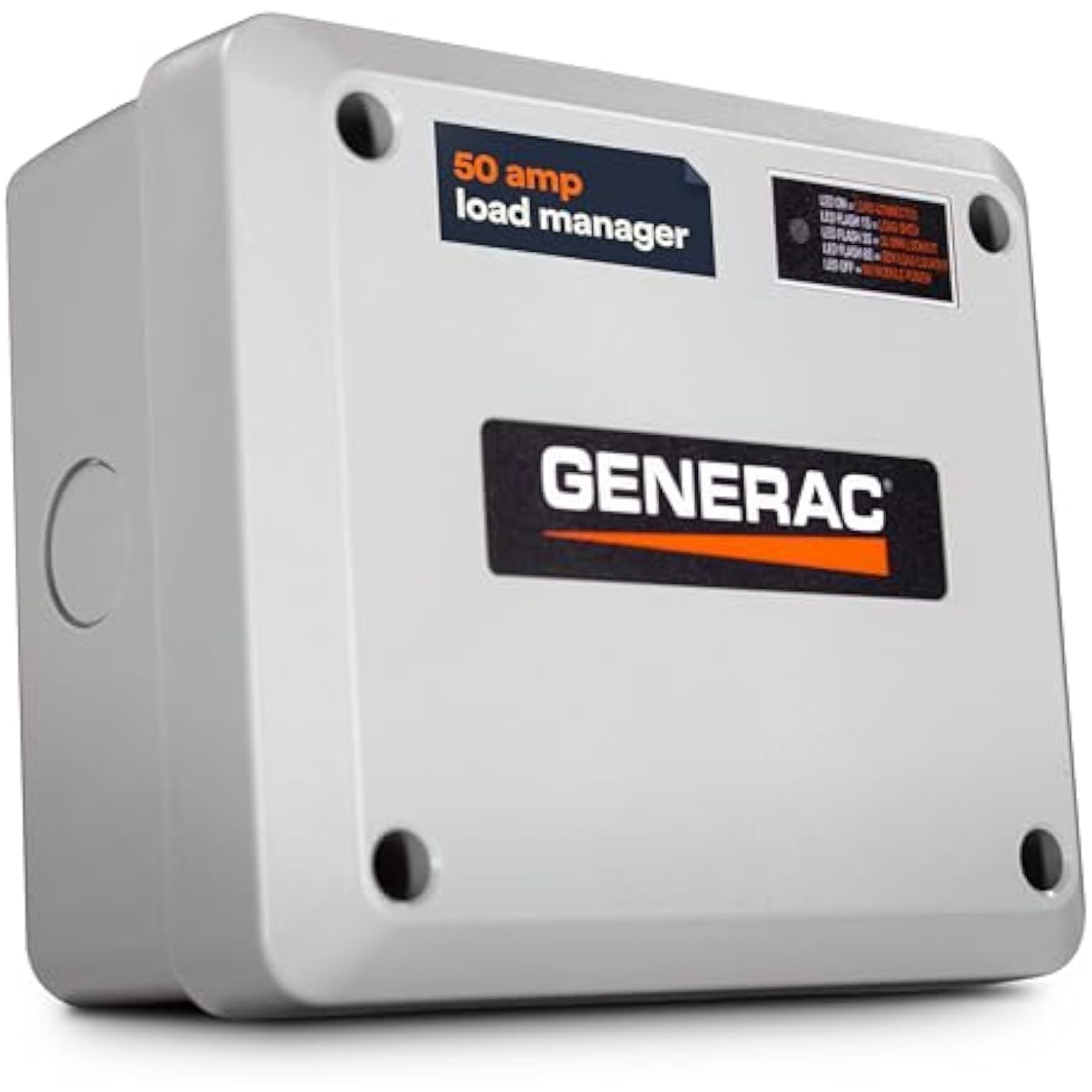

Generac 7,000 50 Amp Load Manager, Gray

Features

• UNIVERSAL STANDBY GENERATOR COMPATIBILITY: Works with any single-phase 240V home standby generator or PWRcell energy storage system not limited to Generac brands managing loads up to 50 resistive amps or 40 inductive amps
• SCALE UP TO 8 MODULES PER SYSTEM: Install up to eight individual 50A Load Managers on a single generator system, each assigned a unique priority, to protect and sequence multiple large appliances simultaneously without overloading
• NO CONTROL WIRES REQUIRED FOR OPERATION: Built-in frequency-sensing intelligence lets each module operate autonomously no low-voltage control wires back to the transfer switch needed, reducing installation complexity and cost
• NEMA 3R ENCLOSURE FOR INDOOR OR OUTDOOR USE: Rated to withstand rain, sleet, and ice formation on the enclosure, this module can be mounted near the electrical panel or appliance in virtually any location indoors or outdoors
• 8-LEVEL PRIORITY DIAL CONTROLS LOAD SEQUENCING: Set each module to a unique priority from 1 (first restored) to 8 (last restored) lower numbers reconnect first after a shed event; each load must have its own number to avoid sequencing conflicts
• GENERATOR LOCKOUT BLOCKS NON-ESSENTIAL LOADS AUTOMATICALLY: Set any module to lockout mode to prevent that appliance from running under generator power; when utility power returns, the load restores automatically without manual intervention
• EXTERNAL LED STATUS DISPLAY FOR REAL-TIME DIAGNOSTICS: Five coded LED states including load connected, load shed, 30-minute lockout, generator lockout, and no module power let you diagnose system status without opening the electrical enclosure
• WHAT'S INCLUDED AND WIRING REQUIREMENTS: Includes module, mounting hardware, and owner's manual; requires 8 AWG copper conductors rated for 50A; must be installed upstream of the appliance's circuit breaker by a qualified electrician

Description

The Generac 50A Load Manager (Model 7000) is a Smart Management Module designed to protect your standby generator or energy storage system from overload by automatically shedding and restoring large electrical loads in a controlled sequence. It works with any single-phase 240V home standby generator — not just Generac — and requires no external controller or low- voltage control wires to operate. How it works. Each module continuously monitors grid frequency (Hz). When your generator is under strain and frequency begins to drop, the module detects the change and immediately sheds its assigned load, giving the generator the headroom it needs to recover. Once the system stabilizes, the module restores the load based on its assigned priority — lower priority numbers reconnect first, then higher numbers follow at timed intervals ranging from 5 to 6 minutes plus up to 45 seconds per step. Setting priorities. The internal priority dial lets you assign each module a unique number from 1 to 8. No two modules should share the same number — duplicate settings can cause undefined sequencing behavior. For loads that should never run during a generator event (pool pumps, hot tubs, non-essential circuits), set the module to lockout-only mode. When utility power returns, all locked-out loads restore automatically. Built for real installation environments. The NEMA 3R enclosure handles rain, sleet, and ice formation outdoors, giving you flexible mounting options near the electrical panel or directly at the appliance. Wiring requires 8 AWG copper conductors for a 50A circuit. Install the module upstream of the appliance's local circuit breaker. Due to the 240V wiring involved, installation by a licensed electrician is strongly recommended. Scales with your system. Up to eight 50A Load Managers can be deployed on a single generator system. A companion 100A module (Model 7006) is available for larger loads. Five coded external LED states allow real-time status monitoring without opening the enclosure.

Brand: Generac

Fuel Type: No Fuel

Power Source: Manual

Recommended Uses For Product: Residential

Item Weight: 2.1 pounds

Voltage: 240 volts_of_alternating_current

Special Feature: LED Indicator

Included Components: Generac 7000 50 Amp Smart Management Module, Gray

Color: Gray

Product Dimensions: 3.7"L x 7.06"W x 6.17"H

Fuel Type: No Fuel

Power Source: Manual

Recommended Uses For Product: Residential

Voltage: 240 volts_of_alternating_current

Additional Features: LED Indicator

Engine Type: 4 Stroke

Ignition System Type: Electronic

Engine Displacement: 418 cubic centimeters

Total Power Outlets: 1

Current Rating: 50 A

Frequency: 50 hertz

Runtime: 50 minutes

Item Weight: 2.1 pounds

Item Dimensions L x W x H: 3.7"L x 7.06"W x 6.17"H

Color: Gray

Brand Name: Generac

Included Components: Generac 7000 50 Amp Smart Management Module, Gray

Model Name: 50 Amp Smart Management Module

Model Number: 7000

Item Highlight: Efficient Load Prioritization, Wire-Free Technology, Lock-Feature and LED Status Display, Reliable Power Management

Number of Items: 1

UPC: 696471070002

Unit Count: 1 Count

Manufacturer: Generac Power Systems, Inc

Item Type Name: Management Module

Manufacturer Part Number: 7000

Warranty Description: 3-Year Warranty
