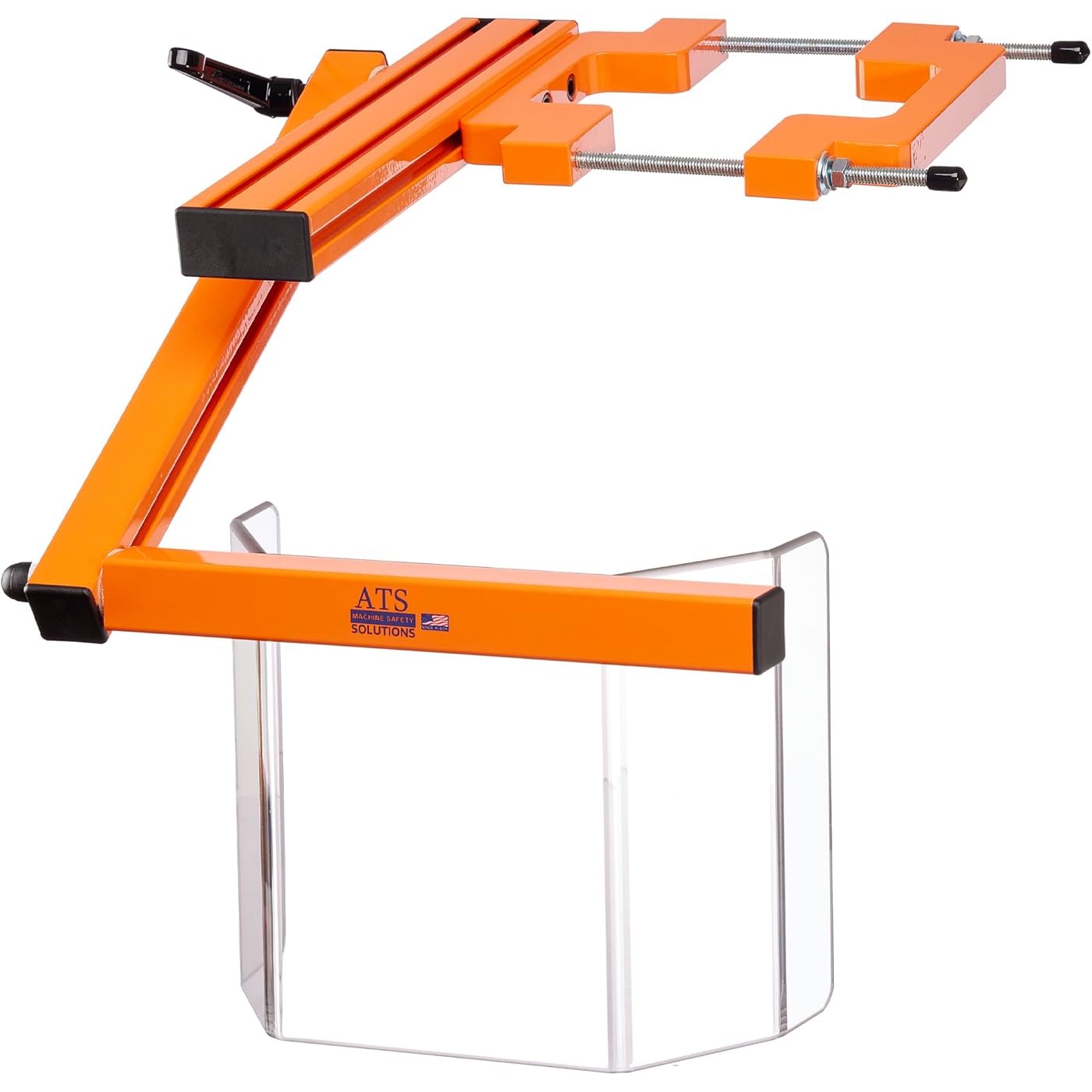

ATS Heavy- Duty Drill Press Guard | OSHA Compliant Safety Shield for 4.0" to 6.5" Large Round Columns | Billet Aluminum & Lexan | Made in USA | DPG-ES2

Features

• Shields operators from flying chips, coolant, and spindle contact on large floor drills: Fits drill presses with 4.0 to 6.5 inch round columns. Addresses OSHA 29 CFR 1910.212 machine guarding for industrial environments.
• Bolt-on installation with no permanent modification to your machine: 6061 billet aluminum column clamp wraps the existing round column and locks with supplied hardware. Fully reversible installation preserves your equipment integrity.
• 6061 aluminum frame with PPG OSHA Safety Orange powder coat built for production: 30mm T-slot extrusion resists corrosion from cutting oils, coolant mist, and daily wear. Will not warp or degrade under continuous shop vibration.
• Lexan shield adjusts to any height and flips fully open for bit changes: 1/4 inch Lexan polycarbonate moves in, out, up, and down on slotted extrusion. Designed to clear the gear rack on most floor model drill presses. Round columns only.
• Backed by a 1-year warranty, and only the Lexan shield ever needs replacing: The 6061 aluminum frame is a one-time purchase built to outlast your drill press. Replacement shields stocked separately. For columns under 4.0 inches, see DPG-ES1.

Description

Drill Press Guard - Econ-Series LARGE- This drill press chuck guard features the same durability and adjustability we are known for, including our safety orange powder coat. Works on large drill presses. Fits column diameters from 4.0 - 6.5" and throat distance of 10-16" . See fitment guide photo. 6061 T-Slotted aluminum column clamp provides a bolt-on installation - no drilling! Installs in 5 minutes or less. T-Slotted aluminum extrusion allows adjustment in/out and up/down to clear different work setups and table heights. Steel adjustable lever for easy re-positioning. Shield flips upward 180 degrees for part/ drill bit change. Powder coated PPG's "OSHA Safety Orange".1/4" thick lexan (polycarbonate) shield.

Brand: ATS Machine Safety Solutions

Power Source: Corded Electric

Maximum Rotational Speed: 1 RPM

Maximum Chuck Size: 6.5 Inches

Color: Orange

Brand: ‎ATS Machine Safety Solutions

Power Source: ‎Corded Electric

Maximum Rotational Speed: ‎1 RPM

Maximum Chuck Size: ‎6.5 Inches

Color: ‎Orange

Included Components: ‎Shield, Billet Aluminum Column Clamp

Special Feature: ‎Modular Design, Quick Install

Material: ‎Aluminum, Polycarbonate

Item Weight: ‎8 Pounds

Drill Type: ‎Drill Press

Is Electric: ‎No

Drilling Capacity Wood: ‎16 Inches

Manufacturer: ‎ATS Machine Safety Solutions

Drilling Capacity Metal: ‎15 Inches

Part Number: ‎DPG-ES2

Item Weight: ‎8 pounds

Product Dimensions: ‎17 x 17 x 2 inches

Item model number: ‎0f003613-4c93-408b-9132-ac58969ffdcc

Size: ‎4.0" - 6.5" Column Diameter

Special Features: ‎Modular Design, Quick Install

Batteries Included?: ‎No

Batteries Required?: ‎No

Warranty Description: ‎1 Year Manufacturer

Date First Available: March 23, 2020
