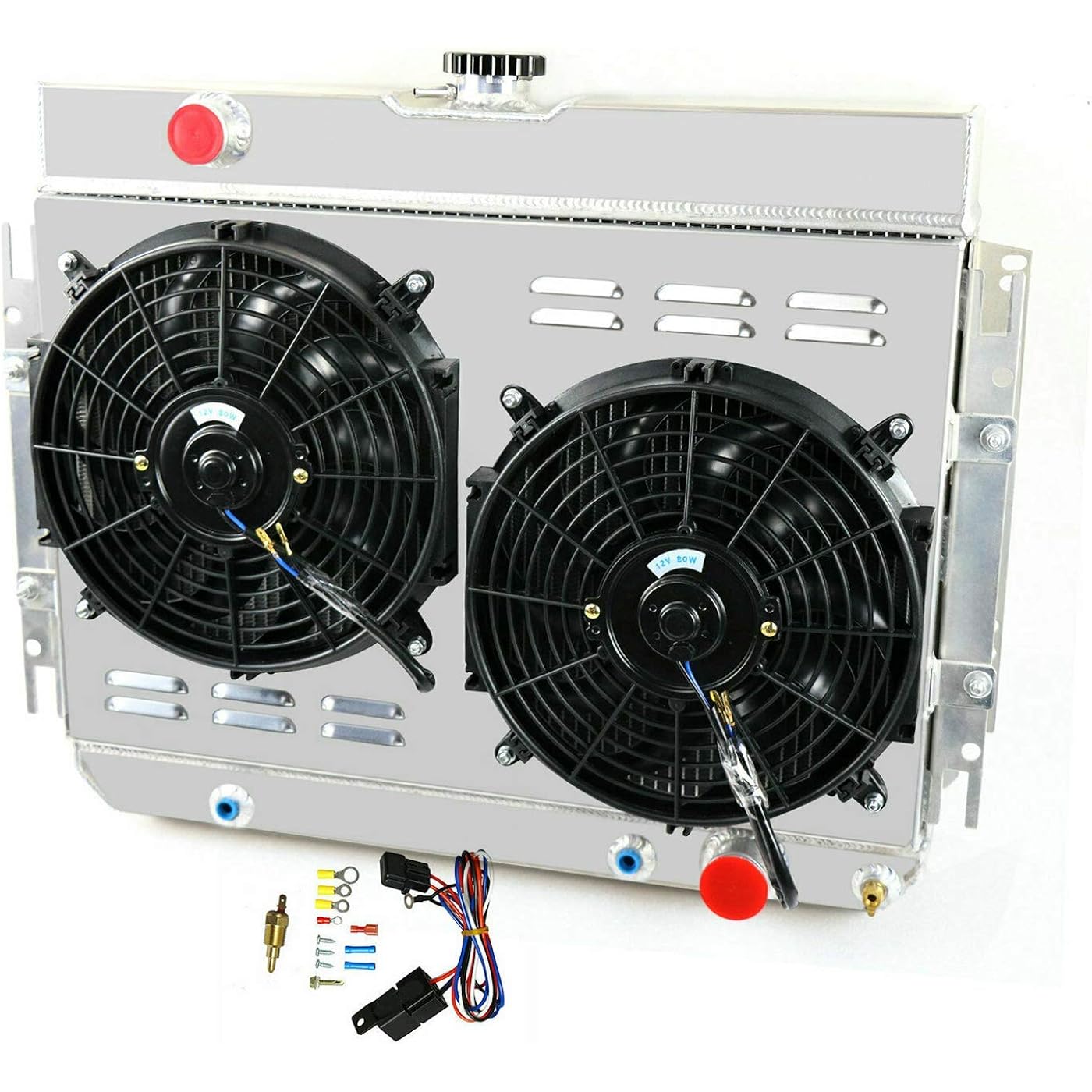

Chevy Impala Radiator, Chevy Bel Air Radiator, Chevy Biscayne Radiator, Aluminum Radiator for 1959-1968 Chevy Impala/Bel Air/Chevelle/Caprice/Biscayne, 3 Row Radiator + Shroud/Fan + Relay Kit
Buy Now, Pay Later
- – 6-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
At a glance
- Condition
- New
- Model
- BEI-COOLCARE-0948
- Weight
- 0.01 oz
- Exterior
- Polshed
- OEM Part Number
- CU281, CU289
- Position
- Front Center
- Special Features
- 12 months warranty
Features 10
- Core Size: 24.7'' x 16'' x 1.73'' ; Overall Size: 21.9'' x 28'' x 3.8''; High performance 3 row cores
- Inlet/Outlet Diameter (Inch):1.5 / 1.75 ; Inlet/Outlet at: driver / passenger side ; Internal transmission oil cooler thread size: G1/4 (Z)
- Leak/durability tested; No drilling or modifications needed for installation
- Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
- High density serpentine fins deliver optimum airflow across core tubes for better cooling
- Buy with no worry-12 months warranty
- Full aviation-aluminum craftsmanship 100% welded by TIG
- Factory sized cooling hose inlet and outlet connections
- OEM style brass petcock drain included
- Higher capacity for coolant than original radiator
Description
This Radiator Compatible with: Chevy Bel Air, 1963-1968 Chevy Biscayne, 1963-1968 Chevy Caprice, 1967-1968 Chevy Chevelle, 1964-1965 Chevy El Camino, 1959-1960, 1964-1965 Chevy Impala, 1963-1968 Chevy Kingswood, 1959-1961 OE / Part : CC289 CU289 DPI289 289 SBR289 KKS289 Pls double check OEM radiator core/overall size & inlet/outlet location before ordering PLS use AmazonConfirmedFit to check whether this radiator fit your vehicle before order. Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 12" Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question!
Specs 11
| Manufacturer | Cooling Care |
|---|---|
| Brand | Cooling Care |
| Model | Chevy Bel Air Radiator |
| Item Weight | 0.01 ounces |
| Package Dimensions | 30 x 24.5 x 8.3 inches |
| Item model number | Chevy Impala Radiator |
| Exterior | Polshed |
| Manufacturer Part Number | BEI-COOLCARE-0948 |
| OEM Part Number | CU281, CU289 |
| Position | Front Center |
| Special Features | 12 months warranty |
No specs match.
