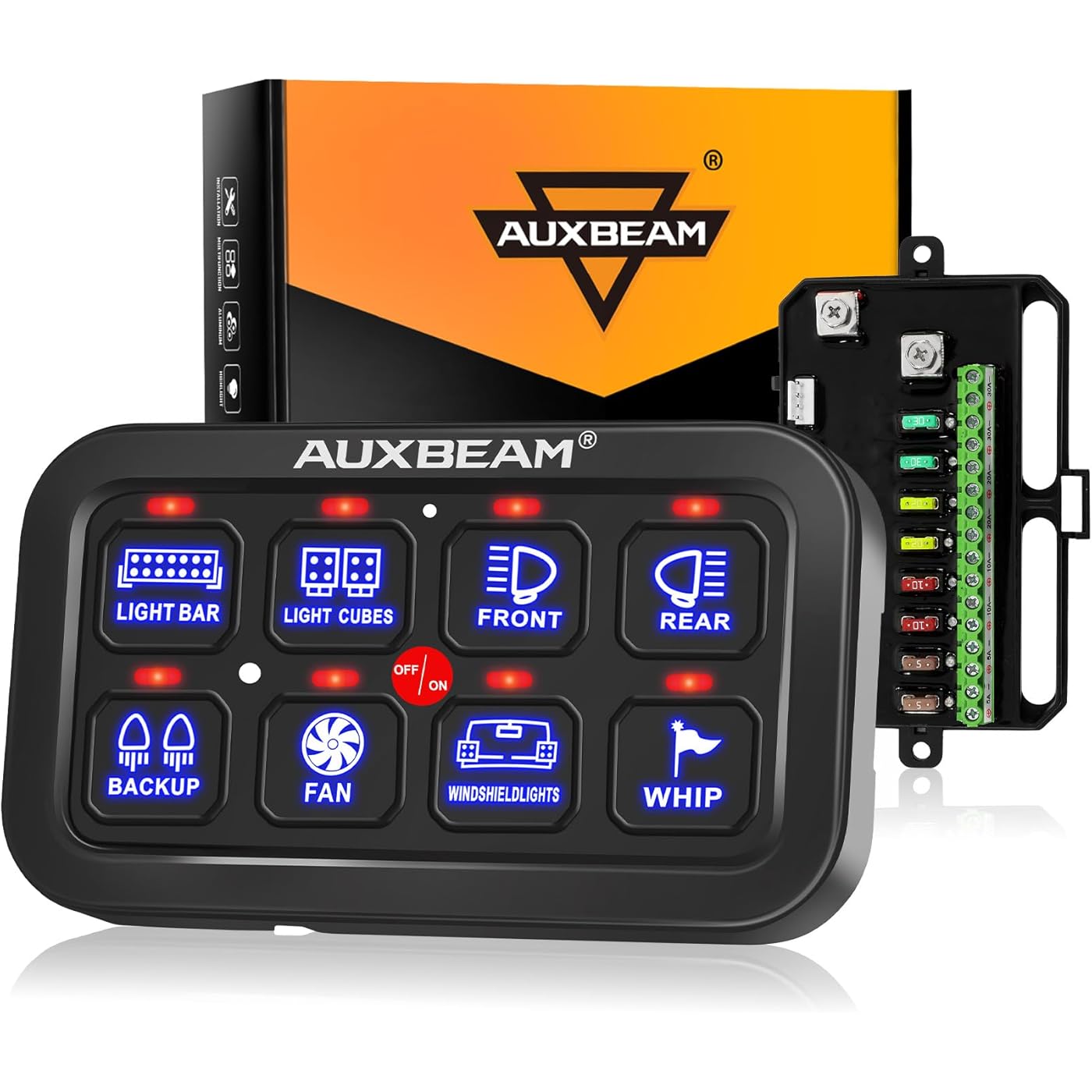

Auxbeam 8 Gang Switch Panel BA80 Universal Circuit Control Relay System

Features

• Technical Specification: Operating voltage: DC 12-24V, max current: 60A, rated voltage: 12V 20A / 24V 10A; operating at 12 Volts: max power rating of 600W, operating at 24 Volts: max power rating of 1200W; operating temperature: -40F - 221F, IP65 waterproof rate, with high sensitivity, stability and strong anti-interference ability.
• Automatic Dimmable Function: Newest 8 gang switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment is, the brighter the backlight will be. The perfect 8 gang switch panel automatic dimmable designed, giving you a different user experience and ensuring your driving safety
• Safety Protection: Our this 8 gang switch panel is built-in solid state relay, not the external relay, provide over-voltage protection, reverse polarity protection, over-current protection, thermal protection, come with additional fuses for replacement, providing all your connected LED lights & accessories work safely.
• Easy Installation: No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensuring you to connect the led lights or accessories easily. Two types of mounting bracket, you can install it anywhere you need. You can customize your personal switch panel with 60pcs self-adhesive labels. The best way to clean up all the wiring and add a single panel to control everything.
• Wide Application & Warranty: Taking limited space on some vehicles into account, this more compact size switch panel control system is perfect for all situations. Auxbeam 8 In 1 touch screen panel more suitable for your needs, such as truck, boat, off road, powersport, marine, atv, utv, suv, car, bus, heavy duty etc. 3 Years Manufacturer Warranty: free replacement for any quality problems by non-human reasons.

Description

Auxbeam LED Switch Panel Control your world with Auxbeam, power at your fingertips. We have been committed to producing and manufacturing products that meet customer needs, to relieve customers' worries and facilitate their daily lives. Our Car Switch Panels, allows you to control up to 6-12 different auxiliary LED lights or electrical devices at the same time, reducing the trouble of multiple wiring or more switch equipment. Install the two positive wires of the two work lights into the same "+" hole of the circuit control box at the same time, and also the negative poles, then you can achieve synchronization. 1. Connect the red ACC Fuse to the fuse adapter. 2. Open the ACC gear and check whether the ACC fuse in the car is powered. 3. Take out the original car ACC Fuse, insert the fuse adapter, and then reinsert the entire fuse adapter into the original car ACC Fuse position. Because the ACC fuse is used to get power, when the car is powered off, the switch system will stop working, and your accessories will also stop working to ensure that the battery will not consume power. Please connect the red ACC wire directly to the battery to get power, then you can keep the switch panel powered on all the time. But this is not recommended because it will consume battery power. The ON/OFF button is mainly a memory function. The device in use can be fully closed and fully opened with one key through the middle button. After the car is parked and turned off, the memory function is still valid when the car is started the next day. The 4 PIN extension cable is 10 FT long. Not really, you still need to press the ON/OFF button to restored the accessories. This is designed to the battery can provide enough power to start the car. The 8 gang switch panel has built-in Solid State Relay, just connect the positive and negative wires of the electrical equipment to the 1-8 way wiring ports of the switch to use. Yes, there are 6/8 fuses in the relay box, and come with 6 extra. Get the extension wire for 8 gang switch panel from this ASIN: B093293RJ7 Get the more stickers for RA80 XL switch panel from this ASIN: B0C13FPNP1 BA80 8 Gang Switch Panel BB80 8 Gang Switch Panel BC60 6 Gang Switch Panel Model BA80 Model BB80 Model BC60 Backlit Light Blue Backlit Light Blue Backlit Light Blue Operating Voltage DC 12- 24V Operating Voltage DC 12- 24V Operating Voltage DC 12V Total Power 600~1200W Total Power 600~1200W Total Power 720W

Operation Mode: Manual

Current Rating: 60 A

Operating Voltage: 12 volts

Contact Type: Normally Closed

Connector Type: Plug In

Brand: Auxbeam

Switch Type: Touch Switch

Terminal: 4-pins

Material: Aluminum

Item dimensions L x W x H: 11.81 x 7.87 x 3.15 inches

Operation Mode: Manual

Current Rating: 60 A

Operating Voltage: 12 volts

Contact Type: Normally Closed

Connector Type: Plug In

Switch Type: Touch Switch

Terminal: 4-pins

Circuit Type: 8-way

Mounting Type: Panel Mount

Actuator Type: Touch

Number of Positions: 8

Upper Temperature Rating: 221 °F

Controller Type: Circuit Control

Control Method: Touch

Connectivity Protocol: Wired

Wattage: 600 watts

Compatible with Vehicle Type: Truck, Pickup, Boat, Off Road, Powersport, Marine, ATV, UTV, SUV, Car, Bus, Van

Control Type: Touch

Compatible Devices: 12V-24V Vehicles

Color: Blue

Item Dimensions: 11.81 x 7.87 x 3.15 inches

Unit Count: 1 Count

Number of Items: 1

Material Type: Aluminum

Contact Material: Aluminum

International Protection Rating: IP65

Specification Met: RoHS

Brand Name: Auxbeam

Model: BA80

Manufacturer: Auxbeam

Warranty Description: 3 Years Warranty

Included Components: Switch Panel,Circuit Control Box,Circuit Breaker,Stickers,Installation Kits

Item Weight: 2.1 kg

Part Number: QP002559
