ATS MG-2 Milling Machine Guard, Head Mount, Bridgeport Fit, Made in USA
Buy Now, Pay Later
- – Up to 36-month term if approved
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Color: No Interlock
Features

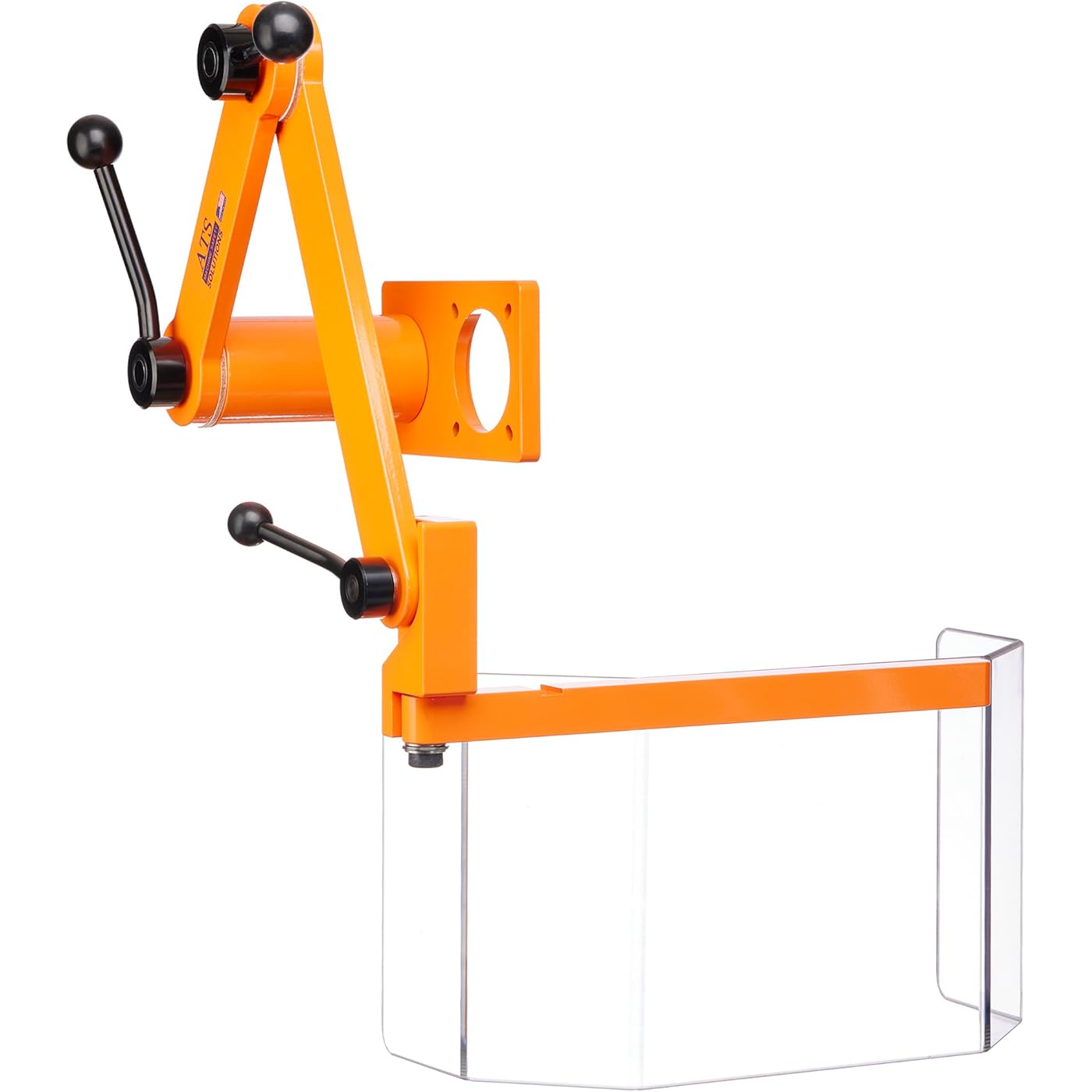

- Shields operators from hot chips, coolant, and rotating spindles on manual mills: Articulating arm positions the Lexan over the cutter and swings 180 degrees open for part access. Addresses OSHA 1910.212 milling machine guarding.
- Installs in 10 minutes using existing holes on your quill feed plate: Mounts to the four existing holes using longer hardware supplied with the guard. No drilling into the machine. Fully reversible with no permanent modification.
- 6061 billet aluminum frame with PPG OSHA Safety Orange powder coat: T-slot extrusion resists shop vibration, coolant, and chip buildup without losing adjustment. T-slot accepts work lights and coolant nozzle accessories.
- Fits Bridgeport Series I and most knee mills with 2.5 to 2.75 inch bolt patterns: Head mount stays stationary while the spindle moves. For 3.0 x 3.5 inch plates, see MG-2T. For ram-mount installation, see the MG-3.
- Backed by a 1-year warranty, and only the Lexan shield ever needs replacing: The 6061 aluminum frame is a permanent installation that outlasts the mill. Replacement Lexan shields stocked and affordable. Interlocked version MG-2-SK1 available.
Description
ATS Safety, MG-2, Head Mount Milling Machine Safety Guard to provide safe work conditions by protecting against hot chips and coolant swarf. Front arm swings open to the left 180 degrees for easy setup and work access, no drilling required, bolts to the quill feed selector on Bridgeport, Sharp, Jet, Trak, Prototrak DPM, HH Roberts, Clausing, Lagun, Webb, Supermax, Alliant and many other manual vertical milling machines, articulating arms allow operator to easily position the shield to fit different work-pieces or fixtures, heavy duty steel adjustable handles- pull out and orient 360 degrees, will not work if tilting the machine's head left and right (only front/back), includes curved lexan shield only.
Manufacturer: ATS Safety
Part Number: MG-2
Item Weight: 16.37 pounds
Product Dimensions: 17 x 17 x 17 inches
Color: No Interlock
Material: 6061 Aluminum, Polycarbonate
Item Package Quantity: 1
Date First Available: February 7, 2014
