5v40A200w Power Supply Universal Regulated Switching Ultra-Thin Converter Transformer Driver 110V/220V AC for programmable led Sign Lights String Pixel Light Computer CCTV Camera Security System Radio

Features

• Wide voltage adaptation, worry free use: Are you still worried about different voltages in different regions? This power supply supports dual input voltages of AC 110V-220V, which can be easily switched by simply turning the internal setting switch. The default voltage is 110V, so choose the appropriate voltage before use to avoid damage. The output is DC 5V 40A, with a maximum current of 40 amperes. The output voltage can also be adjusted within a 10% range from 4.5V to 5.5V, making it easy to adapt to various devices and safe to use anywhere
• Durable, stable and reliable: afraid of frequent power failures that may affect equipment use? It has an average time between failures (MTBF) of at least 50000 hours at full load in an ambient temperature of 25 C, providing you with long-term stable power support, reducing equipment downtime risks, and making your work and use smoother
• Four fold strong protection, stable and worry free equipment: It has four protection skills. Output short circuit, instantly cut off the output, solve the problem and restore immediately; Output current exceeding the set value by 105-138%, decisively shut down, eliminate the fault, and resume work; When the temperature reaches the set value, the output will automatically stop, and after cooling down, it will be resurrected with full blood; External factors trigger abnormalities, with a maximum output voltage of no more than 6.0V, providing comprehensive protection of equipment power facilities, allowing you to use electricity with peace of mind
• Professional grade power supply, fully applicable to all scenarios: unable to find the one that is suitable for multiple devices among numerous power supplies? This professional power supply is your ideal choice! Industrial automation, electronic equipment, programmable LED display screens, LED lighting, closed-circuit television, camera security systems, etc. are all easy to handle. Whether it is large equipment in factories or small appliances in homes, it can accurately meet the electricity needs of different scenarios and provide continuous and stable power supply

Description

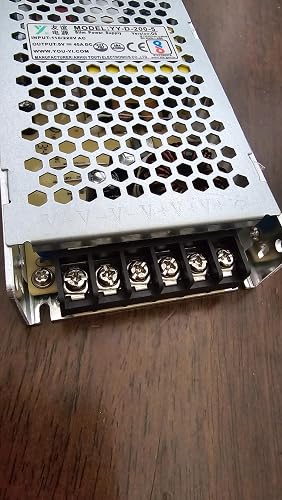

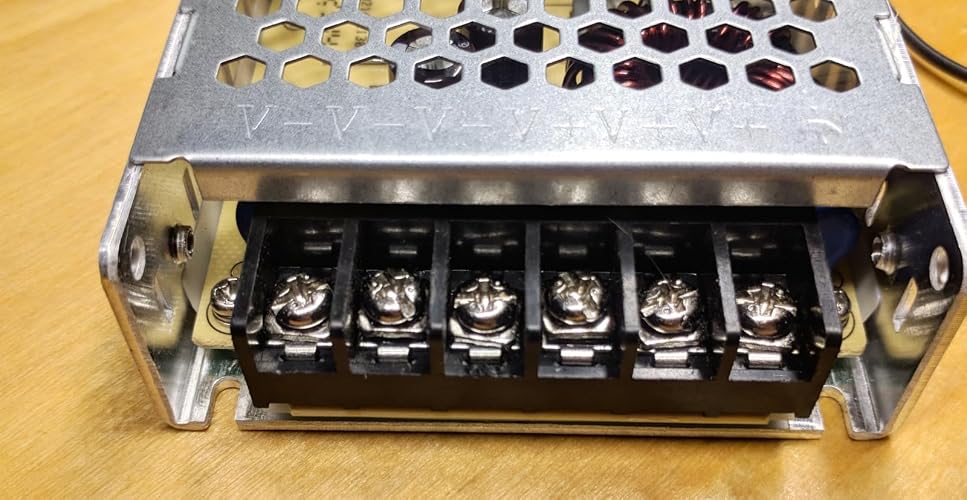

1.Output Short Circuit Protection：The power supply will stop working when the short circuit is triggered and it restart working after solving problem. 2.Output Over Load Protection:The power supply will stop working when the output current is more than 105～138% of rated current and it will restart working after solving problem. 3.Over Temperature Protection:The power supply will stop working when the temperature above the set value and it will restart working after solving problem. 4.Output Over Voltage Protection:The output will not exceed 6.0V when external factors trigger malfunction of output. That can avoid the damage to the loader of the power supply. The above picture is a top view of the product, with wiring terminals on the left side. Use a flat screwdriver to move the interior through the front window of the product Switch, can achieve 110V/220V switching (when toggled, the font displayed on the switch is the set value), Attention: Do not set it at 110V and input voltage to the product exceeding 150Vac, otherwise it will permanently damage the product High quality aluminum material, heat dissipation and corrosion resistance, combined with perforated mesh design and aluminum profiles, effectively exerting heat dissipation function The wiring terminals have anti rust and anti-corrosion functions, adopt grouped wiring, and are equipped with safety protection covers for safety isolation protection Method 1. M3 Screws are suitable for 4 tapped holes in the bottom of the shell. The length of screw that is fixed into the power supply must not exceed 3mm Method 2. M3 screws lock in the mounting rack of 4 U grooves under the cabinet. led display, not only can enhance the shop image, but also with the consumer information transfer media. Comprehensive implementation of strict quality system management, and strive to make every piece of display become a fine product, quality is our purpose. HIJH SAIL Focusing on indoor and outdoor full-colour LED display R & D and production, after years of time to explore, for led signs continue to improve, launch products suitable for Internet sales: finished product receipt, easy installation, mobile phone wifi control, and equipped with professional one-on-one after-sales team. High-brightness colourful LED signs, better eye-catching, strong visual impact, make advertising more attractive High brightness for clear visibility day and night Flexible content updating, always updated with the latest adverts Multiple sizes available to meet a variety of needs

Brand: HIJH SAIL

Power Source: Corded Electric

Product Dimensions: 7.5"D x 3"W x 1.2"H

Mounting Type: RM

Current Rating: 40 A

Brand Name: HIJH SAIL

Model: RM

Number of Items: 20

Manufacturer: HIJH SAIL

Unit Count: 1 Count

Included Components: switching power supply

Part Number: YF-5V40A-200W

Power Source: Corded Electric

Mounting Type: RM

Current Rating: 40 A

Maximum Frequency: 63 hertz

Minimum Frequency: 47 hertz

Item Dimensions D x W x H: 7.5"D x 3"W x 1.2"H

Item Weight: 0.51 kg

Specification Met: UL
