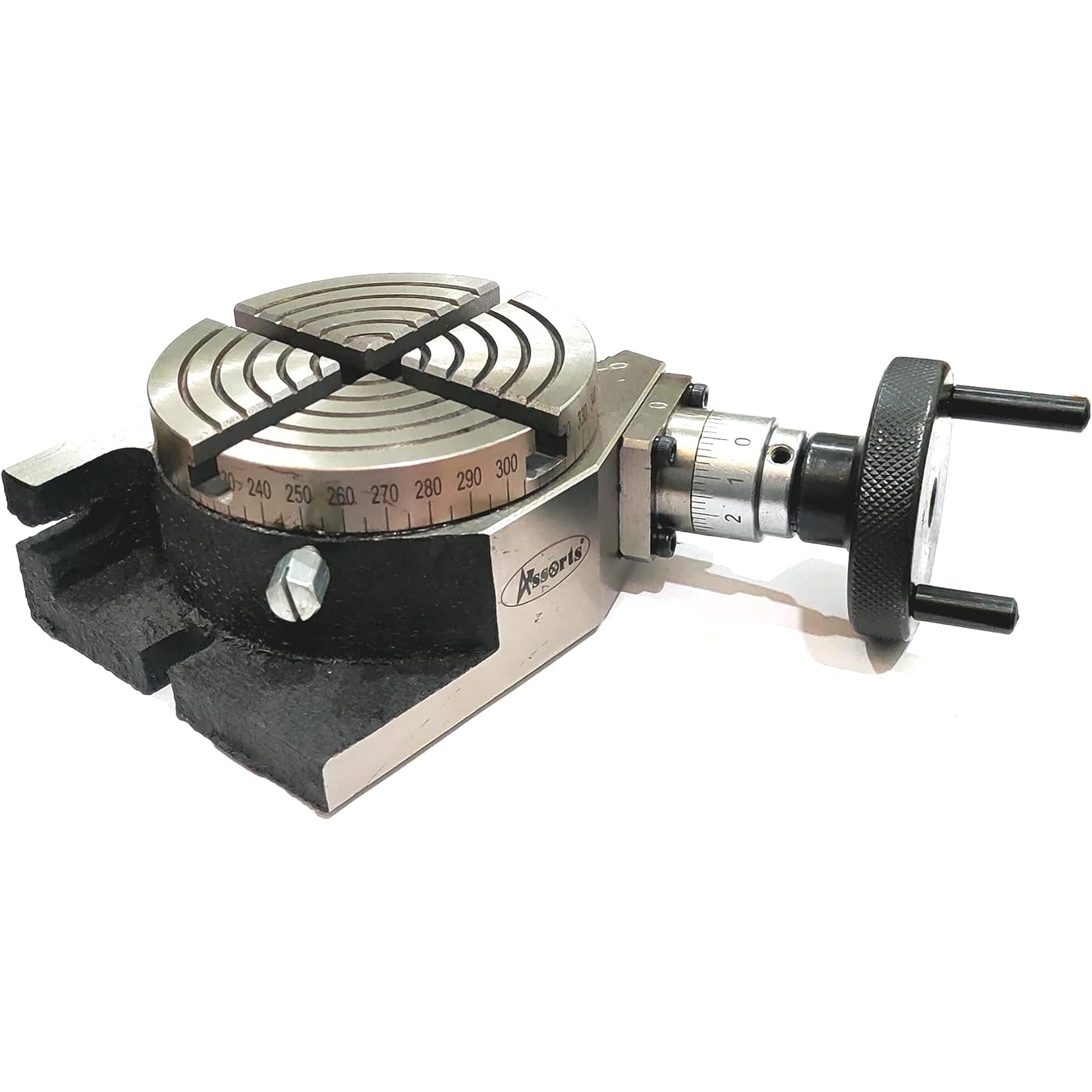

4" Inches (100 mm) 4 Slots Regular Rotary Table for Milling Machines

    • Based on 52 reviews
Condition: New
Checking for product changes
$89.00 Why this price?

Buy Now, Pay Later

As low as $14.83 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 19 left in stock
Fulfilled by ASSORTSMACHINETOOLS
Arrives Jun 9 – Jun 14
Order within 3 hours and 38 minutes
Available payment plans shown during checkout

Features

  • Brand New Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines
  • Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
  • Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero.
  • Can be mounted both in Horizontal & vertical position.

Description

Description: 4 Inches (100 mm) Rotary Table Designed for smaller milling machines. Table diameter 100 mm Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position.

Is Discontinued By Manufacturer ‏ : ‎ No


Package Dimensions ‏ : ‎ 9.61 x 9.53 x 5.12 inches; 9.36 Pounds


Item model number ‏ : ‎ MRT-4R.4


Date First Available ‏ : ‎ January 18, 2017


Manufacturer ‏ : ‎ Global Tools


Customer Reviews: 3.5 3.5 out of 5 stars 52 ratings


Brand Name: ‎ASSORTS


Item Weight: ‎9.34 pounds


Package Dimensions: ‎9.61 x 9.53 x 5.12 inches


Item model number: ‎MRT-4R.4


Is Discontinued By Manufacturer: ‎No


Power Source Type: ‎Manual


Number of Items: ‎1


Model number: ‎MRT-4R.4


Networking Feature: ‎Model Making, Workshops, Garages, Engineering Colleges, Home improvement


Date First Available: January 18, 2017


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Jun 9 – Jun 14

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Apple Pay Later
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Good Value for the Money
Like someone else commented, I view these type of tools as more or less a kit. This one was no exception. The first thing I did was get out a file and remove all the sharp edges. Then I made a base plate for it so that it would fit on the mini mill nicely. Next up was doing something about the backlash. This type of rotary table has two types of backlash, one that you cannot fix which is the clearance required between the worm and the gear so that it can run. The other is the worm spindle end play. To correct it is a simple procedure, remove the handle/knob and the degree indicator ring. While you have them out smooth out the operating ends of the set screws with some emory paper. Then remove the burrs they left on the shaft when originally installed. If you do not do this the next time you try to remove the knobs and indicator ring you will wish you did. When you reinstall them put the degree indicator ring on and then pull the worm shaft like you were trying to remove it. Slide the indicator ring up against the body of the table and lock down the set screw. This removes the end play on the worm shaft. If you overdo it the table will turn very hard. Then you can put the the knob back on. Once I did this the backlash on mine was extremely small. You should also adjust that degree ring so that it is zeroed when the table is reading zero. That take a bit of fiddling but can be done. Next up was the locking screw. Two problems with it, first it is small, second it is made out of brass. Over tighten it and it will break off easily. I drilled mine out for a 1/4-28 fine thread and tapped it. Then I dropped a small puck of brass in the hole and put in a new 1/4 - 28 threaded knob. 1/4 - 20 will work fine too. Now I can actually lock the table without fear of snapping off the small brass screw. I am not worried if the center hole is running true or not. Probably is but if not I will just rebore it in place on the machine. Doing these things will make it work much better, since they do not do them at the factory is why it is so much cheaper, labor is an added cost, even in India. They do not work for free either. ... show more
Reviewed in the United States on January 20, 2020 by Kindle Customer
    • Good value. Perfect for hobby the machinist.
Review Image by froudeg490 froudeg490
Review Image by froudeg490 froudeg490
Appears to be well made. I added a NEMA 17 stepper motor and created a rotary indexer controlled by an Arduino. STL files are on Thingiverse....
Reviewed in the United States on July 19, 2023 by froudeg490 froudeg490
    • Barely adequate for Mill work.
I am using 2 of these on a String jig I am making and they are ok for that purpose. I would not recommend them for using as a mill table as they have loose gearing, and you would have to keep turning them in a counter clockwise direction to keep accurate degree tension on the object that is being held in place. I am seriously looking at buying larger and more expensive ones/IE 8 inch tables for about 500 dollars to use because of the better quality and larger table. Eldan Fales. CFO Design Engineer. Blue Dragon Archery. ... show more
Reviewed in the United States on February 21, 2021 by eldan fales
    • Excellent Quality and Value
When I buy inexpensive tools or machines, I expect to spend a few hours stripping them down, cleaning and adjusting to get satisfactory performance. However, this Rotary Table came out of the box clean, smooth and tight. Backlash is minimal, the table has no slop whatsoever and the finish on the ground surfaces is worthy of a machine costing much, much more. It is not quite up to Starrett standards, but to say I am delighted with my purchase is an understatement. ... show more
Reviewed in the United States on February 28, 2019 by Octant
    • Do not buy
Junk. Very soft brass worm gear drive. A 0.010 inch cut stripped gear.
Reviewed in the United States on February 12, 2024 by Amazon Customer
    • Mounting issues
Cannot mount rotary table directly to the machine table - handwheel/housing extends below the horizontal table mounting. Need to place on risers or mount on edge of (overhang ) table to use. Limits flexibility.
Reviewed in the United States on November 3, 2019 by Amazon Customer
    • One of those surprise gems you stumble upon
This thing is a GREAT tool for a hobbyist machinist. There is practically no slop. The rotation is smooth and uniform, and the over all quality is much more than I had anticipated for the price.
Reviewed in the United States on September 14, 2017 by Csullivan
    • DO NOT BUY
The one I received was pure junk. The top and the out side of the table had had runout of + .010. Upon disassembly I found out the five steps on the table spindle were not concentric of each other. The inner bore of the base is not round. The base isn't even flat even though it was ground. Rather than build one from scratch I will fix this one because that's what I do. I'm a retired toolmaker and this will be a nice small rotary table when I'm done. If you don't have the equipment to do a reman I would stay away. ... show more
Reviewed in the United States on August 8, 2020 by Jim Parizek
