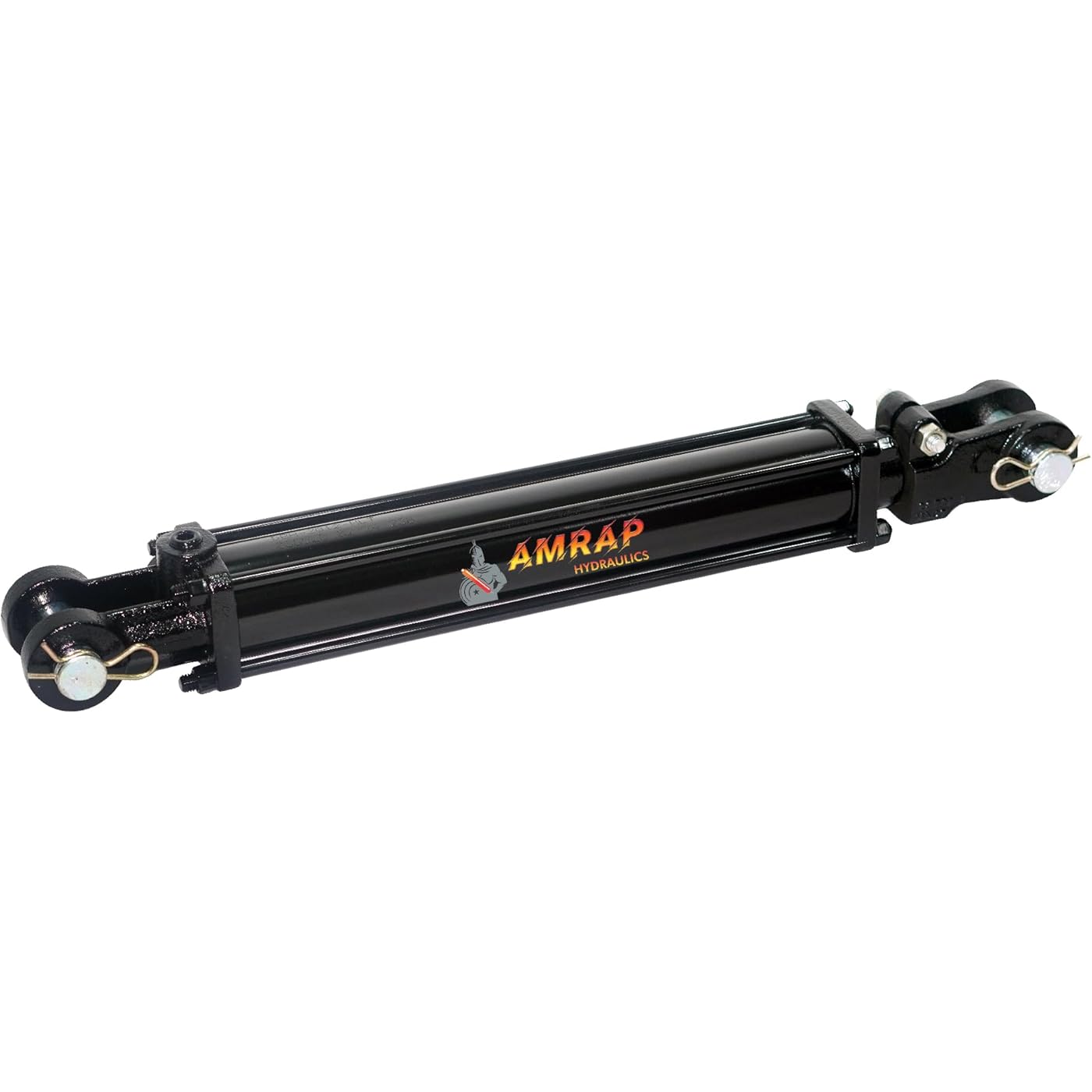

3x16 Hydraulic Cylinder - 3" Bore x 16" Stroke Double Acting Tie Rod Cylinder 3000 PSI (3x16) 1/2" NPT & SAE #8 Ports
Buy Now, Pay Later
- – 6-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
At a glance
- Condition
- New
- Size
- 3x16-NPT&SAE
- Model
- AH3016-TR3
- Weight
- 37 lb
Features 5
- Bore 3" (OD 3.38"), Stroke 16" Rod:1.25, Retracted: 26.25" , Extended: 42.25" , Pin holes: 1"
- Double Acting Hydraulic Cylinder with 1/2" NPT & SAE #8 Ports (Female Pipe), Rated Pressure of 3000 PSI, Column Load Capacity of 15160 Lbs
- Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenance
- Tie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder into two chambers: the rod side (where the piston rod extends from) and the cap side (opposite the rod side). The piston rod extends through one end cap and is connected to the load being moved.
- 2-Year Manufacturers Warranty: All AMRAP Hydraulics products come with a 2-year manufacturer's warranty*. Thats 24 months of peace of mind!
Description
A tie rod hydraulic cylinder is a type of hydraulic actuator used in various industrial applications to provide linear force and motion. It consists of a cylindrical barrel with a piston inside it, connected to a piston rod. The piston separates the cylinder into two chambers: the rod side (also called the "blind end") and the cap side. Hydraulic fluid is typically used to create pressure differentials between these chambers, which in turn generates linear motion of the piston rod.The term "tie rod" refers to the structural element that holds the cylinder together. Tie rods are typically threaded rods that run parallel to the cylinder barrel and are connected to both end caps, effectively keeping the cylinder assembly tightly secured.Key components of a tie rod hydraulic cylinder include:Cylinder Barrel: The main body of the cylinder where the piston moves back and forth.Piston: A device that divides the cylinder into two chambers and transfers force from the hydraulic fluid to the piston rod.Piston Rod: Extends from the piston and transfers the force generated by the hydraulic pressure to the external load.End Caps: These are attached to both ends of the cylinder barrel and serve as mounts for the piston rod and tie rods.Tie Rods: These rods run along the length of the cylinder barrel and are connected to both end caps to provide structural integrity to the cylinder assembly.Tie rod hydraulic cylinders are widely used in various industrial applications such as construction equipment, agricultural machinery, material handling equipment, and manufacturing machinery due to their ability to provide precise and powerful linear motion. They come in various sizes, pressure ratings, and configurations to suit different applications and operating conditions.DESCRIPTIONINTENDED USE: DOUBLE ACTING APPLICATIONS.PISTON: Ductile iron ASTM A536 65-45-12 for excellent life.PISTON LOCK NUT: Grade 8, high tensile zinc-plated.GLAND: Ductile iron ASTM A536 65-45-12.TUBE: High tensile cold drawn tube, precision honed for extended seal life.TUBE SEAL: O-ringROD: High tensile ground & polished hard chrome plated rodROD SEAL: Std PolyPak with B lip design (Polyurethane U-cup with nitrite O-ring expander)WIPER: PolyurethaneEND MOUNTS: Ductile iron female clevises with pins and clips includedCLEVIS CLAMP BOLT: Grade 8.8CLEVIS CLAMP NUT: Grade 8PIN & PIN CLIP: High tensile zinc- plated steelPISTON ID SEAL: O-ringPISTON OD SEAL : Hallite 755 Piston sealTIE ROD: ASTM 5140, high tensile, rolled threads for durabilityTIE ROD NUT: Grade 8CAP: Ductile iron ASTM A536 65-45-12PORTS: NPTPORT PlUG: Plastic (Shipping)PAINT: BlackA hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear mechanical force and motion. It consists of a cylindrical barrel, a piston, and hydraulic fluid. When hydraulic pressure is applied to the piston, it moves linearly within the cylinder, generating force along its axis. Hydraulic cylinders are widely used in various industrial and mobile applications for lifting, pushing, pulling, and positioning heavy loads.
Specs 3
| Item Weight | 37 pounds |
|---|---|
| Manufacturer | AMRAP HYDRAULICS |
| Item model number | AH3016-TR3 |
No specs match.
