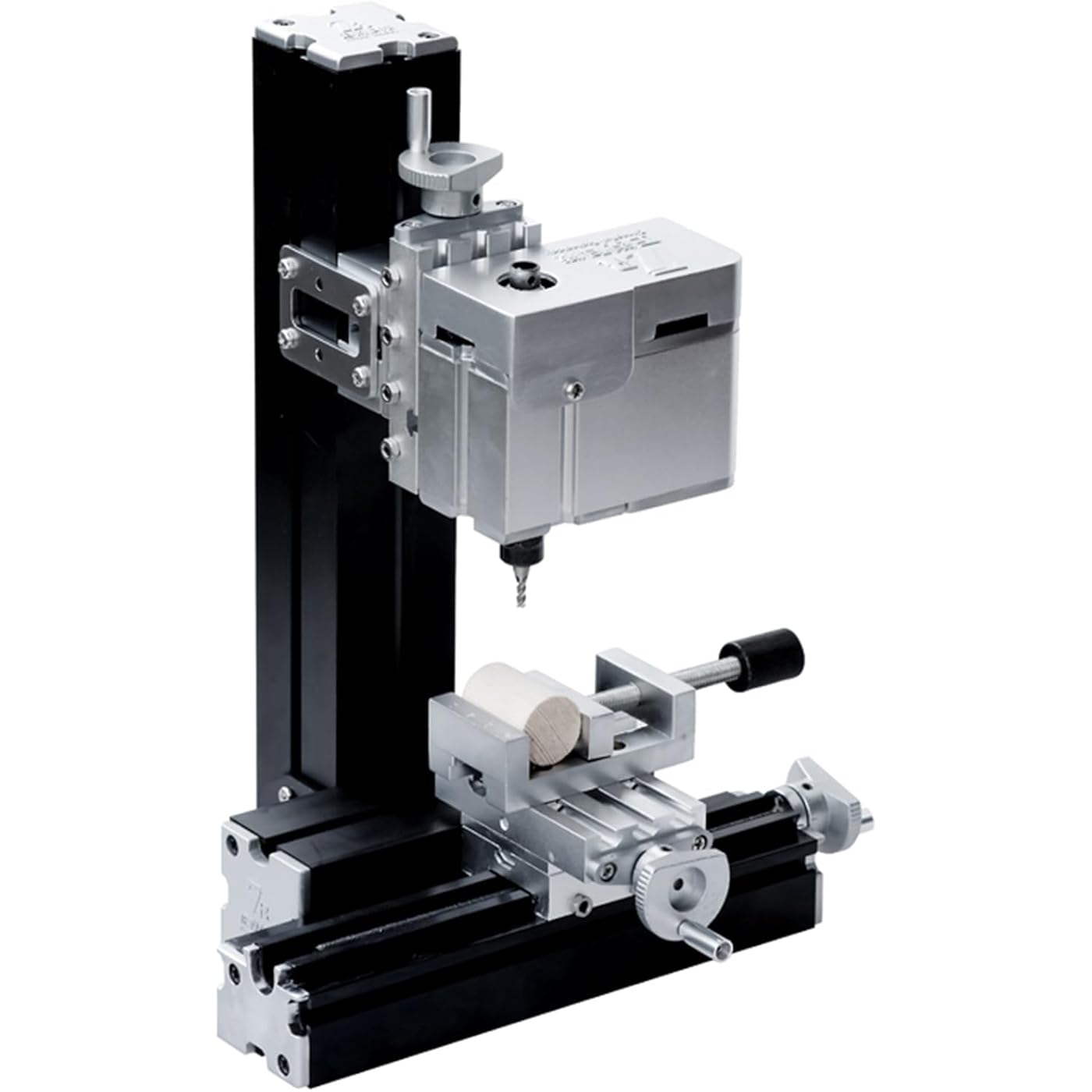

ZR® Electroplated Mini Metal Milling Machine 36W 20000rpm DIY Vertical Miniature Mill Lathe Machine Tools for Creative Maker Miniature Miller

Features

• Hi-power motor is adopted with all drive axes,maximum speed up to 20,000 rpm. Input voltage/Current /Power: 12V/3A /36W. Input Voltage of Switch Power Supply: 110V- 240V
• X-axis slider travels: 150mm. The chuck and collets is 1 to 6mm. Dimensions of metal plated vise:80mmx47.5mmx25mm, Maximum clamping size:50mm*50mm
• The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, slider, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
• Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work. The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.
• Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly. 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection. To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.
• The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy. Versatile application: The mini metal milling machine is not only powerful to process the regular materials, but also it is perfect choice for special items, such as various types of planes, grooves, gears etc.
• The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).
• By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy.
• The electroplated hand wheels are designed with 3/4 semi-circular structure. With accuracy of 0.02 mm scale line, the precision of machine tools be increased obviously. (The scale lines are molded at one time, aren't sticky label)
• Children-proof design & safe fillet processing technology, they are all to prevent metal parts from scratching the skin.

Description

Technical ParameterHi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpmInput voltage/Current /Power: 12V/3A /36WInput Voltage of Switch Power Supply: 110V-240VX-axis slider travels: 150mmThe chuck and collets is 1 to 6mmDimensions of metal plated vise: 80mmx47.5mmx25mm, Maximum clamping size: 50mm50mmThe metal plated vise feature with one-time molded scale lines, that's more convenient for positioning and processingMachine size:250mm200mm300mm Kindly notice:Due to the sharply blade, there is a certain risk when children use the mini metal milling machine tools. Please try to operate it under the guidance of your teachers. Q & A: Q1: What's the usage of ZR miniature machine tools? The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc... Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill&innovative ability. Q2: Is it easy to assemble and operate the miniature machine tools? What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, please contact us by e-mail / whatsapp/ mobile phone for online service. Q3 : How about the after sales service? Firstly, quality guaranteed by the authoritative certificate of CE, RoHS, FCC , ISO9001:2008 Second, free spare parts and one year warranty

Manufacturer: ‎ZR

Item Weight: ‎10.98 pounds

Package Dimensions: ‎14.2 x 12.9 x 9.1 inches

Country of Origin: ‎China

Item model number: ‎ZRZX02036

Power Source: ‎ac

Included Components: ‎1 x User Manual

Batteries Required?: ‎No

Date First Available: July 19, 2023
