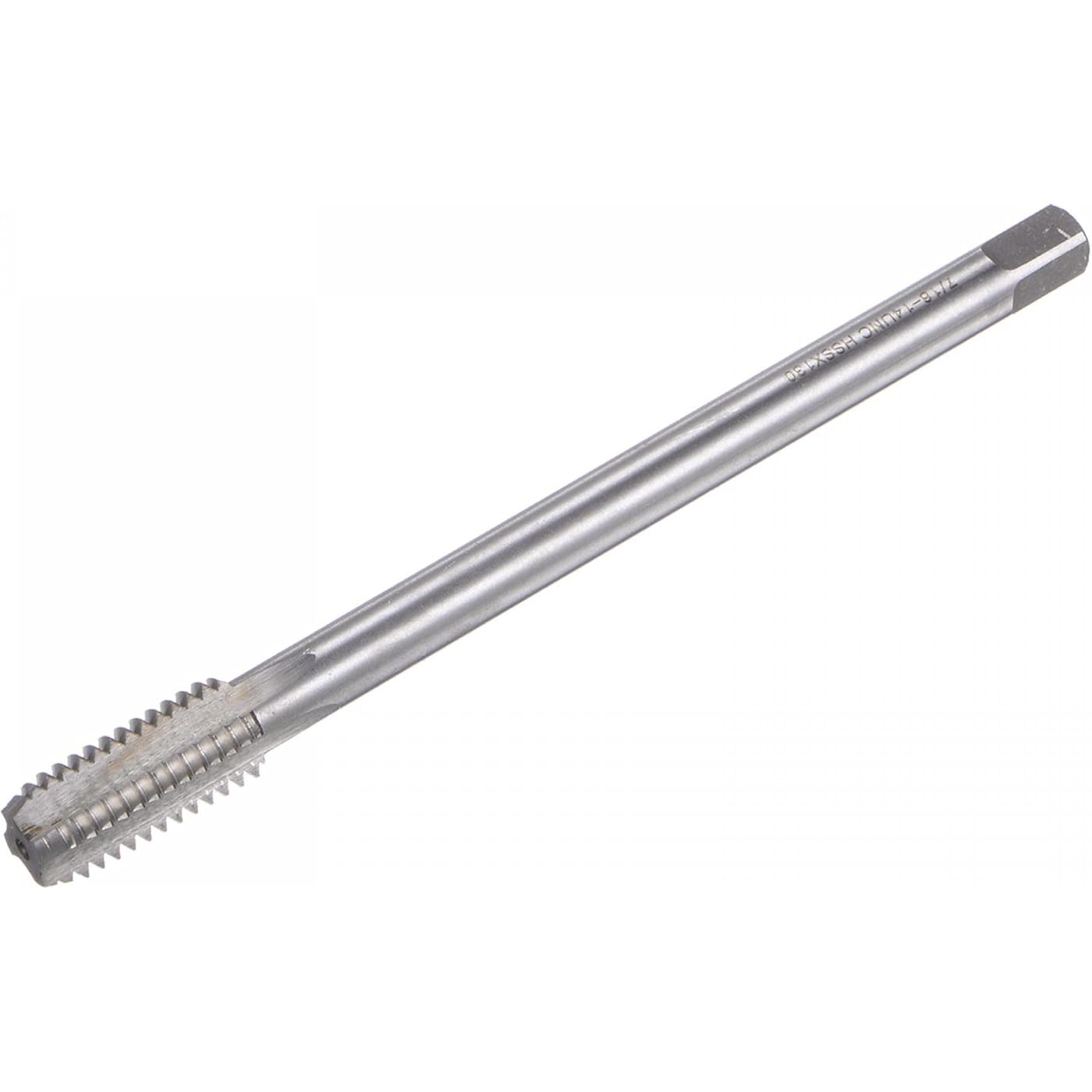

uxcell Thread Milling Taps, 7/16-14 UNC High Speed Steel (HSS) 4 Straight Flutes Machine Screw Thread Threading Tap, 5" Length (Extra Long)
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
At a glance
- Condition
- New
- Size
- 7/16-14 UNC
- Model
- a22051600ux0144
- Weight
- 2.39 oz
- Color
- Uncoated
- Material
- High Speed Steel
- Style
- Straight Flutes
Features 5
- Tap Size: Thread size: 7/16-14 UNC; total length: 130mm / 5" (approx.); accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
- High Speed Steel: High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.
- Applications: Suitable for processing through holes or shallow blind holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
- Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Description
Taps can be divided into straight flute thread taps, spiral flute thread taps, spiral point thread taps and thread forming taps. They are also divided into hand taps and machine taps according to the usage. Hand taps are operated by tap wrenches. Machine taps are suggested to be used with tap collets with overload protection. Recommended feed rate: General steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes. 6542 high-speed steel taps offer high hardness, good toughness, wear resistance, and excellent cutting performance. Feature just the base substrate without any additional coatings, great for a wide range of applications. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.) Hand use or electric drill use is easy to cause breakage to the tap, so it is not recommended. Cutting oil is lubrication, cooling and anti-sticking. Be sure to select the appropriate cutting oil for complex tapping process and apply anti-rust oil for maintenance after use. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations. Taps can be divided into straight flute thread taps, spiral flute thread taps, spiral point thread taps and thread forming taps.
Specs 12
| Manufacturer | uxcell |
|---|---|
| Part Number | a22051600ux0144 |
| Item Weight | 2.39 ounces |
| Package Dimensions | 5.51 x 3.94 x 0.67 inches |
| Item model number | a22051600ux0144 |
| Size | 7/16-14 UNC |
| Style | Straight Flutes |
| Finish | Uncoated |
| Material | High Speed Steel |
| Item Package Quantity | 1 |
| Number Of Pieces | 1 |
| Usage | Machine Use |
