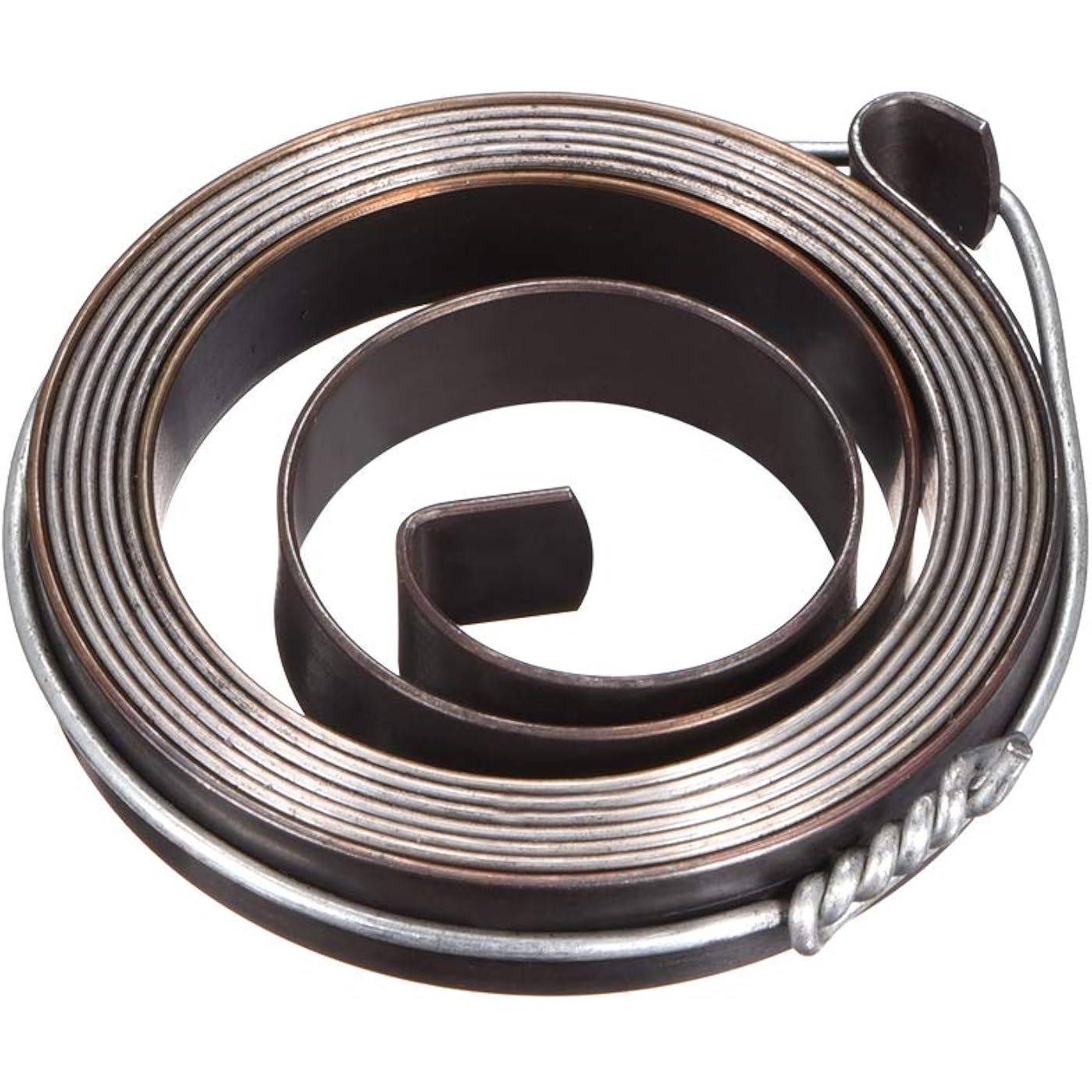

uxcell Drill Press Return Spring, Quill Spring Feed Return Coil Spring Assembly, 3.3Ft Long, 41 x 8 x 0.8mm

    • Based on 30 reviews
Condition: New
Checking for product changes
$7.49 Why this price?
Save $192.50 was $199.99

Buy Now, Pay Later

As low as $1 / mo
  • – 4-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 12 left in stock
Fulfilled by Amazon
Arrives Sunday, May 19
Order within 18 hours and 32 minutes
Available payment plans shown during checkout

Recently Viewed

Features

  • Expand Length : 1000mm/39.4inch ; Spring OD : 41mm ; Material Width : 8mm ; Material Thickness : 0.8mm
  • Inner Mounting Type : Hook; Outer Mounting Type : Hook
  • This is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on
  • Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust
  • Pay attention to safe when installing springs. Do not loosen the wire of fixed springs!

Description

Specification: Material : Spring Steel (60Si2Mn) Finish : Chemical Blackening Material Thickness : 0.8mm Material Width : 8mm Spring OD : 41mm Expand Length : 1000mm/39.4inch Inner Mounting Type : Hook Outer Mounting Type : Hook Package Content : 1 x Drill Press Spring Description: 1.The drill press quill return spring is good replacement for many existing quill spring drill presses, this is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on. 2.Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust. 3.Pay attention to safe when installing springs. Do not loosen the wire of fixed springs! When installing, install the spring with a fixed wire directly into the spring , and the wire will slide out.


Manufacturer: ‎uxcell


Part Number: ‎A18110600ux0084


Item Weight: ‎1.76 ounces


Product Dimensions: ‎1.97 x 1.97 x 1.18 inches


Item model number: ‎a18110600ux0084


Size: ‎0.8 x 8 x 1000mm


Material: ‎Spring Steel


Item Package Quantity: ‎1


Measurement System: ‎Inch, Metric


Batteries Required?: ‎No


Date First Available: December 13, 2018


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Sunday, May 19

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • PayTomorrow Financing
  • Apple Pay Later
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Fit and function.
I bought this spring to replace the broken one on my Delta 17-956 based on the measurements alone. Delta and other retailers list this spring at $35, but were no longer stocked. The spring arrived after five days. As received, the spring is tightly wound and held by a wire around the circumference. Before removing the old spring, note the orientation of the spring in the housing. I was concerned that the tightly wound spring would unwrap wildly when the clamp wire was cut, so I added a smaller wire (radially) around the tightly wound spring and twisted tightly to secure it. Another wire was added around the spring at 180 degrees, ( think 3 o’clock and 9 o’clock ) and twisted tightly. With the exterior spring tab located into the housing, I clamped a narrow piece of wood across the housing to preclude the escape of the spring. Wearing safety glasses, I cut the wire around the outside of the spring and removed it. The two small wires I added, were then cut and removed. Reassemble on the drill press. Wear leather gloves while tensioning the spring, Or pay the band aid tax. The spring tang has sharp edges. DAMHIK. This spring fits and functions as well as the original Delta part. ... show more
Reviewed in the United States on November 2, 2019 by happydays
    • Good product
It was a good product that shipped quickly. However, this one was too big so I had to reorder a smaller size.
Reviewed in the United States on August 5, 2021 by GB
    • Inaccurate Diameter
I needed this part for a 41.5mm diameter housing. The part that came was 42.5 mm in diameter. This makes it basically useless as there's no easy/fast/safe way to wind the outside diameter down to the desired size... Let alone getting it into the housing afterward. For a $7 part it makes no sense to even try. So it's basically useless. They need to do a better job of QC. Aside from the size issue it looked well made, but a well made part that doesn't fit is less useful than a poorly made one that does. ... show more
Reviewed in the United States on March 29, 2021 by Jason Lewis
    • Incorrect Size
Measurements in the description said 41mm width, was almost 43mm. Wouldn't fit in the 41.5mm housing of my drill press.
Reviewed in the United States on March 4, 2021 by Amazon Customer
    • Good value.
Worked perfectly!
Reviewed in the United States on March 15, 2021 by ARTHUR A. SCOTT III
    • Good product
As advertised
Reviewed in the United States on September 11, 2020 by Ken
    • Snapped on first use.
Snapped on first use.
Reviewed in the United States on March 31, 2021 by KTM
