Notify me when this product is back in stock
$2,349.00
Buy Now, Pay Later
As low as
/ mo
Learn more
- – Up to 36-month term if approved
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Free shipping on this product
30-day returns
Learn more
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
Unavailable
At a glance
- Condition
- New
- Dimensions
- 87.8 x 18.5 x 18.5 in
- Weight
- 188.6 lb
- Color
- Yellow, Silver gray
- Material
- Painted steel, Aluminum alloy track rail
- Size
- 59" x 98"
- Power Source
- LPG/Coal gas/Propane/Acetylene/Plasma
- Warranty
- 2 years equipment damage warranty caused by nonhuman reasons
Features 5
- Rated voltage: 110/220/240V10% 50/60HZ, Effective cutting range: 59"x98", Track rail size 84"x118"(X axis and Y axis)
- Flame cutting thickness: 0.2-7.87 inches, Flame maximum cutting speed: 23.6 inch/min
- Flame cutting optional gas supply type: Propane/acetylene/natural gas + oxygen
- Plasma cutting thickness: matching plasma source, Plasma cutting speed: matching current of plasma source(Max.138 inch/min with dry&pure gas)
- CNC controller default Max. speed limit: 78.7 inch/min, No-load default speed limit: 118 inch/min, Automatic Torch Height Control for Plasma Cutting

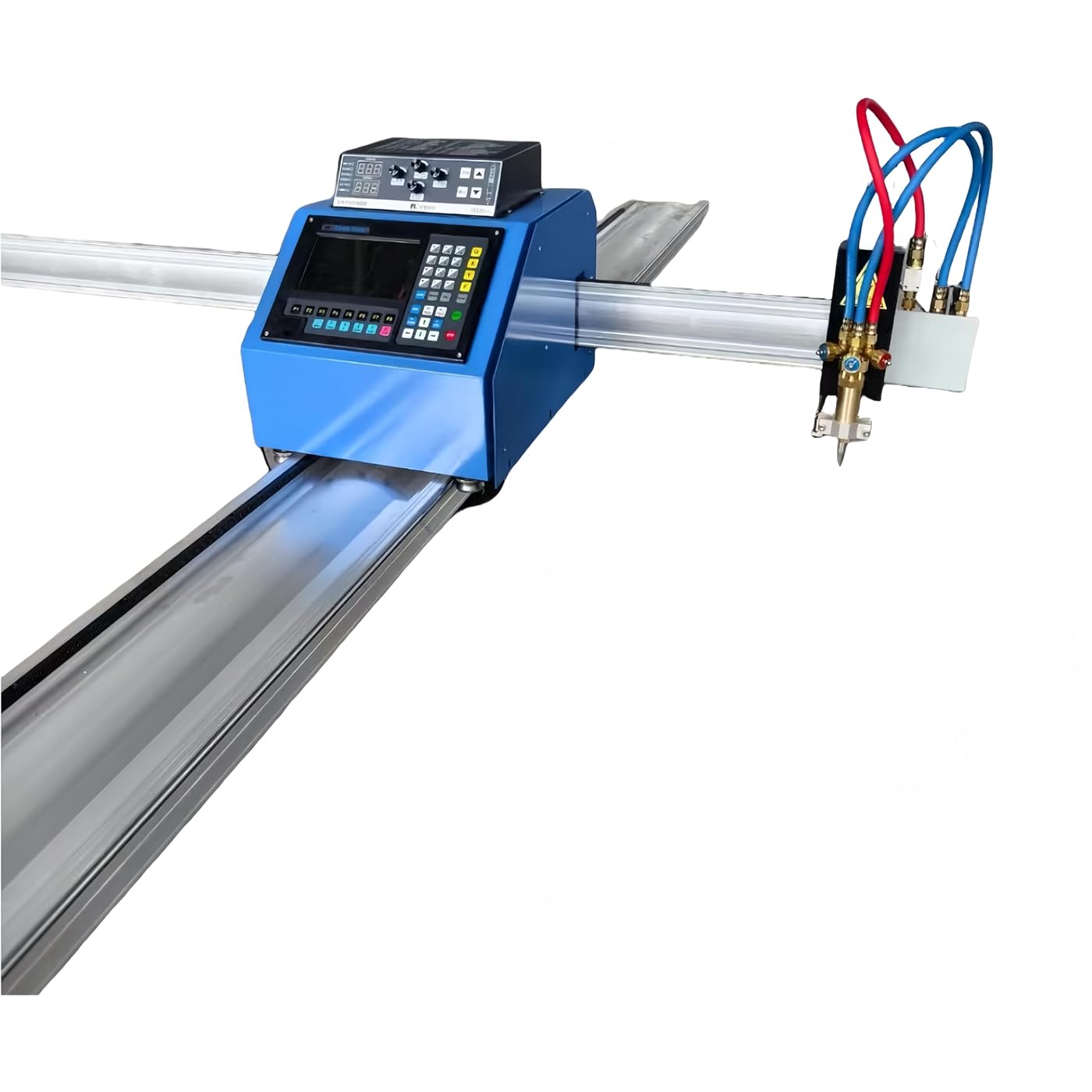

Description
Product information THC-automatic plasma torch height controller. The flame cutting assembly. StarCAM nesting software with USB key. Item is not include plasma equipment and plasma torches. Plasma THC upgrade from F1620 to F1621 Specifications: Model: NL-1525 Working area: 1500x2500mm Power voltage: 110/220V+/-15%, 50/60Hz Guide rail width(X axis): 2.2M Guide rail length(Y axis): 3.0M Effective cutting width: 1.5M Effective cutting length: 2.5M Flame cutting thickness: 5 - 150 mm (0.3 - 5.9 inch) Plasma cutting thickness: Matching plasma power supply Moving precision: 0.01mm/step Drive type: single- side Max. speed: 4000 mm/min Height distance: 0 - 70 mm (0 - 2.8 inch) Relative humidity: 90% Ambient temperature: 0 - 45 ℃ (32 - 113 ℉) Plasma height control mode: THC Flame height control mode: Electronic control button Gas supply of plasma: Atmosphere Gas supply of flame: Oxygen & LPG/Propane/Acetylene/Coal gas
Specs 14
| Manufacturer | Newlin Machinery |
|---|---|
| Part Number | 1625 |
| Item Weight | 188.6 pounds |
| Product Dimensions | 87.8 x 18.5 x 18.5 inches |
| Item model number | 1525 |
| Size | 59" x 98" |
| Color | Yellow, Silver gray |
| Material | Painted steel, Aluminum alloy track rail |
| Power Source | LPG/Coal gas/Propane/Acetylene/Plasma |
| Voltage | 110 Volts |
| Wattage | 220 watts |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
No specs match.
Frequently asked questions
This product is currently out of stock. Please check back later for shipping info.
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- Zip Pay in 4
- Financing through Apple Pay
- Financing through Google Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Good, reliable, easy to use machine
I won't lie, I was apprehensive about buying this machine. When pulling it from the box some of the craftsmanship wasn't the greatest. Some bent parts, holes didn't quite line up for assembly but in the end it has actually worked out really well. I have had this for almost at year now and it has helped me build tons of projects that I probably never would have tackled before. With the preloaded shapes and just entering your dimensions it makes it really easy. Even my other employees that aren't computer savvy can cute out parts. If its a little more complicated you can use the software. I am not overly impressed with software, it took a bit of a learning curve, but it does do the trick for cutting odd parts. I am still a little concerned that if the machine goes down I will struggle to get parts and fix it but up to this point I have cut enough parts with it that I feel I have gotten my money back out of it. Hopefully it keeps on spitting out parts for me and I don't ever have to worry about that but I will say If it does go down I believe the seller will help. He was helpful in setup and getting my plasma cutter hooked up to work with it. So overall quite impressed for the price point.
...
show more
Reviewed in the United States on February 27, 2023 by Amazon Customer
Great Product.
Shipping to New York form China took a while but I mean its coming from China and its big so I cant even complain about the shipping time, even though it seems like forever it actually came before the estimated delivery date. The company posted youtube videos on setup and it comes with a flash drive with pdf instructions. a lil tough to understand but not impossible. easy to set this thing up. took a few hours. i made my own table out of 2 inch emt tube 7ft by 7 ft by 28in high. cutting bed is just some old flat stock i had lying around. it says it accepts txt fies but tap files work and if you already use sheet cam it will work as well as the provided starcam program. my starcam license key did not work they sent me a new one. i have never used any type of CNC machine before im above average iq but i still managed to get this machine to work within a day of setting it up. The quality is much higher than i expected the extrusions are sturdy and the bolts fit pretty well. The wiring is simple (look at diagram on flash drive) i had a single tiny screw that was incorrectly tapped out on a stupid support bracket i used a larger screw and retapped it but i could have just used a small self tapper. i used inkscpe to draw my designs them imported them into sheet cam the star cam key has not arrived yet. then i generated my g codes and saved the tap files to flash drive. tapped a few buttons and boom i cut out this punisher i had a few issues but like i said im new to cnc plasma cutting. e mails i sent to Newlin machine where returned within a day even through the holidays. im super pleased with my purchase and you will be too.
...
show more
Reviewed in the United States on January 10, 2020 by Carmine73
Solid for the price point
I am only writing this review because I had a hard time going out on a limb and purchasing it myself. Is it a super intuitive machine for the extreme beginner? Probably not, but once you get the hang of it I can't imagine a better deal for what it will do. Yes you will likely have to fool with some parameters to get it running right, yes the starcam software isn't that amazing, but get sheetcam for a post processor and roll on. Sure the workmanship isn't 10/10 but its $2000....The flame head works very nicely and the plasma is really only limited by your power source and the parameters you set. I was a novice, spent a few months getting my brain dialed in to it and parameters where they needed but now I can run pretty easily and would buy again. It appears most of the parts inside can be sourced online with some googling.
...
show more
Reviewed in the United States on July 16, 2024 by Chris Duffield
Best bang for the buck
Little bit of a learning curve but overall I'm very happy with this machine.
Reviewed in the United States on August 25, 2018 by Johnny Baxter
Great machine
This machine is awesome, if you in market for a cnc plasma this is it. Ive used mine almost everyday for 3 years now, had to update the encryption code recently, had a new code in about a hr. Customer support is awesome!!
Reviewed in the United States on October 10, 2025 by Thomas kincer
