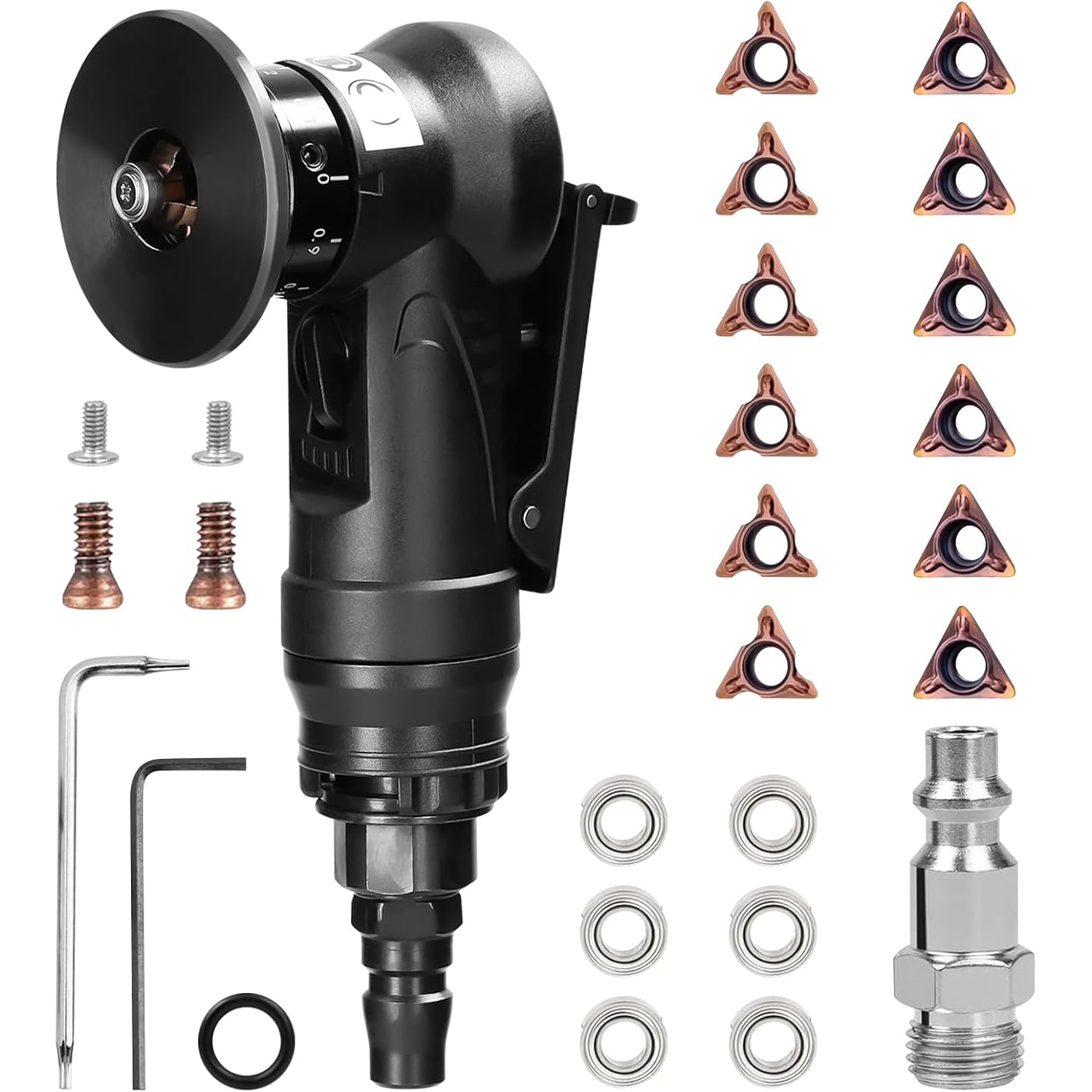

Pneumatic Chamfering Tool Handheld, Mini Air-Powered Chamfering Machine Trimming, 45° Arc Corner with 1/4 Inch Air Inlet for Metal Wood Beveling Deburring (C&R Angle Blades)
Buy Now, Pay Later
- – 6-month term
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Color: C&r Angle Blades
Features
- Versatile: This pneumatic chamfering machine can chamfer R/C angles, round holes, irregular edges, arcs, and straight edges on a variety of materials including steel, aluminum, copper, acrylic, and wood.
- Difference Between C and R Angle: C Angle blade is angular, mostly used for metal chamfering and R-angle blade is rounded and chamfered for woodworking.
- Easy Operation: This 45-degree Pneumatic mini chamfering machine air tools has a new lightweight design, small and exquisite, and can be easily operated with one hand. Use the matching wrench to easily adjust the chamfer size and replace the blade.
- Adjustable Speed and Angle: The mini deburring trimming chamfering tool air grinder 1-5 block valve adjustment thickened knob, freely adjust the gear speed you need. The chamfer size can be adjusted at will. The safety switch is used to prevent accidental touch to protect the user's safety at all times. 1/4 inch metal filter, free speed: 30000 RPM, air consumption 0.4/min.
- Spesification: Free Speed 30000 RPM, Air consumption 0.4/min, Air inlet port: 1/4 inch PT. Trimming Capacity: Chamfering: C0.1-C1.5, ARC cornor:R0.1-R1.5, Adjustable depth:0.1mm-0.9mm.
Description
Pneumatic Chamfering Tool Handheld, Mini Air-Powered Chamfering Machine Trimming, 45° Arc Corner with 1/4 Inch Air Inlet for Metal Wood Beveling Deburring How to Replace blade? Use a hexagon wrench to loosen the plum screw,remove the baffle plate, remove the blade screw with a ring wrench,remove the old blade,and replace it with a new one. The chamfer size can be adjusted at will: Loosen the 2 screws of the black gear plate with a thinner wrench, twist the black gear plate left and right, adjust the chamfer size, and fix the 2 screws back to the original position. Maintenance Tips 1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet. 2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.
Manufacturer: belistair
Part Number: IUY9DE
Item Weight: 1.06 pounds
Package Dimensions: 6.22 x 3.94 x 2.17 inches
Item model number: Pneumatic Chamfering
Color: C&r Angle Blades
Power Source: dc
Included Components: Pneumatic Chamfering
Batteries Included?: No
Batteries Required?: No
Date First Available: March 1, 2024
