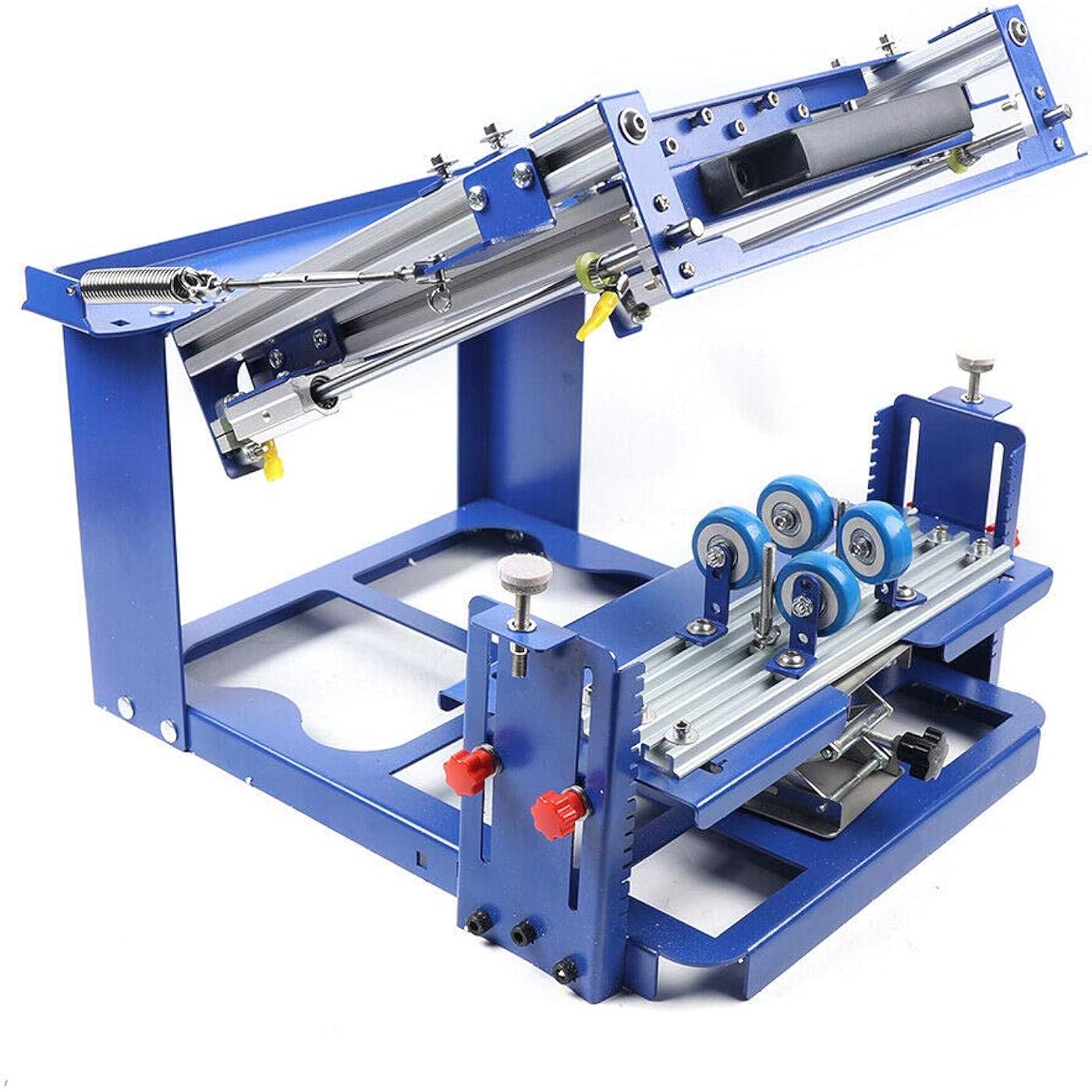

LOYALHEARTDY Manual Cylinder Press Printer Kit Screen, 80mm E-Grade Curved Screen Printing Machine Cylinder Screen Printing Machine Printing Press Kit(5.5“ x 6.3”)

Features

• Four SlidersFour sliders connected to the optical axis to make the screen frame slide back and forth,it is easy and smooth to push and pull .
• Controlled By The Positioning RingThe back and forth sliding distance of the frame can be controlled by the positioning ring on the optical axis.Especially add the collision rubber ring between the locating ring and the slide block, which can prevent the slide block from directly contacting with the metal locating ring during the back and forth sliding of the screen frame, and prevent the sound of metal striking with each other.
• Double Board Clip TypeThe printing scraper rack and the return ink rack adopt the double board clip type, the installation and unloading is convenient and quick, two sides of the main frame and the frame connect the screw middle additional spring, in the printing process, user can adjust the printing scraper and the return ink plate pressure according to the need.
• Easy To Operate The printing plate frame uses the spring to pull and lift, matches the flower basket screw to adjust the lift strength of the screen plate , the lift angle of the screen plate can be controlled by adjusting knob, the operation is easier. The spring tension on both sides of the machine should be as consistent as possible after installation , otherwise it may cause distortion of the printing screen frame.
• Easy To Install It is easy to install and remove the screen frame. Just put the screen plate into the back support plate from below of the printing plate rack, and then put the screen plate into the front support plate, tighten the screen plate fixing screw. (limited to the design requirements of the machine.

Description

Description:1. Curved Screen Printing Machine is mainly used for printing cylindrical type, cone type products.2. Such as a variety of plastic, glass, metal materials made of cylindrical, conical shape products, including wine bottles, medicine bottles, cosmetics bottles and other packaging bottles.3. Mugs, thermos mugs, beer mugs, red mugs, etc. Glass tube, fishing rod, bat and other small cylindrical products.4. Pure bucket, paint bucket, alcohol bucket, paint bucket, oil and lubricating oil bucket and other large packaging cylindrical products. Note:For cylindrical or conical type products, the printing surface has a large concave or convex, the printing surface has spots and other non-plane printing is not suitable for the machine. Parameter:Max Printing Diameter: 3.15" (8 cm)Mini Printing Diameter: 1.97" (5 cm)Max Printing Girth: 6.3" (16 cm）Max Printing Area: 5.5" x 6.3" (14 x 16 cm)Max Frame Size(OD): 9.8" x 11.8" (25 x 30 cm) Main Functions Of The Limited Post:1. Improve the accuracy of substrate placement, ensure that all printing positions are basically the same after substrate placement, and avoid deviation of printing positions caused by different substrate placement.2. Substrate placement faster, no need to mark or manually adjust, directly put into the substrate.3. Limit the substrate in the printing process does not deviate.4. The maximum printing height of this machine is 140mm, and the arc surface length is less than 160mm. Package Include:1 Screen Printing Machine(Includes Two Screen Frames)

Brand: LOYALHEARTDY

Color: Red

Material: Metal

Seasons: All Seasons

Size: 1

Brand: LOYALHEARTDY

Color: Red

Material: Metal

Seasons: All Seasons

Size: 1

Style: Cylinder

UPC: 738635638335

Manufacturer: WILLQUN

Date First Available: October 3, 2020
