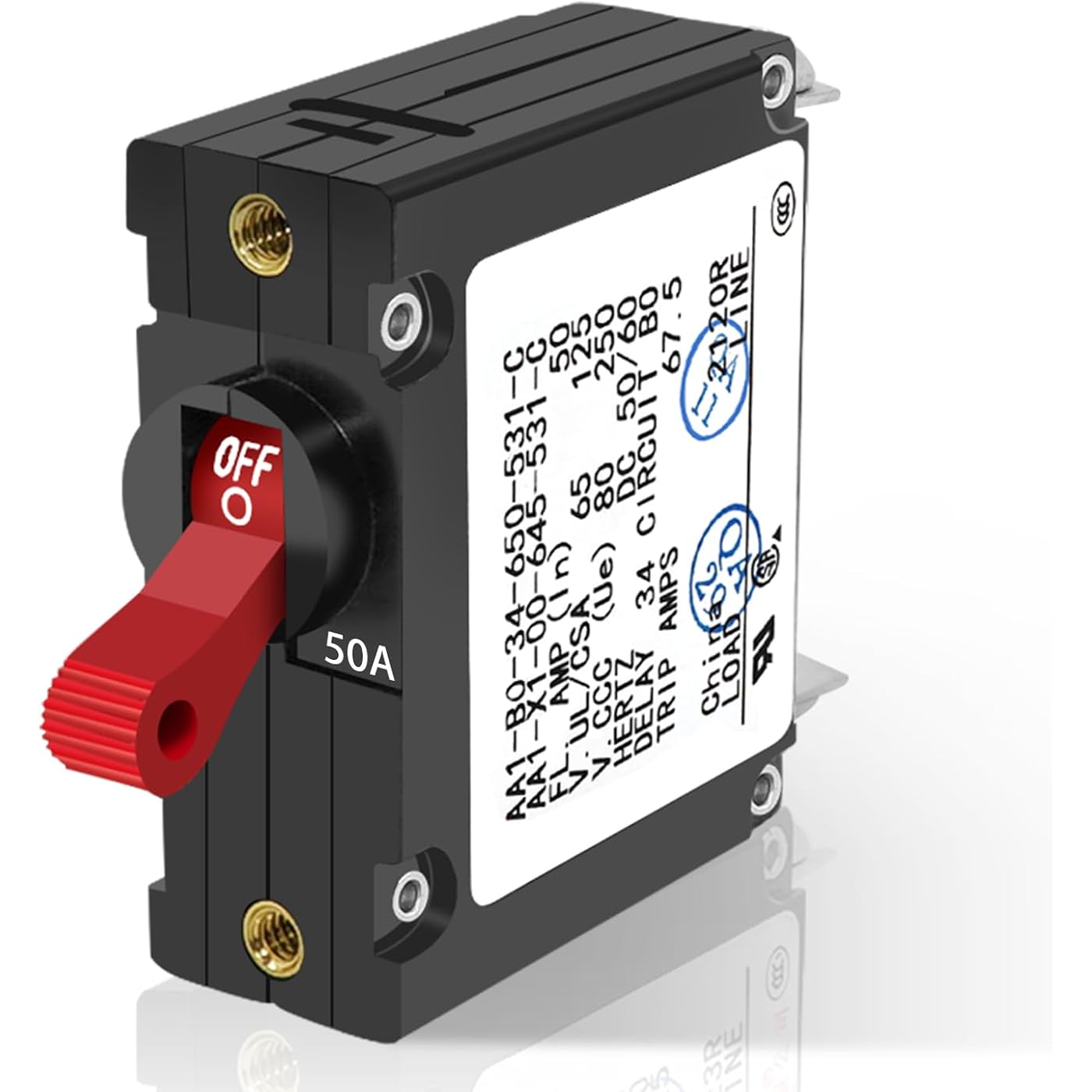

A-Series 50A Boat Circuit Breaker Magnetic with Red Toggle AC/DC Single Pole - 50 Amp Protects Low Power Devices for Marine Yachts, Motorhomes, Campers and Caravans
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
At a glance
- Condition
- New
- Model
- C1010
- Weight
- 0.06 kg
- Color
- 50 Amp Toggle Single Pole
- Mounting Type
- Panel Mount
- Terminal
- Screw
- Voltage
- 277 volts
- Works with
- AC and DC devices, Breaker Panels, Devices adhering to ABYC, CE, UL, CSA, VDE, TUV, CCC standards
Features 5
- Details: 50 Amp, sigle pole circuit breaker,electric magnetic circuit breaker with red manual ON/OFF toggle reset,fit in AC and DC systems.
- Function: Combine switch and circuit protection in one device. Provides overload and short-circuit protection for electrical system
- Standards: Meets IP68 requirements, American Boat and Yacht Council (ABYC) standards and requirements.Accredited by European CE, US UL, Canadian CSA, German VDE, TUV, Chinese CCC.
- Performance: fit perfectly in breaker panel, works great, easy to operate and install
- Mechanical Life: switching cycles 10,000 times under rated current and voltage,Max voltage: 277VAC 50/60Hz 80VDC.
Description
Well known for their proven reliability, Lenkrad's A-Series hydraulic magnetic circuit breakers are compact, weather proof, light weight designed, temperature stable and designed for precision operation in OEM markets requiring general purpose as well as full load amp applications. All A-Series Circuit Breakers will trip on overload, even when the actuator is forcibly held in the ON position. The operating actuator moves positively to the OFF position when an overload causes the circuit breaker to trip. The high waterproof grade of A-Series circuit breakers meet IP68, with high and provide long service life. Manual ON/OFF Toggle Reset Red Switch Circuit Breaker mechanical life can switch cycles 10000 times under rated current and voltage. A-Series circuit breakers are divided into single and double poles. Single pole circuit breakers have two screws, and double pole circuit breakers will provide four screws. Compatible with AC and DC systems, providing overload and short circuit protection for electrical system. No modification of wiring required, easy to install. You can use these on an interlock safety system where if the ground starts feeding power back to a safety plug it will kick the breaker on one side causing it to drop the other side that is feeding power to a 3 PH contactor.
Specs 27
| Mounting Type | Panel Mount |
|---|---|
| Brand | LENKRAD |
| Terminal | Screw |
| Voltage | 277 volts |
| Current Rating | 50 A |
| Maximum Current | 50 A |
| Operating Voltage | 277 V AC |
| Operation Mode | ON-OFF |
| Contact Type | Normally Open |
| Circuit Type | series |
| Compatible with Vehicle Type | Marine, Recreational Vehicles |
| Connector Type | Screw |
| Control Type | ON-OFF |
| Number of Positions | 2 |
| Switch Type | Toggle |
| Color | 50 Amp Toggle Single Pole |
| Brand Name | LENKRAD |
| Number of Packs | 1 |
| Manufacturer | Ocean River |
| UPC | 631105470353 |
| Item Weight | 0.06 kg |
| Model | C1010 |
| Unit Count | 1 Count |
| Part Number | C1010 |
| Contact Material | Copper Alloy |
| Specification Met | CE, CSA, TUV |
| International Protection Rating | IP68 |
