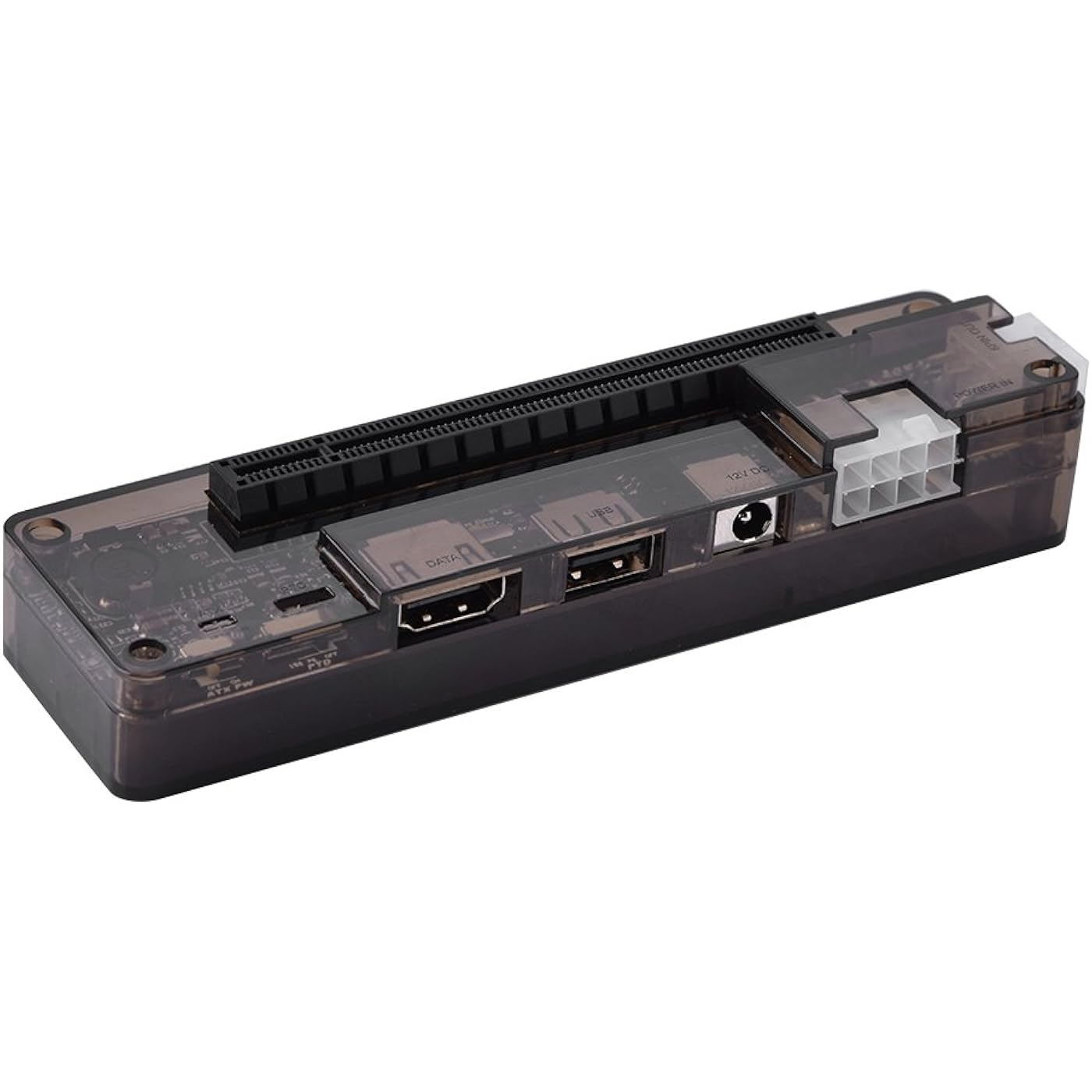

Laptop External Independent Video Card Dock for Mini PCI-E Without Power Supply

Features

• Support TD compatible switch (hardware conflict resolution), multistage anti-interference circuit and data line reinforcement. Compatible with graphics card, sound card, array card, video card, collect card, etc.
• 8p power output interface can connect 220W power supply and ATX cable with ATX desktop power. Reinforcement design for data transfer line. electronic components. Isolation circuit. Use for engineering measurement, data collection, server debugging, GPU computing and other industrial applications, most of the graphics card to play the game.
• Unsupported :Not fit for N55SF/N75SL/ASUS/A53XI24/1SV-SL/K43SD/A73S /K53SD/X8dij/A43s/N55SL/K45dr, Not fit for E530/L430/E43/U410/E49/K49/G50-75M(New Add),Not fit for H533OM/6910/5310M,Not fit for Hasee ui45/EVI4,Not fit for ,Not fit for 4739z/E1-451G,Not fit for 450R/270e5k/np450r5j-x05cn,Not fit for 5437/N55SL
• Instructions: Disable the built-in independent graphic card in the BIOS and turn off the network. Update BIOS of the notebook to the latest version. (You can see the update method in the official website of your laptop.) Enter in Computer-Device Management-System. Disable PCI related port until the built-in independent graphics card is gone.
• Instructions 2: Restart the notebook after the hardware installation is complete. The external graphics card power supply is controlled by the laptop, the external graphics card start when the laptop is activated, the external graphics card can close when the laptop is closed. The 6Pin interface of the graphics card must be connected correctly, otherwise the power supply is insufficient.

Description

Specifications: Support Interface: PCl-E Devices(Including graphics card, sound card, array card, video card, collect card, etc) 6Pin Power Supply Output: Support 6Pin+ Interface Output 8P Power Supply Interface: Equipment Power Supply Interface/Laptop Power Switch(1.Use a special 220W power supply 2.Use desktop ATX power supply with ATX cable) DC Power Interface: DC 12V Power Supply(Maximum power is 150W) USB Interface: This interface only provides 500mA voltage output and does not have any other functions(The interface of M.2 M Key and PCI-E X4 is data cable interface, and the type of the interface is HDMI.) Data line Interface: For Mini PCI-E, Expresscard, NGFF(M.2)A/E Key or M Key, PCI-E X4 Converter Cable Instructions: To better use the external graphics card, please read the instructions carefully before installing the external graphics card, and do the following operations (unload all built-in independent graphics driver). Disable the built-in independent graphic card in the BIOS and turn off the network. Update BIOS of the notebook to the latest version. (You can see the update method in the official website of your laptop.) Enter in Computer-Device Management-System. Disable PCI related port until the built-in independent graphics card is gone. Restart the notebook after the hardware installation is complete. Package Includes: 1 x Laptop External Independent Video Card Dock 1 x MINI PCI-E Data Line 1 x ATX Power Supply Cable( power supply cable can be split into 6pin cable)

Brand: Serounder

Color: T50

Hardware Interface: HDMI

Compatible Devices: [INF] Some devices not listed in 'unsupported' field and certain types of cards such as graphics, sound, array, video, collect See more

Total USB Ports: 1

Number of Ports: 2

Item Weight: 0.17 kg

Total HDMI Ports: 1

Wattage: 150 watts

Input Voltage: 12 volts

Hardware Interface: HDMI

Compatible Devices: [INF] Some devices not listed in 'unsupported' field and certain types of cards such as graphics, sound, array, video, collect

Total Usb Ports: 1

Number of Ports: 2

Total Number of HDMI Ports: 1

Wattage: 150 watts

Input Voltage: 12 volts

Item Weight: 0.17 kg

Color: T50

Brand: Serounder

Number of Items: 1

Unit Count: 1 Count

UPC: 741870077517 724942135810

Manufacturer: Serounder

Model Number: Serounderrq6fin78k0

Mfr Part Number: Serounderrq6fin78k0
