Features
Description

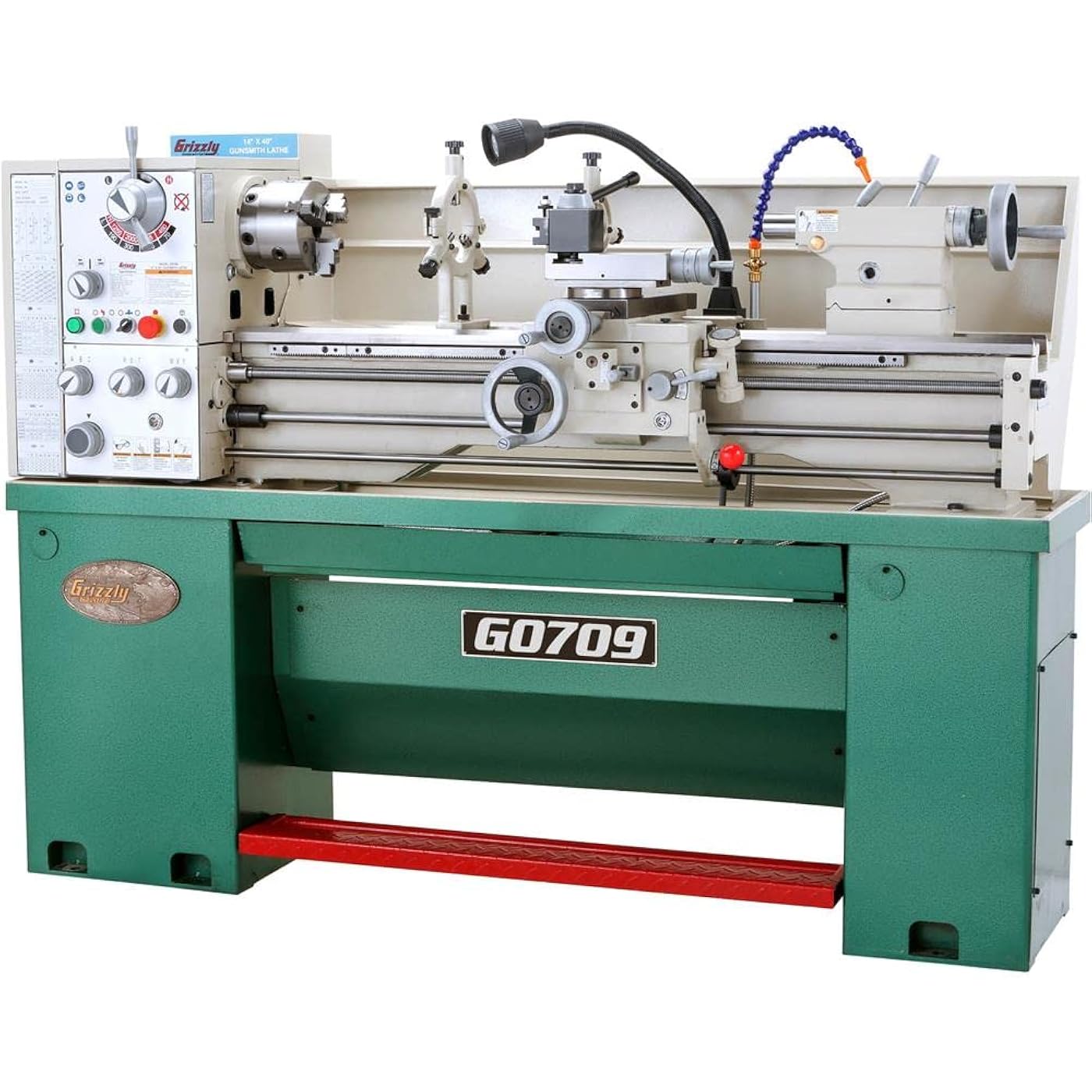

G0709 14" x 40" Gunsmithing Gearhead Lathe An accurate and powerful lathe. What makes the G0709 14" x 40" Gunsmithing Gearhead Lathe a "gunsmithing" lathe is that it comes with features typically not found on standard lathes, such as the high-precision NSK bearings, extra-large 1-9/16" spindle bore and a "spider" mount system. The spider mount system has four brass-tipped screws that stabilize long shafting and rifle barrels through the outboard end of the spindle. Supplied with a 2 HP motor, the 8-speed gearhead of the G0709 produces spindle speeds from 70-2000 RPM. The tailstock lock system features a drive hub, which allows you to use a 1/2” torque wrench to clamp the tailstock in place at a pre-determined torque setting. This ensures consistent draw-down alignment every time, even with multiple lathe operators using the machine. The G0709 features a foot brake that also acts as a safety device and can bring the machine to an instant stop. The G0709 also comes with a D1-5 spindle, a 200 series quick change tool post, flood coolant system, LED work light, and a pull-out chip tray. Like all Grizzly gunsmithing lathes, the G0709 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.) The G0709 manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your lathe. The Grizzly Technical Support team is U.S. based. Parts and accessories for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. SPECIFICATIONS Motor: 2 HP, 220V, single-phase, 10A Swing over bed: 14" Distance between centers: 40" Swing over saddle: 13-13/16" Swing over cross slide: 8-13/16" Spindle bore: 1.57" (40mm) Spindle nose taper: MT5 Spindle nose: D1-5 Camlock Spindle speeds: 8, 70-2000 RPM Carriage travel: 36" Cross slide travel: 6-11/16" Tailstock barrel taper: MT3 Tailstock barrel travel: 3-15/16" Overall dimensions: 71-1/2" L x 26-3/16" W x 52" H Approximate shipping weight: 1550 lbs. FEATURES Easy-to-use lever controls Hardened and ground cast-iron bed Cuts 4-112 Standard TPI and 0.1-7 Metric Cuts LH threads On/off reverse switch on carriage Socket for tailstock lock Cast aluminum gear cover STANDARD EQUIPMENT 6" 3-Jaw chuck with reversible jaws 8" 4-Jaw chuck with independent jaws 11" face plate Steady rest/follow rest Full length splash guard Quick change tool post with 2 tool holders (2) MT3 dead centers (1 carbide tipped) (1) MT3 live center (1) MT5 - MT3 sleeve Pull out chip pan 1/2" drill chuck w/ MT3 arbor Toolbox From the Manufacturer G0709 14 inch X 40 inch Gunsmithing Lathe Another great addition to our line of spectacular Grizzly lathes is this 14 inch x 40 inch workhorse. Supplied with an 8-speed gearhead, it also comes with a 2 HP motor, D1-5 spindle with a generous 1-9/16 inch bore, a 200 series quick change tool post with 2 holders, flood coolant system, halogen work light, pull-out chip tray and inch break — great for safety! Plus, the tailstock has a socket for a torque wrench mounted on the front side and the outboard end of the spindle has a spider mount system — great for stabilizing long shafting and rifle barrels. Check out the standard equipment list below. Front View Spider Bolts Construction Hardened and ground cast iron bed and cast aluminum gear cover. Removable gap bed allows turnings up to 19-3/4 inch in diameter. Headstock Fully enclosed headstock features precision hardened and ground gears, D1-5 spindle with 1-9/16 inch bore, centralized controls and universal gearbox, no change gears required. Tailstock Tailstock with V-slide and 1/2 inch square drive socket for precise alignment of centers with a torque wrench (handle included). Spider Bolts 4 brass-tipped spider bolts for supporting barrels. Headstock Standard Equipment 6 inch 3-Jaw Chuck with reversible jaws; 8 inch 4-Jaw Chuck with reversible jaws; 11 inch faceplate; Steady rest/follow rest; Full length splash guard; Quick change tool post with 2 tool holders; 2 MT 3 dead centers (1 carbide- tipped); 1 MT 3 live center; 1 MT5-MT 3 sleevePull out chip pan; 1/2 inch drill chuck with MT 3 arbor; Tool box. Swing over bed: 14" Swing over gap: 19-3/4" Swing over cross slide: 8-13/16" Distance between centers: 40" Bed width: 7-3/8" Spindle bore: 1-9/16" Spindle nose taper: MT5 Spindle nose: D1-5 Camlock Cross slide travel: 6-11/16" Compound travel: 3-9/16" Tailstock barrel taper: MT3 Tailstock barrel travel: 3-15/16" Motor: 2 HP, 220V, single-phase, 10 Amps, 60 Hz, 1725 RPM Number of speeds: 8 Range of speeds: 70-2000 RPM Overall dimensions: 71-1/2" L x 26-3/16" W x 52" H Approximate shipping weight: 1510 lbs. Removable gap bed allows turnings up to 19-3/4" in diameter Easy to use lever controls Hardened and ground cast iron bed Cuts 4-112 Standard TPI and 0.1-7 Metric On/off reverse switch on carriage Halogen work light Outboard spindle has 4 brass tipped screws for supporting barrels Socket for tailstock lock Cast aluminum gear cover D1-5 spindle nose (6 pin) 1-9/16" spindle bore Inch brake
Manufacturer: Grizzly
Part Number: G0709
Item Weight: 1 pounds
Product Dimensions: 76 x 30 x 60.5 inches
Country of Origin: China
Item model number: G0709
Style: Grizzly
Power Source: corded-electric
Item Package Quantity: 1
Batteries Required?: No
Date First Available: June 5, 2013
