DEWALT Router, Fixed/Plunge Base Kit, 12-Amp, 2-1/4-HP (DW618B3)

Features

• 2-1/4 HP (maximum motor HP), 12.0 amp electronic variable speed motor of DEWALT router provides the power to rout smoothly through the toughest hardwoods
• DEWALT plunge router features electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 rpm and soft start to reduce start-up torque for enhanced control
• D-handle incorporates trigger switch with lock-on feature
• Micro-fine depth adjustment ring provides precise depth adjustments in 1/64-inch increments and adjusts vertically for a constant switch/cordset location
• Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
• Integral, through-the-column dust collection collects 95% of the dust and provides superior bit visibility
• Quick release motor latches for fast and easy motor pack removal for bit and base changes
• Detachable cordset offers cordset serviceability and removes the need for a -inchshorty-inch cord motor pack
• Precision machined brass bushings and case-hardened steel guide rods provide a smooth and accurate plunge stroke
• Spindle lock button allows for single-wrench bit changes

Description

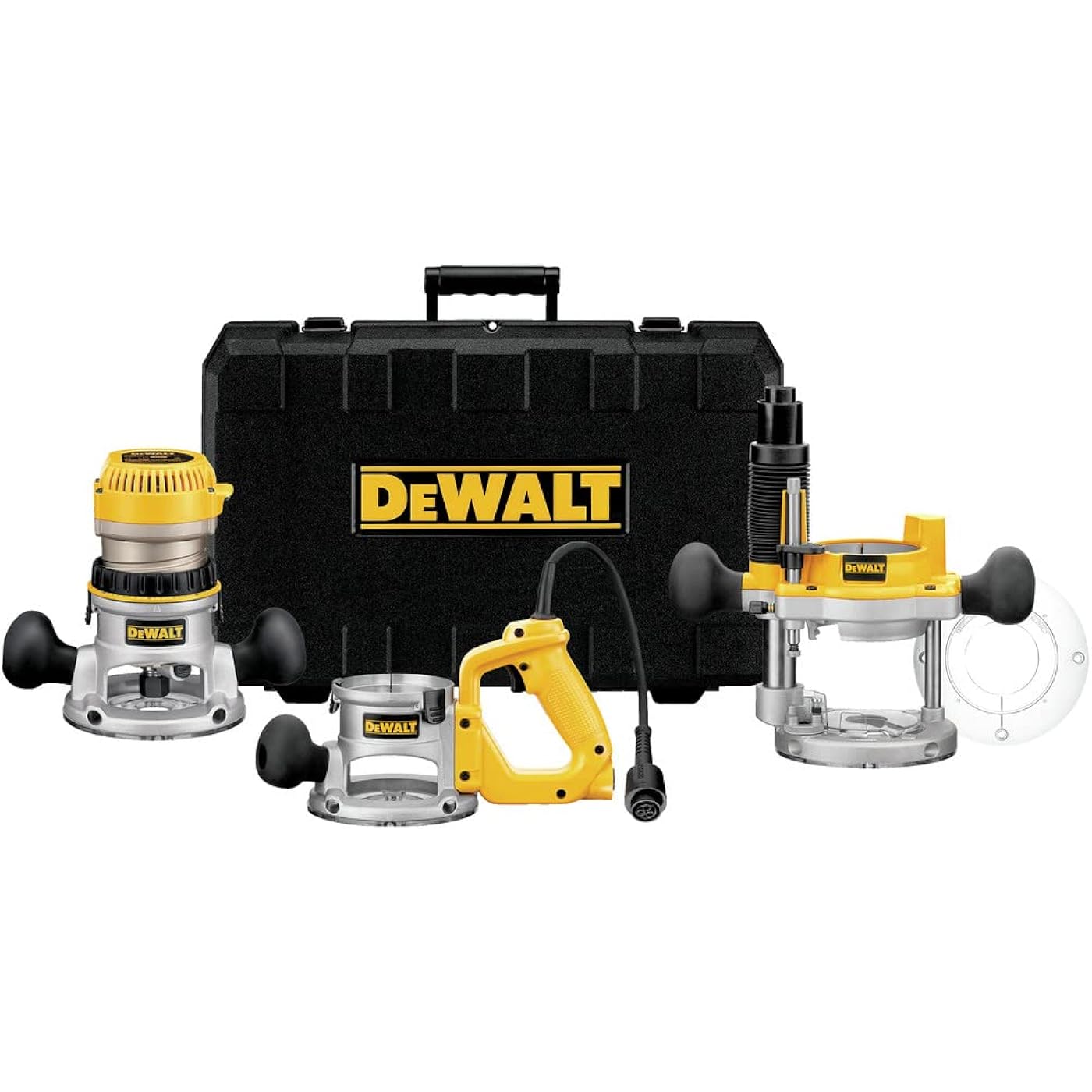

The DW618B3 2-1/4 HP Three Base Router Kit has a powerful motor for routing through tough hardwood at the user's desired speed. Includes fixed, plunge and D-handle bases. DEWALT fixed router features precise depth adjustments and fast, easy motor pack removal for bit and base changes. Offering excellent versatility and professional grade quality, the DEWALT DW618B3 router kit includes three bases that can tackle a wide variety of jobs: a fixed base, a plunge base, and a D-handle base for more precise handling. It features a 2-1/4 horsepower, 12 amp variable speed motor that provides the power to rout smoothly through the toughest hardwoods.Fixed base (view larger). D-handle base (view larger). Plunge base (view larger). DW618B3 2-1/4 Horsepower Three Base Router Kit At a Glance:2-1/4 horsepower, 12.0 Amp motor Includes three router bases: fixed, plunge, and D-handle Electronic variable speed from 8,000-24,000 RPM Easily tackles even the toughest hardwoods Three-year limited warrantyThe 2-1/4-horsepower, 12 amp motor allows the router to cut through the toughest hardwoods. The router's electronic variable-speed trigger lets you select from between 8,000 and 24,000 RPM for specific applications. And because this system employs full electronic feedback, you can trust the router to provide constant speed under load. In addition, the motor's soft start reduces start-up torque for optimum control.The router's fixed base features a micro-fine depth-adjustment ring that provides precise bit adjustments in 1/64-inch increments. Because the ring--not the motor can--turns to adjust bit depth, a constant switch/cordset location is maintained when you are using the router in a table. This minimizes difficulty in turning the unit on and off and keeps operation consistent.The D-handle base also offers 1/64-inch micro-fine depth adjustments, but it's complemented with a two-position, rubber overmolded handle. Combined with a low center of gravity, this D-handle base provides excellent balance and control as well as comfort during long routing jobs.The plunge base features an adjustable five-position turret stop for use when making repeated plunge cuts. It offers a micro-fine depth adjustment of 5/128-inch per turn for precise routing in veneer and inlays. The easy-to- reach plunge-release lever and switch keep control at your fingertips during routing.Quick, Secure Base and Bit ChangesThe clear, LEXAN sub-base offers optimum bit visibility and base durability, and it accepts standard template- guide bushings to make application-specific setups easy. Also, a sub-base concentricity gauge is included. If you insert this into the collet prior to bit installation, it will help you center the sub-base relative to bit location when making your cut line off of the side of the base.Moreover, the sub-base and other included bases are designed to make both base and bit changes easy. Quick-release motor latches allow for fast and easy motor-pack removal, while a spindle-lock button allows for single-wrench bit changes. The fixed base also offers a flat top, so the router can be set upside down for easy bit and depth changes. Additionally, long, self-releasing, eight-slotted collets provide improved bit retention and prevent bits from jamming.Built for Consistency and DurabilityRouting applications produce a lot of dust, which can result in extra wear and tear on electronic parts. That's why this system features a dust-sealed switch that protects against dust ingestion for longer tool life. Other components that contribute to the tool's overall consistency and durability include heavy-duty metal housings, precision-machined brass bushings, and case-hardened steel guide rods on the plunge base.Comfortable Operation with Integrated Dust ControlEach base features comfortable rubber over-molded handles and a low center of gravity for improved balance and control and reduced user fatigue. The base also has a patented through-the- column dust-collection system. This allows a vacuum to be attached to the router without blocking your line of sight.In addition, this router kit offers you the ability to work with the switch and cordset on either your left or right side. Also contributing to this setup's usability is a detachable cordset that can be easily serviced. WarrantyThis DEWALT tool is backed by three-year limited warranty covering any defects due to faulty materials or workmanship (from the date of purchase). What's in the BoxDEWALT Three Base Router Kit with DW618M motor pack; DW6184 fixed base; DW6182 plunge base; DW6183 D-handle base; 1/4- and 1/2-inch collets; operating instructionsPlunge base with Micro-fine depth adjustment for precise routing in veneer and inlays (view larger). P.when('A').execute(function(A) { A.on('a:expander:toggle_description:toggle:collapse', function(data) { window.scroll(0, data.expander.$expander[0].offsetTop-100); }); }); From the Manufacturer DEWALT DW618B3 12 Amp 2-1/4 Horsepower Plunge Base and Fixed Base and See more

Brand: DEWALT

Material: Blend

Power Source: Corded Electric

Product Dimensions: 24"W x 7.75"H

Voltage: 120 Volts

Brand: ‎DEWALT

Material: ‎Blend

Power Source: ‎Corded Electric

Product Dimensions: ‎24"W x 7.75"H

Voltage: ‎120 Volts

Horsepower: ‎2.25 Horsepower

Maximum Rotational Speed: ‎24000 RPM

Amperage: ‎12 Amps

Base Type: ‎Fixed, Plunge

Battery Description: ‎Corded electric

Color: ‎Multi

Global Trade Identification Number: ‎09

UPC: ‎028877463209

Manufacturer: ‎DEWALT

Part Number: ‎DW618B3

Item Weight: ‎27.2 pounds

Item model number: ‎DW618B3

Is Discontinued By Manufacturer: ‎No

Size: ‎One Size

Style: ‎Router

Finish: ‎Brushed

Pattern: ‎Solid

Shape: ‎Rectangular

Item Package Quantity: ‎1

Special Features: ‎plunge

Included Components: ‎DW618M motor packDW6184 fixed baseDW6182 plunge baseDW6183 D-handle base1/4" and 1/2" colletsWrenchLarge hole sub baseVacuum adapterKit Box

Batteries Included?: ‎No

Batteries Required?: ‎No

Description Pile: ‎Corded electric

Date First Available: July 2, 2004
