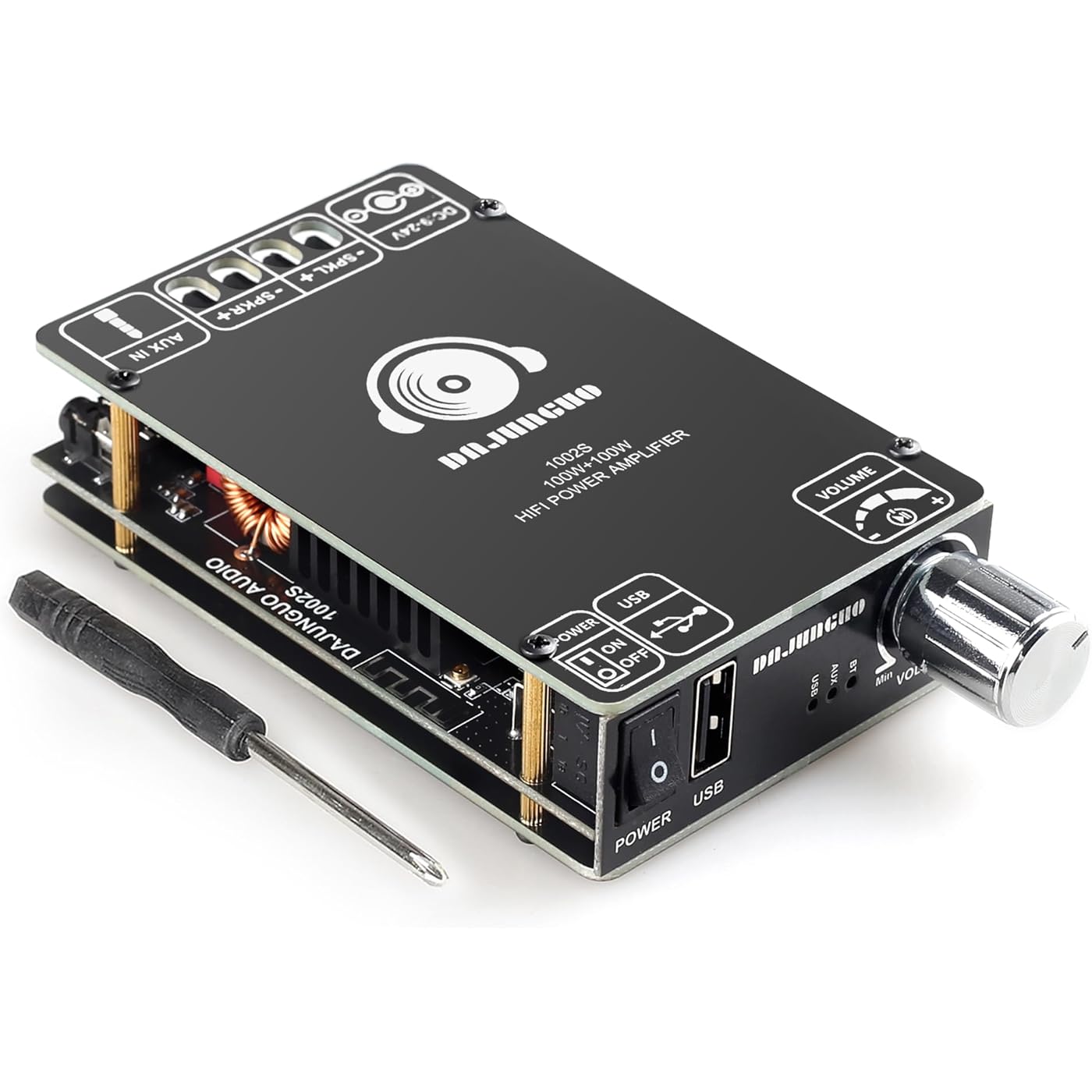

DAJUNGUO 1002S 2.0 Bluetooth Amplifier Board with Dual TPA3116D2 Chips, 100W+100W Power Output, Wide Voltage Range of 9-24V DC, Bluetooth/USB/3.5mm AUX Input Modes Supported

Features

• Dual Hifi-grade TPA3116D2 ChipsThis amplifier board features two TPA3116D2 chips, offering a wide voltage input range: DC 9-24V, with a peak output of 100W+100W @ 1kHz, 21V, 4-ohm speakers.
• Multiple Input MethodsThe amplifier board supports various input methods, including Bluetooth input, 3.5mm AUX input, USB input, and more. It is compatible with a wide range of devices such as smartphones, tablets, laptops, MP3 players, etc. You can easily switch between your preferred audio input methods.
• Input Mode Indicators + Upgraded DC SocketThe amplifier board incorporates different indicators for a more intuitive understanding of the current input mode. The upgraded DC socket ensures spark-free power connection, enhancing safety and reliability.
• Supports Multiple Music FormatsWhen playing music from a USB flash drive, the 1002S amplifier board supports music formats such as MP3, FALC, MAV, APE. Note: For formats like FLAC, the music bitrate should be within 1500kbps, and for MAV, the sampling rate should be within 44100Hz. The USB flash drive must be formatted in FAT32 and have a capacity of 32GB or less.
• 7 * 24 Hours After-sales Service Paying Attention To Customer Experience And Satisfying Customers Is Our Service Tenet. If You Have Any Questions About The Product, or The Product Has Quality Problems, Please Contact Us At Any Time, We Will Give You A 100% Satisfactory Answer.

Description

Key Features of Our Amplifier Board - 1002S - Single Click: Pause/Play - Double Click: Play the next music track - Triple Click: Play the previous music track - Quadruple Click: Switch input mode - Quintuple Click: Restore Factory Settings (Generally used for forgotten passwords or if the amplifier board has been inadvertently connected by someone else) - Long Press: Standby/Power On Through a USB flash drive, you can play music files in MP3, WAV, APE, and FLAC formats. It's important to note that your USB flash drive must be formatted as FAT32 and should not exceed 32GB in capacity. When playing lossless music files, the sampling rate should be below 44100Hz, and the bitrate should be below 1500kbps. To enhance the convenience of your speaker do-it-yourself (DIY) endeavors, we've ingeniously transformed the bottom plate of the amplifier board into a front panel. This eliminates the need for you to undergo the laborious process of drilling holes during the DIY phase. Follow these simple steps: 1. Remove the bottom plate. 2. Utilize tools to drill through the pre-designated holes on the bottom plate. 3. Take off the original small front panel. 4. Replace it with a larger front panel, which is essentially the modified bottom plate. This thoughtful design streamlines the DIY process, making it more accessible and efficient for creating your custom speaker setup. Upgraded DC socket, with no spark generated when powered on, more stable and reliable, with a specification of 5.5x2.5mm Launched by TI, with very high index parameters. The highest modulation frequency can reach 1.2MHZ, and the high-power output distortion is less than 0.1% We have designed a power switch for the amplifier board, making it more convenient for you to turn it on and off.

Item dimensions L x W x H: 4.33 x 2.32 x 0.9 inches

Voltage: 24 Volts

Manufacturer: DAMGOO

Maximum Supply Voltage: 24 Volts (DC)

Minimum Supply Voltage: 9 Volts (DC)

Voltage: 24 Volts

Maximum Supply Voltage: 24 Volts (DC)

Minimum Supply Voltage: 9 Volts (DC)

Mounting Type: Surface Mount

Number of Channels: 2

Output Power: 200 Watts

Maximum Output Power: 200 watts

Item Dimensions: 4.33 x 2.32 x 0.9 inches

Manufacturer: DAMGOO

Model: 1002S

Brand Name: DAMGOO

UPC: 194852391512

Part Number: 1002S

Included Components: AMPLIFIER BOARD

Unit Count: 1.0 Count
