Size: ER11
Color: 500w ER11 Kit
Features
- Spindle: 3 Wires-Brush-less, 500w, ER11, 48v DC, 0-12000RPM, 2-3/16"
- Mach3 control: Support Mach3 control motor after driver upgrade, Reference manual for wiring
- Speed Readout: Come with the LCD display, Real-time read spindle speed.
- Quiet and Efficient: Smooth running, Spin up fast and have minimal vibration.
- Cost-effective: Without Brush, maintenance-free, removal dust when necessary.
Description
1 X 500w ER11 Brushless Spindle 1 X Driver 1 X Power Supply 1 X LCD Speed Display 1 X 55mm Clamp 10 X V Bit Cutter 13 X ER11 Collets Daedalus focuses on CNC spindles and CNC accessories, providing CNC creators with light and small CNC machines to help them realize their ideas more easily. Great value to upgrade and get a bigger 3018 cnc
Brand: Daedalus
Model Name: 500w ER11 Kit
Speed: 12000 rpm
Voltage: 48 volts
Horsepower: 500 watts
Brand Name: Daedalus
Model Name: 500w ER11 Kit
Model: BLDC-500-ER11
Manufacturer: Daedalus
UPC: 717066357046
Unit Count: 1 Count
Included Components: CNC Spindle, CNC Spindle Mount Bracket, Switch Power Supply
Part Number: 6
Speed: 12000 rpm
Voltage: 48 volts
Horsepower: 500 watts
Item Weight: 6.3 pounds
Shaft Diameter: 7 millimeters
Material Type: Aluminum
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Sunday, Sep 6
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- Zip Pay in 4
- Financing through Apple Pay
- Financing through Google Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Size: ER11
Color: 500w ER11 Kit
Swapped this from an 80w spindle... No machine should come with less than a 500w LOL Everything wired up easily to my current setup of a TTC450 Pro. I'm easily cutting detailed material at 400in/min with a 2.5mm 2 flute flat endmill bit, and I think from the sound is still pretty slow. I would like to see this setup come standard with an enclosure, but that's what 3D printing is for LOL. Spindle is rated for 12k RPM, hasn't been an issue with any hardwood or acrylic for me. Definitely happy with this!
...
show more
Reviewed in the United States on March 1, 2025 Reviewed in the United States on March 1, 2025 by djeclipse25
Size: ER11
Color: 500w ER11 Kit
Its a nice spindle for the money! A key feature: the ER11 is cut directly into the spindle, not a separate part! The bearings are just deep groove ball bearings: 6002ZZ on the ER end and 6900ZZ on the fan end. A fiber washer is used to shim the top and a wave washer is used to preload the bottom bearing outer race upward. The runout isn't bad, but its irritating if you are using skinny engraving cutters. I measured 0.0005" Total Indicator Reading (TIR) on the spindle OD near the bearing and 0.0007" TIR on a 1/8" diameter tool shank clamped in the collet. The 600 Watt motor read 0.0004" TIR on the spindle OD and 0.008" TIR on the same tool. With the 600 Watt motor clamped in a V-block I was able to move the spindle up and down for a total radial motion of 0.008", measured on the tool. In use, a 0.2mm tip 15 degree V bit at 0.8mm depth produced an effective cut width at the surface of 0.55mm. This should be more like 0.41mm. My results with a 30 degree 0.1mm tip bit were worse: I have both the 500 and 600 Watt motors; the only visible difference is the 600 Watt one is longer. The internal photos are of the 600 Watt motor; the other one is installed on my CNC router. The 600 Watt motor is trifilar wound with all the coils going to a single center tap which is not brought out of the motor. I soldered onto the center tap and measured each coil group: at 2.4 Volts and 9.7 Amps or 0.24 Ohm. Measuring from wire to wire (with less current) I got 0.37 Ohm. All the measurements were very close to each other. My biggest gripe: the air cooling holes on the top are MUCH larger than the bottom. I drilled out my 600 Watt motor's end cap to 1/4" on all 6 holes to improve the air flow. You can remove just this end by pulling three super-long screws; it comes right off. Be SUPER careful about keeping magnetic junk away from the rotor if you pull it out! Clean it with blue tape if you do pull it out! For some reason I get 12,000 RPM on the display (and it sounds fast) with the 500 Watt motor but only 8,000 on the 600 Watt motor (same driver). This is a step up from the brushed DC ER11 spindles (with the pressed on adapter), but its NOTwhat you are looking for if you need zero runout. This has runout and slop, but its good enough on my belt driven CNC!
...
show more
Reviewed in the United States on November 1, 2020 Reviewed in the United States on November 1, 2020 by WeldingRod
Size: ER11
Color: 500w ER11 Kit
Max RPM is 10100... where did the 1900 RPM go??? You can stop it with two fingers
Reviewed in the United States on April 5, 2023 by robert maric
Size: ER11
Color: 500w ER11 Kit
Overall works well. Make sure you set the power supply to the correct voltage setting otherwise it will limit the motor performance. Includes cables for the controls even though the description doesn’t specify.
Reviewed in the United States on January 23, 2024 by Person
Size: ER11
Color: 500w ER11 Kit
UPDATE: Original PSU was faulty and capable of only delivering 30V under load, substituting with a known good PSU resolved all issues including starting at maximum RPM from zero. Actually now peaking at 12,700 RPM. Seller is responsive but time zone is a challenge (China based). Very nicely packaged, having a good set of ER11 collets plus some engraving bits is a nice touch. I will probably only ever use the 1/8” (3.175mm) and 1/4” (6.35mm) collets though. Testing minimum speed I determined it was useable from about 600 RPM, anything below that it would stall very easily. Maximum speed was confirmed with my digital tachometer. Runs very smoothly and so much quieter than my Makita Router it is replacing, and being able to set speeds below 10k RPM should be a big plus!
...
show more
Reviewed in the United States on December 30, 2022 by R. Enkel
Size: ER11
Color: 500w ER11 Kit

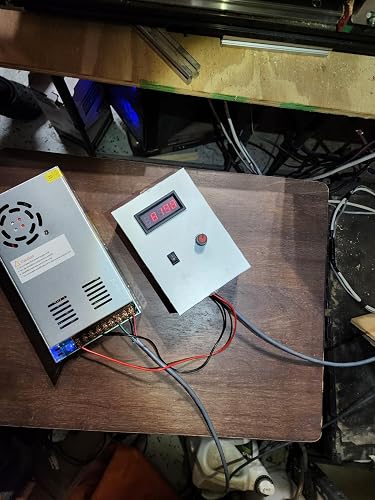

After hooking up the motor as per instructions, 3D printing a box for the potentiometer, tachometer, and on/off switch (all included), the motor is purring and very quiet. RPM's were a little more than advertised after running for 10 mins. Temperature wasn't too bad over all - precisely 112 degrees Fahrenheit. Overall not bad. Got what I paid for.
...
show more
Reviewed in the United States on May 4, 2025 Reviewed in the United States on May 4, 2025 by Amazon Customer
Size: ER11
Color: 500w ER11 Kit
Motor ran but very slowly. Can only achieve about 3500RPM then in pulses on and off and when using the pot to adjust to a higher speed it just quits and needs to restart, which it only does sometimes??? Build quality looks good and runs very smoothly and quietly, when it runs?? Very disappointed in this product!!! Purchased a second controller to ensure original was OK, same issues. Not sure if this is a bad spindle?? Will have to reach out to see if they can replace it or offer some guidance on what is wrong??
...
show more
Reviewed in the United States on February 16, 2022 by K Doerr
Size: ER11
Color: 500w ER11 Kit
Llegó tal cual se anuncia. Con todos los elementos indicados y en muy buen estado.
Reviewed in the United States on April 17, 2023 by David B.
