Battery Charger Switch - 5 Position Replacement Switch Kit fits Various Battery Chargers by PowerForged
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
At a glance
- Condition
- New
- Weight
- 0.27 g
- Color
- BLACK
- Material
- Bakelite, Metal
- Operation Mode
- Off
- Current Rating
- 20.2 A
- Operating Voltage
- 250 volts
- In the box
- SwitchKnobNutWasher
- Works with
- Battery Chargers
Features 8
- 5-position rotary action, 1 "OFF" position and 4 "ON" (contact) positions
- Mounts easily in 7/16" panel hole with included panel nut and lock washer
- 1/4" (6MM) shaft with flat - Push-On Knob included
- Electrical Rating: 20.2A 125/250VAC (UL, C-UL)
- Industry-Standard 250" Push-On Connectors
- Indexing Tabs prevent rotation and misalignment
- Manufactured to meet or exceed industry standard
- Sold, Shipped, and Supported by PLP Battery Supply in Murphysboro, IL, USA. Questions? We are real people, based in the U.S.A. Our phone number and email is included with every product.
Description

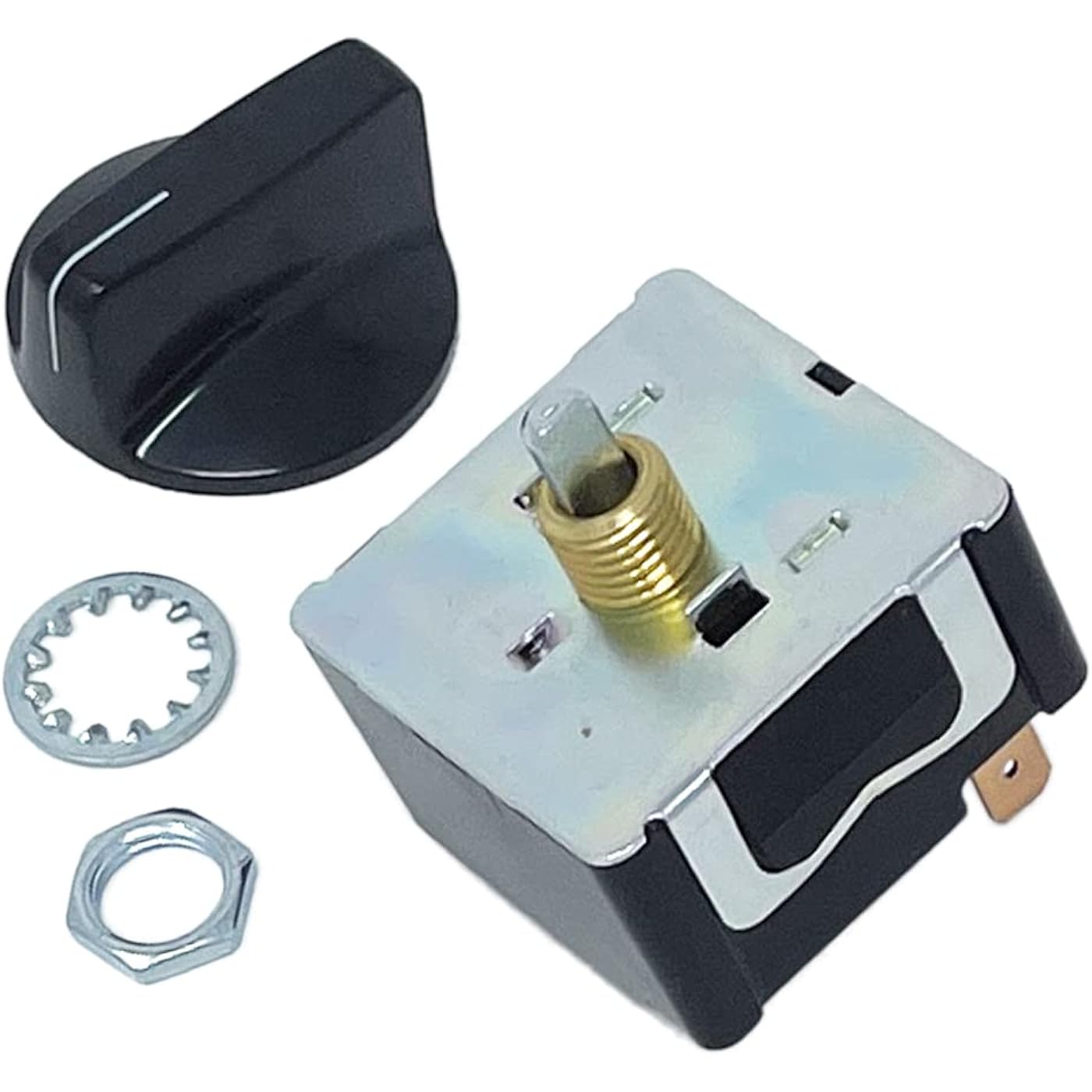

This rugged rotary switch is a favorite for replacing obsolete charge rate switches in various battery chargers. It can be used as a cost-effective retrofit to replace more expensive OEM switches in many brands. Designed to be easy to install through a 7/16" stem-mounting hole and retained with a panel nut. The wire terminals use industry-standard solderless .250" push-on connectors. This switch has an OFF position and 4 power positions that are spaced in 60° increments across a 240° arc. When oriented with the OFF position at 12 o'clock, the 4 contact positions are at 2, 4, 6, and 8 o'clock. The switch may be rotated to accommodate chargers that have the OFF position labeled at other clock positions on the charger cabinet. For example, if OFF is located at 8 o'clock on the charger, this switch may be installed to align with OFF at 8 o'clock and the power positions would then be at 10, 12, 2, and 4 o'clock. NOTE: No specialty tools are required. Drilling of the cabinet may be necessary, using 1/4" and 7/16" drill bits. Drilling instructions and template are provided in the instructions.This switch is a good choice as a non-OEM replacement for obsolete switches in older battery chargers. Instructions are included to assist in determining proper wiring connections for these retrofit applications. The instructions require the use of a multimeter. NOTE: Effective May 2026, this switch is shipping with a friction- fit push-on knob with a spring-steel insert. It has the same appearance as the set-screw knob, but it is easier to install and will not work loose over time. The part number for the new knob is 696554. Specifications SWITCH SPECIFICATIONS Electrical Rating: 20.2A 125/250VAC (UL, C-UL) Contact Resistance: DC 2-4V 1A 30mΩ or less Insulation Resistance: DC 500V 100MΩ or more Withstand Voltage: AC 1500V or more for 1 min. Operating Temperature: 32~131° F, 0~55° C Electrical Life: 6,000 cycles Materials: Steel faceplate, Bakelite housing Certifications: UL E68037, C-UL E68037 Terminals: 0.250" Fast-On Terminals Length (in): 1.65 (42.0 mm) Width (in): 1.69 (43.0 mm) Height, without stem (in): 1.40 (35.6 mm) Height, with stem (in): 2.03 (51.6) Weight (lbs): 0.14 (64 g) Stem Material: Steel Stem Diameter (in): 0.236 (6.0 mm), flatted to 0.1575 (4.0 mm) Stem Length Total (in): 0.63 (16.0 mm) Stem Length from Bushing (in): 0.30 (7.5 mm) Stem Flat Orientation: 180° (opposite knob pointer) Securing Nut: 7/16"-20 Panel Nut Index Tab Location: On the 12 o'clock to 6 o'clock centerline, 7/8" (20.0 mm) on center SHAFT/TERMINAL POSITIONS (Switch oriented with OFF at 12 o'clock) Position 1: 0° (12 o'clock), Output Terminal - NA Position 2: 60° (2 o'clock), Output Terminal - 2 Position 3: 120° (4 o'clock), Output Terminal - 4 Position 4: 180° (6 o'clock), Output Terminal - 6 Position 5: 240° (8 o'clock), Output Terminal - 8 What's in the Box 1 - 5-Position Rotary Switch, Panel Nut Mount 1 - 7/16"-20 Panel Nut 1 - 7/16" Internal-tooth Star Lock Washer 1 - Push-On Skirted Knob 1 - Instruction Sheet
Specs 33
| Operation Mode | Off |
|---|---|
| Current Rating | 20.2 A |
| Operating Voltage | 250 volts |
| Contact Type | Normally Open |
| Connector Type | Push-on |
| Brand | PowerForged |
| Switch Type | Rotary |
| Terminal | Spade |
| Material | Bakelite, Metal |
| Circuit Type | 4-way |
| Mounting Type | Panel Mount |
| Actuator Type | Rotary |
| Insulation Resistance | 1000 megaohms |
| Number of Positions | 5 |
| Lower Temperature Rating | 32 °F |
| Upper Temperature Rating | 131 °F |
| Controller Type | Push Button |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Compatible with Vehicle Type | Multiple vehicle types |
| Control Type | Manual |
| Unit Count | 1 Count |
| Number of Items | 1 |
| Material Type | Bakelite, Metal |
| Contact Material | Copper |
| Specification Met | UL, cUL |
| Brand Name | PowerForged |
| Model | 697012 |
| Manufacturer | PowerForged |
| UPC | 681573910417 |
| Item Weight | 0.27 g |
| Part Number | 697012 |
| Color | BLACK |
