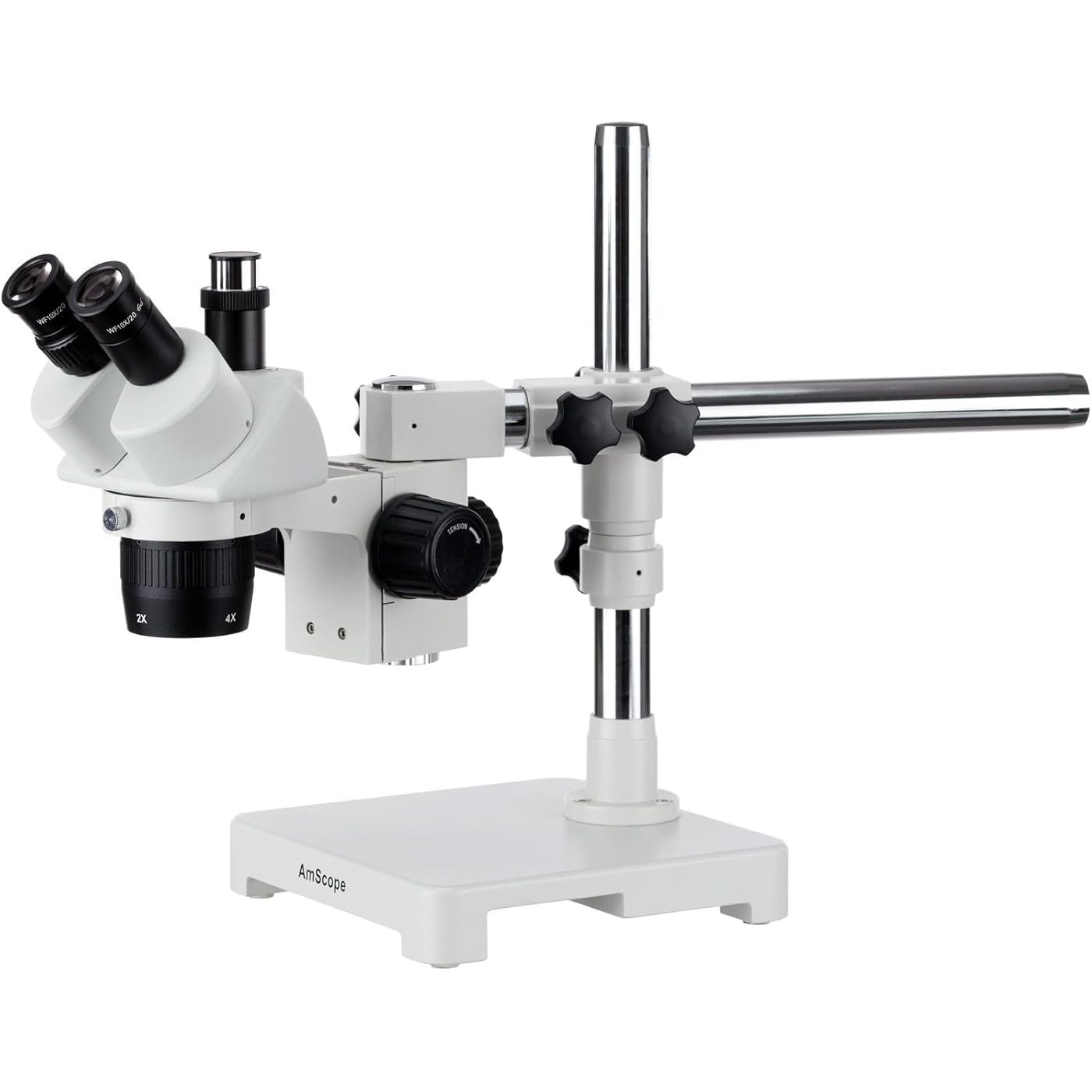

AmScope SW-3T24Z Trinocular Stereo Microscope, WH10x Eyepieces, 20X/40X/80X Magnification, 2X/4X Objective, Single-Arm Boom Stand, Includes 2.0x Barlow Lens

Features

• Stereo microscope for home or classroom use enables students and hobbyists to inspect biological specimens, rocks, stamps, jewelry, and large specimens that require handling or manipulation
• Trinocular viewing head with pair of 10x super-widefield high-eyepoint eyepieces, adjustable interpupillary distance, and 45-degree inclination to simplify viewing for young users
• 2x/4x objective provides low magnification and longer focal length for inspecting large-scale specimens, and a 2.0x Barlow lens extends the magnification range
• Ambient lighting illuminates the specimen, eliminating the need for power or batteries
• Single boom arm with 8" vertical working distance and adjustable 16" boom arm enables users to adjust the microscope on the X- and Y-axis

Description

The AmScope SW-3T24Z trinocular stereo microscope head has a 2x/4x objective, a pair of 10x20mm widefield high-eyepoint eyepieces, a 2.0x Barlow lens, and a single-arm boom stand. The microscope head has a 3" O-ring style mounting ring. The trinocular viewing head has an interpupillary range of 47 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The WF10x20mm super-widefield high- eyepoint eyepieces combine with the 2x/4x objective to provide 20x, 40x, and 80x magnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope includes a 2.0x Barlow lens that can be added to the objective to increase the magnification range. A Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. The optical glass lenses provide sharp images, and are fully-coated to ensure high-resolution images. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected. Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The microscope has a 17" pillar that has an 8" vertical working distance. The 16" single-arm boom has a 24" overall length. Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axis. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).SpecificationsHeadTrinocularMagnification20x, 40x, 80xObjective power 2x/4xEyepieces (30mm)WH10x20mmTrinocular portC-Mount or 23mmOptical working distanceUp to 4"Field of view0.787" at 10xMicroscope standSingle-arm boom standHead movementX- and Y-axesIllumination typeN/ALight sourceAmbientPowerN/A Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What's in the Box?Trinocular stereo zoom head with 2x/4x objectiveWH10x eyepieces, one pair2.0x Barlow lensSingle-arm boom stand with focus rackEye guards, one pair

Light Source Type: LED

Model Name: SW-3T24Z-FRL

Material: Steel

Color: clear

Real Angle of View: 45 Degrees

Magnification Maximum: 80 x

Item Weight: 3.3 Pounds

Voltage: 220 Volts

Brand: AmScope

Objective Lens Description: Achromatic

Product Dimensions: 20.69 x 17.69 x 19.46 inches

Item Weight: 3.25 pounds

Item model number: SW-3T24Z

Batteries: 2 AA batteries required.

Is Discontinued By Manufacturer: No

Date First Available: March 3, 2011

Manufacturer: United Scope LLC.

Country of Origin: China
