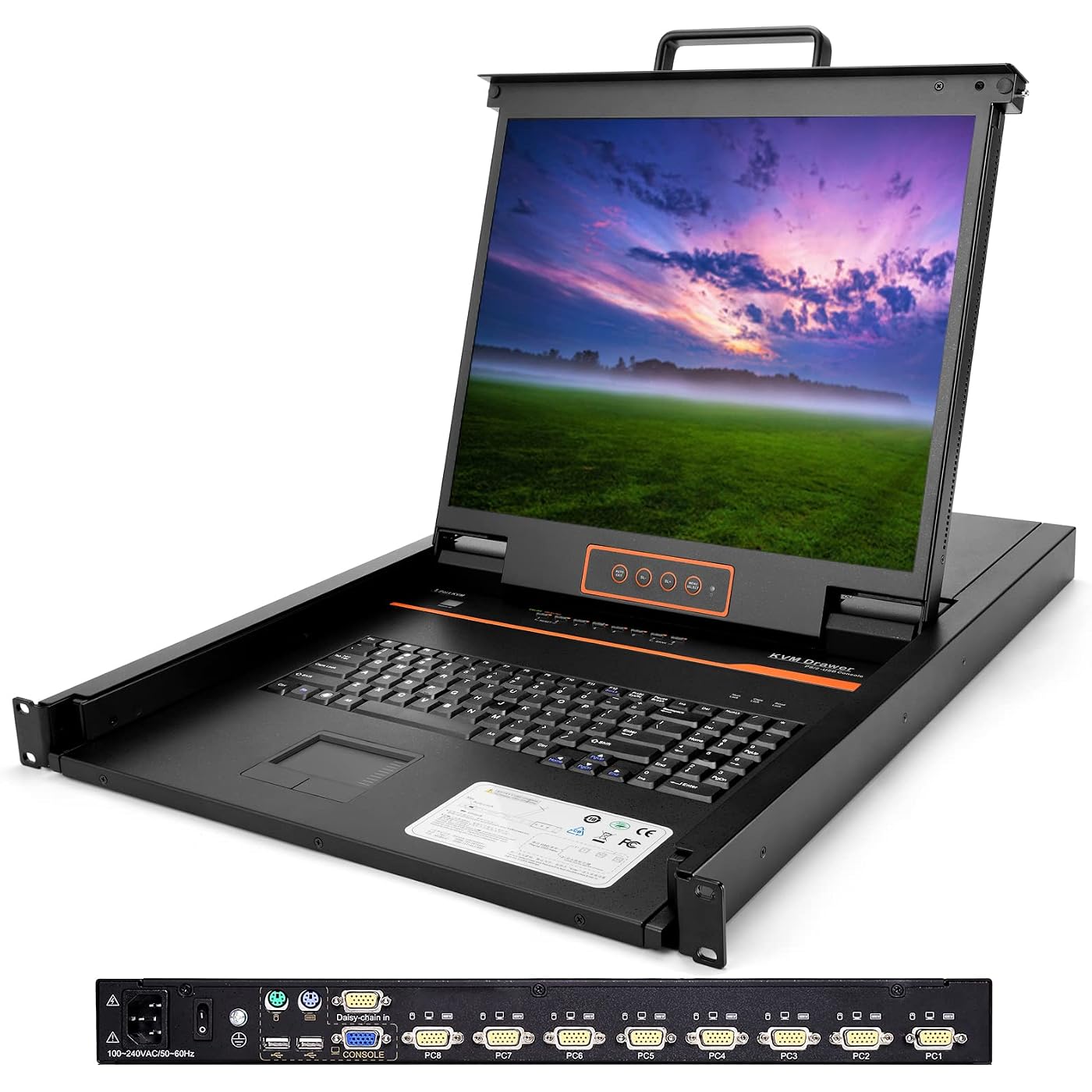

1U Rack Mount KVM Console Built-in 8 Port VGA KVM Switch, 19" Rackmount Monitor Keyboard Touchpad, OSD/Hotkey/Button Switch,1280X1024@60Hz 5:4 Ratio, Incl. Cables,Compatible with Windows,Linux,Mac,Sun

Features

• All-in-One Solution: The 1U Rack Mount KVM Console is an all-in-one solution featuring a 19" LCD monitor, keyboard, touchpad, and 8-port VGA KVM switch, all within a slim 1U rack space. It allows access, management, and control of up to 8 computers from a single console. Compatible with a wide range of operating systems, including Windows, Linux, Mac, and Sun.
• Three Switching Methods: switch between computers using front panel buttons, keyboard hotkeys, or on-screen display (OSD). Plug and play. The OSD menu includes various management functions such as Auto Scan for monitoring selected computers, BRC Mode for simultaneous monitoring of multiple computers, and Load Default to reset settings. Ideal for maximizing efficiency and ease in IT management.
• 19 Inch Rackmount Monitor: Featuring high resolution 1280x1024@60Hz, 16.7M Display Colors, and a 1000:1 Contrast Ratio. With a swift 5ms response time and wide 85/85/80/80 (L/R/U/D) viewing angles, it ensures vibrant visuals from any perspective. The LCD module rotates up to approximately 110 (108 recommended), ensuring optimal viewing comfort, perfect for monitoring multiple servers/PCs.
• KVM Drawer Size: 17.6"23.8"1.67"(W x D x H); Mount depth: 28.2" to 32.5", ideal for standard 19" wide rack cabinets. Features Auto-Lock Slide Rails for stability: 1.Pull out the KVM console drawer until the slide rails are automatically locked. 2.After use, release the lock to push the console into the rack,ensuring smooth operation and security.
• The KVM console products possess a variety of international certifications, including UL, FCC, CE, CB, UKCA, PSE, SAA, and RoHS2.0, ensuring superior performance and reliability, while the company holds ISO9001:2015 and ISO14001:2015 certifications, and this KVM console comes with a 2-year warranty.

Operation Mode: ON-OFF-ON

Contact Type: Normally Open

Connector Type: Vga

Brand: Kinan

Switch Type: Slide

Terminal: Screw

Material: Alloy Steel

Item dimensions L x W x H: 17.6 x 23.8 x 1.67 inches

Circuit Type: Push button, hotkey, OSD menu

Mounting Type: 1U Rack Mount

Operation Mode: ON-OFF-ON

Contact Type: Normally Open

Connector Type: Vga

Switch Type: Slide

Terminal: Screw

Circuit Type: Push button, hotkey, OSD menu

Mounting Type: 1U Rack Mount

Actuator Type: Push Button

Number of Positions: 8

Upper Temperature Rating: 50 °C

Controller Type: Front panel buttons, hotkeys, OSD menu

Control Method: Push Button, Touch

Connectivity Protocol: Vga

Wattage: 21 watts

Control Type: Full

Compatible Devices: Windows, Linux, Mac, Sun, Lenovo, Huawei, HP, IBM, Cisco, Dell

Color: Black

Item Dimensions: 17.6 x 23.8 x 1.67 inches

Unit Count: 1 Count

Number of Items: 1

Material Type: Alloy Steel

Contact Material: Alloy Steel

International Protection Rating: IP54

Specification Met: Rohs2.0, Ul, Fcc, Ce, Cb, Ukca, Iso 9001, Iso 14001

Brand Name: Kinan

Model: XL1908

Manufacturer: Kinan

Warranty Description: 2 year manufacturer

UPC: 705495060316

Included Components: 8 Port KVM Console x1 , VGA Cables x8, Power Cord x1 , Brackets x2

Item Weight: 15 kg

Part Number: Kinan-XL1908
