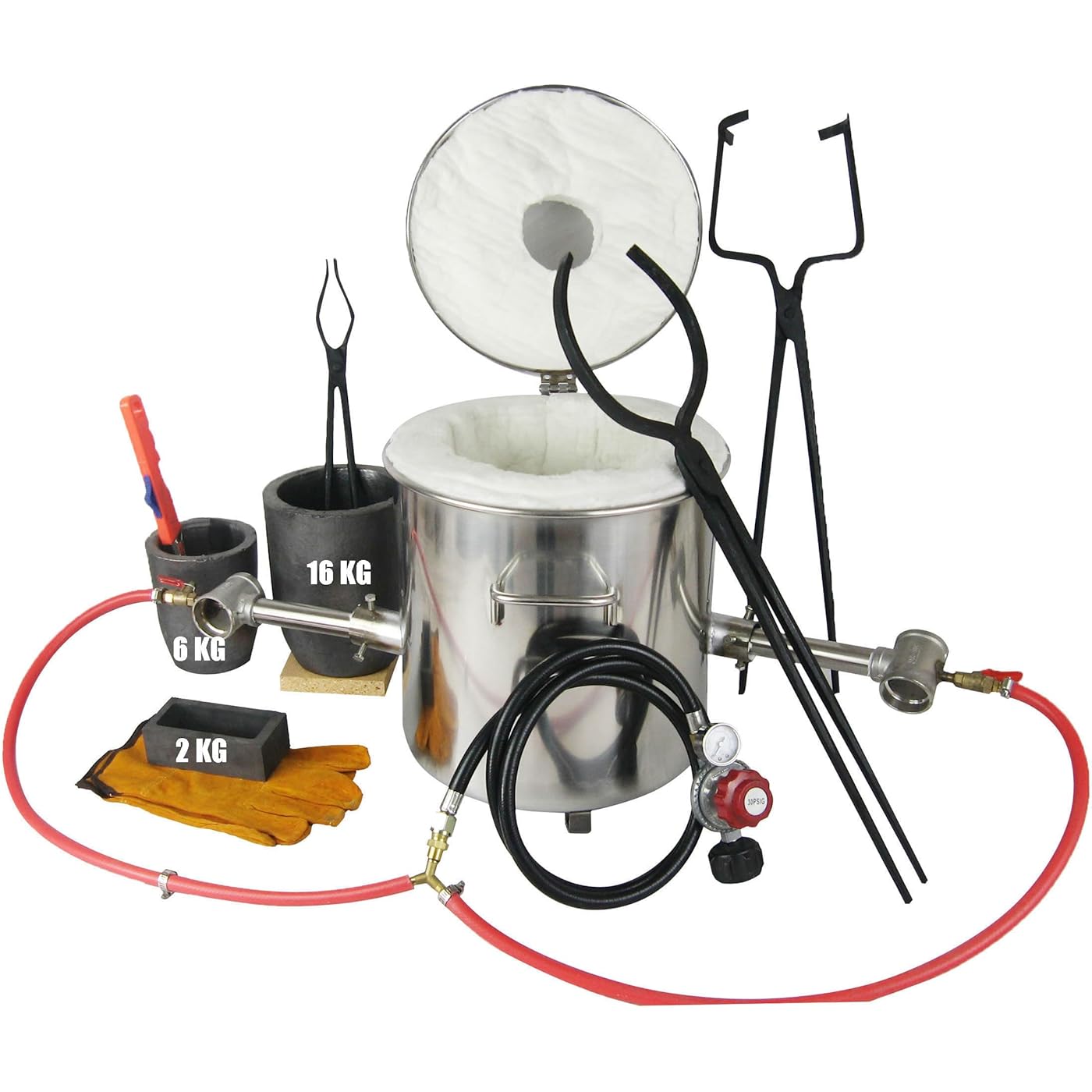

16KG(35LBs) Large Capacity Propane Furnace w/Tongs & Crucible for Gold Silver Jewelry Making Foundry Furnace Kiln Metal Smelter Scrap Metal Recycle

Features

• UNIQUE TO THE WHOLE NETWORK LSMIITTH dual gas burner is made of stainless steel. Each burner is about 100000 BTU.Compared with the single burner furnace, the flame is evenly distributed on both sides. Fast melting can save 50% of the time and 20% of the gas cost; Unlike other burners, LSMIITH uses a replaceable bell burner head, it is connected through threads, easy replace
• Premium QualityFurnace body is made of stainless steel( 1mm thick) ,highly resistant to corrosion, lightweight and strong enough to 170LB people standing.Outside Dimensions : 12" diameter x 15" height ; Inner Dimensions: 8" diameter x 10"Height; Furnace body and lid are fully lined with 2 inch of ceramic fiber insulation. Furnace floor lined with 3 inch of ceramic insulation and firebrick . (which can withstand high temperatures of 2642F (1450 C) , and is a replaceable inner wall material.
• READY TO GO MELTING KITPropane melting furnace can be heated up to 1300 C / 2372 F and can melt metals with a melting point below 1300 C in 15-20 Minutes such as gold, sterling silver, pure copper, lead , aluminum.Crucibles are consumables, so we have two crucibles,one 16kg/55lbs crucible can melt 16KG copper, 30KG gold, 4.8KG aluminum, 19KG silver, 6kg/13lbs Crucible can load 6KG copper,11.2KG gold, 1.8KG aluminum, 7KG silver. Attention: It can not melt steel, iron.
• Turn TRASH into treasureFoundry Metalwork is surprisingly easy and affordable, and well with LSMIITTH -F616 full line of furnaces and smelting products, you can easily make turn scarp metal into something fancy artwork, like ingots, special parts and and 3D casting ornaments. METAL MELTING MADE EASY!
• After-sale serviceLSMIITTH provide one year warranty after sales and lifetime technical support.

Description

LSMIITTH are engaging in metal smelter kit for home, hobby, and commercial use for many years. We are the first one to sell melting furnace with burners on both side, which ensures complete combustion of the metal in shortest time and save 20% gas consumption. Dual Burner Melting Furnace has a Large Large capacity, could contain 6KG to 16KG crucibles. The crucible tongs jaw size are 6 inch, they are perfect for the Lsmiitth crucibles of 10KG/12KG/16KG, which outer diameter ranges from 6inches to 6.3inches. Attention: Different brands of crucibles may have different sizes. You need ensure that this foundry tongs fully fit your crucibles before use 1. Put the coupler (the bell shape flame outlet) inside the hole 2. Slide the steel pipe through the hole 3. Screw into the coupler by thread 16KG Melting Furnace Kit 16KG Smelting Furnace Kit 16KG Foundry Furnace 25KG Large Furnace 6KG Melting Furnace Kit 16KG Propane Furnace 8KG Double Burner Furnace Do you need to use refactory cement/ridgidizer on this? It is totally up to you. It just be another layer of good maintenance for longevity. Can this melt cast iron? No, the furnace maximum tolerable temperature is 1450°C(2642°F). But the melting point of iron is 2372℉(1300℃) Pressure regulator stopped regulating the pressure, the flames went from a roaring jet sound down to a gentle flame. The regulator turn to protection mode because of excessiv air flow or air leak. Confirm there is no gas leak, and use a needle or wire to push the hole on the regulator (the end to connect the gas tank). How do to keep the propane tanks/regulator from freezing? 1. Stoping melting every 30 mins; 2. Do not release gas too fast. Adjust the gas regulator, set the regulator from 0psi to 3psi and to 5psi. Pressurize slowly; 3. Use a warm towel to cover the burner during melting. LSMIITTH Professional Metal Smelting Furnace Kit, Full Foundry Tools and Casting Accessories Visit the Store LSMIITTH have years of experience engage in metal smelter kit for home, hobby, and commercial use. Furnace, forge, burner, crucilbles, and crucible tongs all are availabel globally. We are the first one to sell melting furnace with burners on both side, which ensures complete combustion of the metal in shortest time and save 20% gas consumption.

Color: Stainless Steel

Brand: LSMIITTH

Item Weight: 7 kg

Product Dimensions: 12"L x 12"W x 15"H

Material: Stainless Steel

Brand Name: LSMIITTH

Model Number: F3+HQ-M

Manufacturer Warranty Description: Manufacturer warranty for 30 days from date of purchase

Manufacturer: LSMIITTH

UPC: 706696157744

Item Type Name: Gas Metal Melting Furnace

Manufacturer Part Number: F3+HQ-M

Item Weight: 7 kg

Item Dimensions L x W x H: 12"L x 12"W x 15"H

Color: Stainless Steel

Material Type: Stainless Steel

Maximum Temperature: 2642 °F
