0.96 inch OLED i2c Display Module IIC Serial LCD Screen 0.96" LED Module Display Yellow Blue 12864 OLED /3.3V-5V 128 X 64 Compatible with Nano Display Raspberry Pi 51 Msp420 Stim32 SCR
Condition: New
Buy Now, Pay Later
As low as
$1
/ mo
Learn more
- – 4-month term
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
Selected Option
Free shipping on this product
30-day returns
Learn more
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Availability:
In Stock.
Arrives
Sunday, Sep 14
Color: Multicolored
Features
- This i2c display module is 0.96 inch diagonal,Resolution: 128 x 64, View angle: > 160, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W,Color:Yellow Blue
- The IIC address can be changed,it is convenient to use with different machines Four square holes are easy to install
- 0.96 Inch OLED module for showing graphical & textual information directly on your micro-controller projects. It compatible with Raspberry pi, 51 MCU, STIM 32
- Low-power, very legible and vibrant, a crisp screen, pixels stand out very well even in a brighter circumstances like full sunlight
- Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable.No embedded fonts inside the OLED controller, user can create the fonts through the font generation software
Description

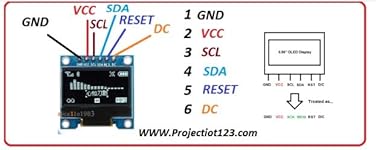

Features: Size: 0.96 Resolution: 128X64 Color: Blue Supported platforms: for 51 series, MSP430 series, STIM32 / 2, SCR chips Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC Working temperature: -30-80 degrees Driver IC: SSD1306 Communication: IIC, only two I / O ports No font: The software takes word modulo Backlight: OLED self light, no backlight Interface VCC: 3.3-5V GND: Ground SCL: Serial Clock SDA: Serial Data Applications: MP3, MP4, watch Head-mounted displays Meters and other intelligent instruments Design any pretty patterns for your beloved electronic devices! Package Included: 1 x 0.96'' oled display module 1 X plastic containers
Is Discontinued By Manufacturer : No
Package Dimensions : 2.24 x 1.38 x 0.75 inches; 0.63 ounces
Item model number : 15628-0.96
Date First Available : July 12, 2018
Manufacturer : DORHEA
Best Sellers Rank: #343 in Single Board Computers (Computers & Accessories)
Customer Reviews: 4.2 4.2 out of 5 stars 227 ratings
Frequently asked questions
If you place your order now, the estimated arrival date for this product is:
Sunday, Sep 14
Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
- Klarna Financing
- Affirm Pay in 4
- Affirm Financing
- Afterpay Financing
- PayTomorrow Financing
- Financing through Apple Pay
Learn more about financing & leasing here.
Similar Products
Top Amazon Reviews
Color: Multicolored
Essentially, there are two types of screens. On one, pin 1 is Vcc and on the other type pin 1 is GND. For MMDVM boards you typically want the Vcc on Pin 1 version. Other than that they are great little screens. I have both types for various projects and the only thing I have to say about them is just to ensure you get the right one. I've been using these OLED screens for years. Five stars.
...
show more
Reviewed in the United States on May 27, 2025 by John E Hagensieker
Color: Blue
The media could not be loaded. I use in a class i be taken
Reviewed in the United States on May 2, 2025 by michael McVeigh
Color: Blue
The media could not be loaded. I love the deep blue color of this display. Any displayed item looks nice and bright. Works very reliably. I was able to install this in minutes and got it up and running in minutes with no issues. Price can be cheaper though. Refresh speed is also fast. Size is small enough for most applications.
...
show more
Reviewed in the United States on October 12, 2024 by cryptoman cryptoman
Color: Yellow
The media could not be loaded. Simple to connect and demo if you follow any of the many online tutorials. You may need to add a couple additional libraries, but then a simple I2C 4-wire connection is all it takes to run it (data, clock, power, grnd). The attached video is of it powering up and running the adafruit SSD1306 example sketch after loading it up in an ESP8266. This obviously is the 2-color version, which is permanently yellow on top and blue on the bottom. The pulsing/stripes are figments of the recording and are not visible to your eye. One gotcha to watch for is the I2C address. The display comes default as 3C (can be switched to 0x3D by resoldering a resistor), but the example sketch I used was set to 3D. Simple code change and up it came. Convincing the display to do exactly what you want looks to be a bit tougher, but doesn't seem too difficult and should be fun to figure out. You can't beat the price. I got the 6-pack @$3 each and now need to get creative and figure out where to use them. Each comes in a small, secure plastic container to keep them safe in your parts box too. Nicer than just stuck in a piece of foam.
...
show more
Reviewed in the United States on January 24, 2023 by Steve V. Steve V.
Color: Blue
I have several small IOT projects where I use a I2C SSD1306 OLED display. The standard pinout on ALL my devices that I bought in the past were (from left to right): GND, VCC, SCL, and SDA. Google it yourself - search on “oled display i2c ssd1306”. So bought a pack of 6 from this outfit because the prices were so low. When I received the units, I plugged it into my pre-wired breadboard without looking at the small pinout labels (my bad!). I fired up my application and the screen did not work. I reexamined the code, I made sure the wires were in the right positions, and made sure the wires had solid connections … it still did not work. Upon closer examination, I realized that pin orientation on the devices were different! What the heck! Does the manufacturer not know what ‘industry standards’ are? The screen that I first installed turned out to be bad, or not working. I don’t know if I broke it because I was putting power on the GND pin and ground on the VCC pin, or if it was bad from the beginning. I swapped out the GND and VCC wires on the breadboard and installed a new screen. It worked fine! So, here is what I think happened. The manufacturer wanted to copy another manufacturer’s product and sell it for a cheaper price, which is what the Chinese like to do. However, they wanted to make a small change to avoid patent protections. They swapped the pin orientation and claimed that they made a significant modification to a product and therefore can sell it. Or, the other scenario is that they just don’t know how to copy a product. Until this manufacturer can adhere to industry standards, I will give them the lowest rating. BOTTOM LINE: if you don’t care about the pin orientation on the display, ignore this review (other than I got one bad screen, but that could have been caused by me). In my case, I have pre-printed circuit boards that are expecting the correct pin orientation on the display.
...
show more
Reviewed in the United States on October 30, 2024 by JayBird87 JayBird87
Color: Multicolored
worked great! easy to setup
Reviewed in the United States on February 25, 2025 by Daniel Mocuta
Color: Multicolored
I’ve had a couple of these small displays die after an intermediate length of use so I don’t expect a lot. Let’s hope this one is more reliable. What I want is that it DOES work and that it has correct order of the terminals for my circuit board. The pictures on the listing showed the right order of placement so I felt fairly sure it would work for me even though some reviewers complained the photos were not correct for what they received. Maybe I was lucky, but after plugging this one in it displayed as it should.
...
show more
Reviewed in the United States on June 14, 2024 by CWolf177
Color: White
I have many of this displays already and bought this one specifically for the swapped vcc and ground pins that were shown in the product image. I have never had an issue with these displays but this one is no different than the ones I own. I won't be able to use this in my project without modifications.
...
show more
Reviewed in the United States on October 28, 2022 by Shane Baty Shane Baty
