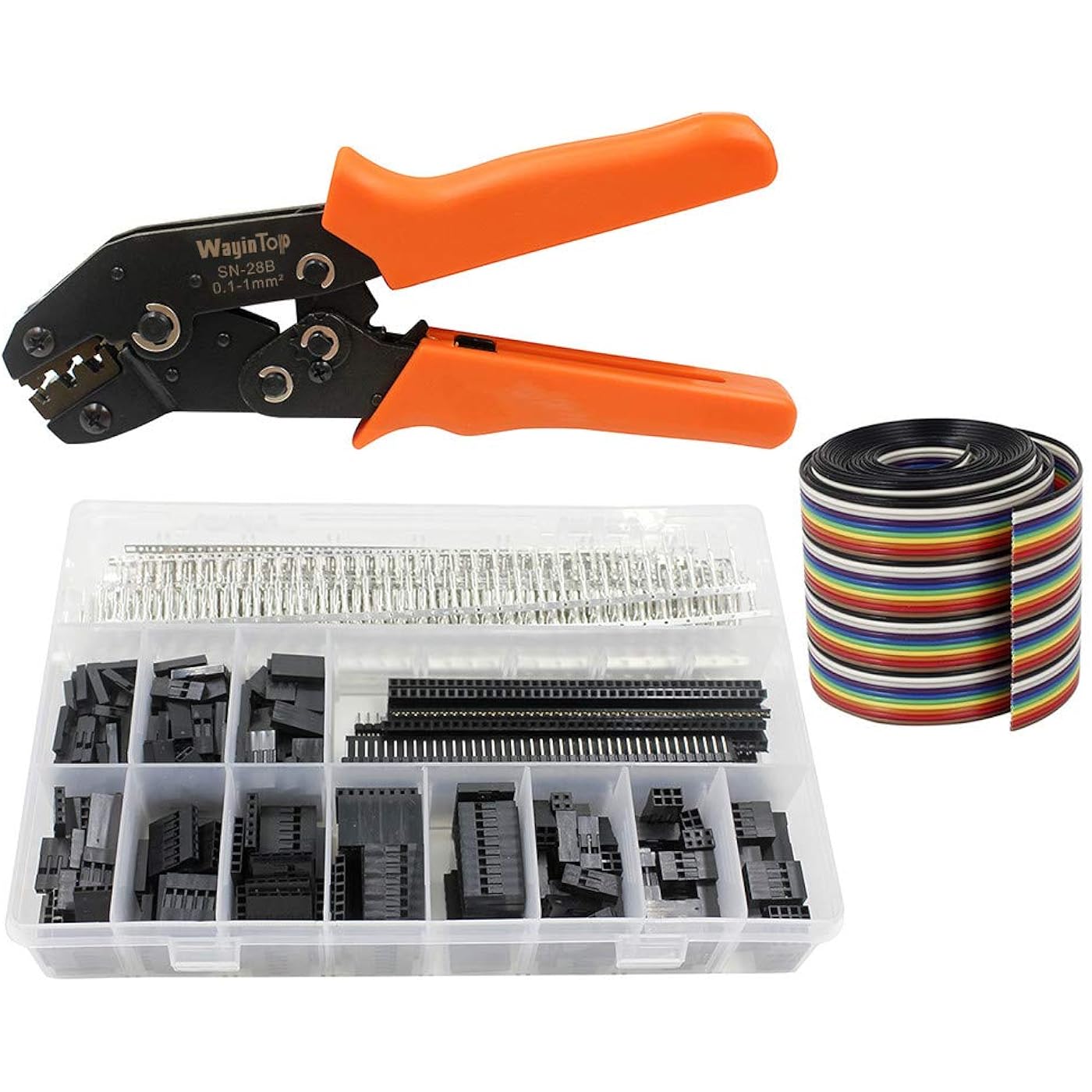

WayinTop Connector Crimping Tool Kit Crimper Plier 2.54mm Header Male Female Crimp Pins Terminals Housing 1 2 3 4 5 6 8 10 Pin and 40pin 1.27mm Ribbon Cable FC/IDC Jumper Wire 1M (Crimping Set)

  • Based on 184 reviews
Condition: New
Checking for the best price...
$29.99 Why this price?
Save $30.00 was $59.99

Buy Now, Pay Later

As low as $7 / mo
  • – 4-month term
  • – No impact on credit to apply
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout.

Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Apple Pay, and PayTomorrow. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: Only 8 left in stock, order soon!
Fulfilled by Amazon
Arrives Wednesday, Jun 10
Order within 4 hours and 50 minutes
Available payment plans shown during checkout
Protection Plan Protect Your Purchase
Checking for protection plans...

Recently Viewed

Features

  • The Most Complete KitThis kit is the most complete Dupont set which contains high quality assorted crimp pins connectors, crimping tool, and ribbon cable, so you can get started immediately.
  • Crimping ToolThe crimper is made of high-carbon steel; Crimping capacity: 0.1-1.0 mm2 28-18AWG. Its suitable for 2.54mm, 2.8mm, 3.96mm, KF2510 connectors, ATX, EPS, PCIE, and SATA Power Pins.
  • Connectors Kit A variety of connectors: 450pcs female and 450pcs male crimp pins; 10pcs female and 10pcs male 2.54mm 40pin single row headers; 300pcs housing single row 1P/2P/3P/4P/5P/6P/8P/10P and 60pcs double row 2P/3P/4P Dupont connectors.
  • 1.27mm 40-Wire Ribbon Cable It is a 1M/3.3ft length of 40-wire Dupont cable. The gauge is AWG 28. It is plated with a thin layer of tin which makes it easier to solder and is stronger and not so likely to break as it is very thin.
  • Durable Plastic Storage BoxThis assortment kit is easily to be carried and you won't have to worry about the storage of these small parts. And you'll never be short of crimp pins, headers, connectors and jumper cables.

Description

WayinTop: We aim to make your work Easier & Funnier! Crimping Tool - The ratcheting feature allows you to squeeze the crimpers to a point and let go, the crimpers will lock. You can then apply pressure again to complete your crimp and release the lock. Ribbon cable: - Spacing: 1.27mm (0.5''). - Gauge: AWG28. - Material: standard copper with tin-plated. - This ribbon cable is just the wire, no IDC connectors on it. - The different leads (40 in total) are held together very well yet are easy to separate as well. - It is really helpful in situations where you need to make a lot of connections without a big mess of wires. Nothing makes a project look more finished than a nice clean wiring harness. Dupont Connectors Kit: - Dupont Female Crimp Pins Terminals x 450Pcs - Dupont Male Crimp Pins Terminals x 450Pcs - 40Pin 2.54mm Single Row Male Header x 10Pcs - 40Pin 2.54mm Single Row Female Header x 10Pcs - 1x1P Dupont Connector Female Housing x 100Pcs - 1x2P Dupont Connector Female Housing x 60Pcs - 1x3P Dupont Connector Female Housing x 40Pcs - 1x4P Dupont Connector Female Housing x 30Pcs - 1x5P Dupont Connector Female Housing x 20Pcs - 1x6P Dupont Connector Female Housing x 20Pcs - 1x8P Dupont Connector Female Housing x 20Pcs - 1x10P Dupont Connector Female Housing x 10Pcs - 2x2P Dupont Connector Female Housing x 30Pcs - 2x3P Dupont Connector Female Housing x 20Pcs - 2x4P Dupont Connector Female Housing x 10Pcs Package Included: - Crimping Tool - Dupont Connectors Kit - 1 Meter Ribbon Cable

Brand: WayinTop


Color: Crimping Set


Handle Material: Plastic


Grip Type: Ergonomic


UPC:


Brand Name: WayinTop


Model Number: WYTP07-KIT


UPC: 710568030080


Manufacturer: WayinTop


Set Name: Crimping Set


Manufacturer Part Number: WYTP07-KIT


Unit Count: 1.0 Count


Specific Uses For Product: DIY electronics projects, prototyping, repair work, ATX, EPS, PCIE, and SATA Power Pin connections


Size: 1M/3.3ft


Color: Crimping Set


Handle Material: Plastic


Grip Type: Ergonomic


Handle Type: Ratcheting


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Wednesday, Jun 10

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Good quality, used to replace connectors on 3d printer
Crimpers seem to be good quality. I did have to take pliers and round the crimped connector on the wire to get it to fit in the connector, but that may have been due to the small wire I was putting the connectors on. Use this to replace wire connectors on my 3d printer stepper motor cables.
Reviewed in the United States on October 21, 2019 by Dale Wolfenbarger
    • Nice Selection, but Crimping Tool isn’t Proper for the Included Connectors
I needed to make some cables while working from home, so I purchased this kit. For the price, it’s pretty complete. It has enough male and female pins to make a whole lot of cables, so for the cost, you’re getting a pretty good deal compared to what I’ve gotten before at brick and mortar stores around here - if you’re lucky enough to have one nearby that sells these kinds of things. However, there is a problem with this that adds a great deal of extra time to the cable assembly process. I needed to make cables with my own wire, so I haven’t use the included ribbon cable yet. After cutting and stripping the wires, I used the included tool to crimp the pins on. The tool is very easy to use, and it crimps the pins on very cleanly and securely. However, even when using the smallest crimping slot, the pins are too large to fit into the holes of the included connectors. The crimping tool is flat on the bottom side of the guide holes, so it makes a crimp that is squared on the bottom side of the crimped pins. The tabs that grip the wires and insulation are curved, so the wires are connected securely, but the flat, squared bottoms are just a little wider than the connector holes. To make them fit, I needed to gently squeeze every pin with a pair of pliers to make them slightly narrower so they would fit. Once each pin was squished a little, they were able to slide into the connectors and lock in place. The finished product is secure and holds together nicely, but the additional time it takes to manually adjust each pin after crimping it adds a lot of work to assemble it. If the crimping tool had its slot made either a bit narrower or if the bottom slot were slightly rounded, it would be perfect and deserve 5 stars, but the way it is now, it requires too much additional work. If you squeeze the pins too much, you will ruin it. I had a stereo microscope that I used to get them just right, but without this to see what I was doing with high magnification, I would have had to re-crimp many of them. ... show more
Reviewed in the United States on February 22, 2021 by ES
    • Inexpensive kit for hobbiest or one-off repairs. Inexpensive kit for hobbiest or one-off repairs.
Review Image by R. C. Mahar
Review Image by R. C. Mahar
Review Image by R. C. Mahar
"Welcome to my TED talk..." Making Dupont cables is an art of sorts. So any kit would be challenging to use for the first time. Watch some videos first. Practice till you get it. If you get it right, terminals should *easily* fit in the shells and click into place. I found these crimper may not completely form the end of the crimp ( see photos ) resulting in the terminals being hard / impossible to insert into shells. If you have this issue, try to adjust the crimper via a screw on the side, or after you crimp gently squeeze the insulation portion of the crimp with pliers to make it narrower. Either way, I can get near perfect cables from this kit. Just spend the time to practice. Note also, there is a wide and a narrow side to the crimper jaws, the "teeth" on the terminal rests on that ridge, as shown. This is also something many videos fail to mention. Once you figure it out you'll be "OMG, this is SO simple!" ... show more
Reviewed in the United States on December 28, 2020 Reviewed in the United States on December 28, 2020 by R. C. Mahar
    • Great addition to classroom maker-space
I teach electronics/robotics and bought this kit recently at the request of a student. The tool is good quality and the kit had a good variety. The tool has stood up to a few months of use by teenagers with no sign of wear so I'd say it will last the average user forever.
Reviewed in the United States on March 13, 2022 by D. Belyea
    • Crap quality, absolutely useless
I'm not sure how you get pins and connectors so wrong, but these idiots found a way to. All I needed to do was wire up a power button on my case to connectors on my motherboard. With this kit, I should be able to crimp 2 connectors onto the end of 2 wires on the power button, slide them into a plastic connector, which should slide right onto the pins on the motherboard. First of all, the crimping tool and connectors are absolute crap! I followed the instructions on the crimping tool, but it wasn't clear what size these connectors are (they could fit in any of the slots really), and half the time the connector would fall right off the wire once I finished the "crimp" Once I got connectors crimped on, I assume these connectors are supposed to slide into the plastic pieces, to make standardize plastic connectors. They kinda slide in but, not really? I don't know. They slide in the side with the larger openings, but I"m not sure they go in far enough to make proper contact. But I slid them in as far as they would go. Then I tried to slide the plastic connector onto my motherboard pins. The spacing was right, the size was right......but the motherboard pins wouldn't accept the connectors properly. I tried to wiggle and push a little more - they actually started BENDING THE PINS ON MY MOTHERBOARD!!!! When all was said and done, they didn't make a proper connection, and now I'm still resorting to shorting out pins on my motherborad to turn on my computer anytime Windows 10 decides to bluescreen! Absolute crap!!!! I'm returning them for a full refund. Don't waste your time with this. ... show more
Reviewed in the United States on September 19, 2020 by Jonathan Gatarz
    • Works fairly well
The crimper tends to flatten the end of the pins that get crimped, even if I adjust it, so I wouldn’t recommend this if you have lots of pins to crimp. But if you don’t mind straightening some out, it works fine and is a great price.
Reviewed in the United States on June 21, 2019 by Michael
    • Very Good Product
Testing different types of connectors for my scale models. Product was easy to use and connections were solid.
Reviewed in the United States on June 18, 2021 by DC Hiler
    • Kit is affordably priced but the crimping tool is not easy to use without a lot of practice
I bought this kit to make my own Dupont connectors for a radio project that I am working on. I watched a few videos on how to prepare the wire and how to use the crimping tool. I found that it was difficult to insert and hold the contacts in the crimping tool because they have to be inverted. Think that I went through about 10 "practice" contacts before I got one good wire to contact crimp. The crimping tool is very powerful and well constructed, but I still found it difficult to use because of the strange way the contacts have to be inserted into the tool. Maybe there is an easier tool to use, but they all look similar to me. ... show more
Reviewed in the United States on December 5, 2024 by Rob
