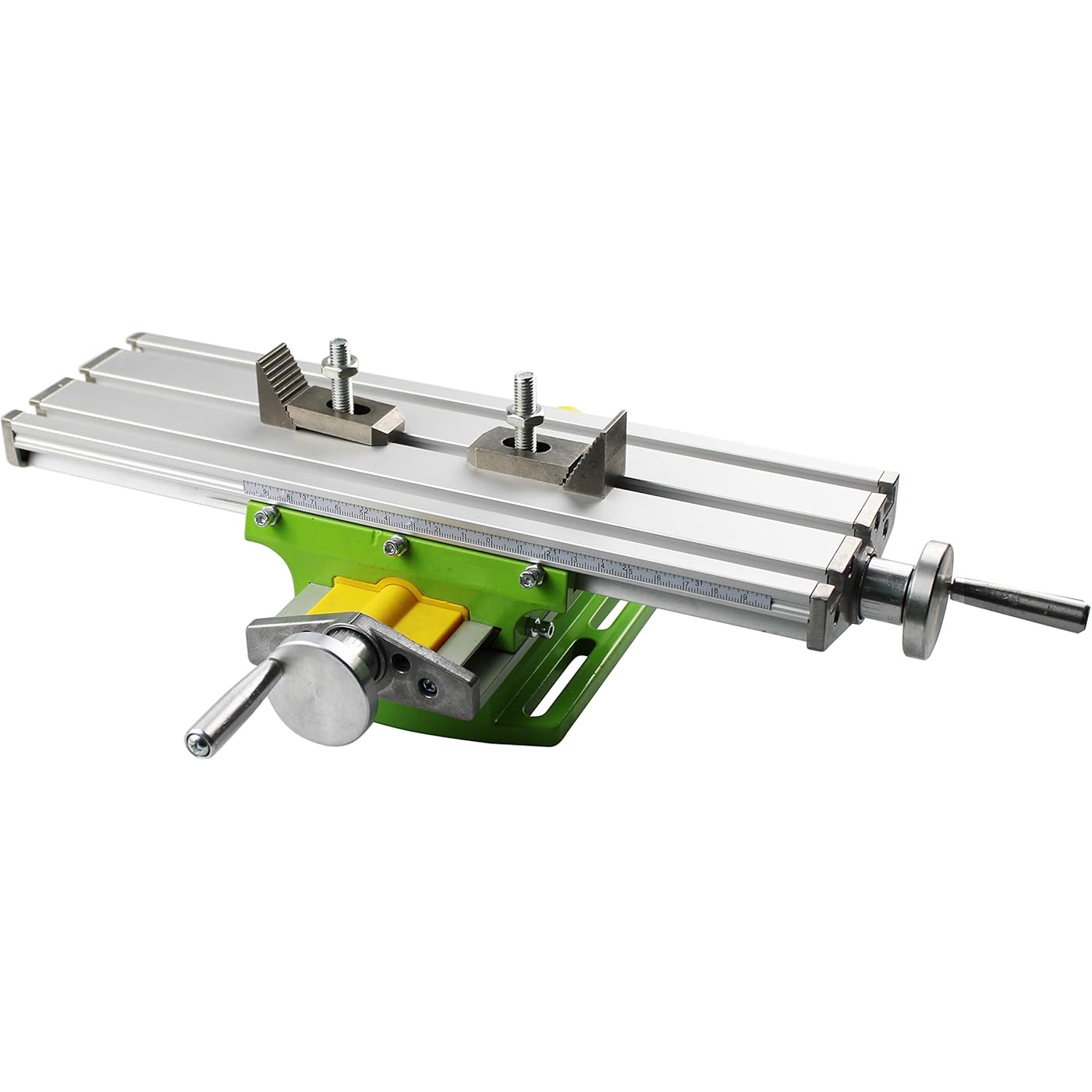

HFS (R) Multifunction Worktable Milling Machine - Adjustable X-Y Compound Drilling Slide Table for Bench Drill 330x95mm(13 * 3.7in)

Features

• [High-Quality Construction]Crafted from durable aluminum alloy, ensuring robustness and longevity. The finely polished surface and strong rigid structure provide reliable performance. This high-quality construction ensures smooth, precise operations without getting stuck, whether moving left and right or forward and backward.
• [Adjustable X-Y Axis] Features adjustable screws on both X and Y axes, with handwheels that offer a zero-adjustment scale. This allows for precise control and fine-tuned adjustments, ensuring high accuracy. Loosen the lock nut to adjust the screw simply, and tighten the lock nut to eliminate any looseness in the cross-slide, providing stable and accurate milling operations.
• [Compact and Efficient Design] With a worktable size of 330*95mm(13*3.7in), X stroke (transverse) 190mm(7.48in), Y stroke (longitudinal) 67mm(2.64in), Height: 80mm(3.15in), Slot pitch: 34mm(1.34in). This compact milling machine is designed to fit seamlessly with bench drills, making it an ideal choice for both small and large projects. The dovetail slot aluminum alloy construction guarantees minimal space usage while ensuring high accuracy, making it perfect for tight workspaces.
• [Versatile Applications] Perfect for use in garages, workshops, and construction sites, this multifunction worktable is suitable for a wide range of drilling and milling tasks. It is ideal for both beginners and professionals. Whether you are working on intricate DIY projects or professional-grade tasks, this worktable offers the precision and reliability needed for high-quality results.
• [Complete Package] The product includes a workbench, a detailed product manual, and an accessory package, ensuring you have everything you need for immediate use and optimal functionality. The strong and rigid base, combined with the flexible workbench, makes it easy to handle higher standards of work without compromising on stability or accuracy.

Features

• [Size]: Work table size: 330*95mm(12.99*3.74in), X stroke (transverse) 190mm(7.48in), Y stroke (longitudinal) 67mm(2.64in), Height: 80mm(3.15in), Slot pitch: 34mm(1.34in)
• [Handwheel with adjustable scale]: Zero adjustment handwheel rotates a circle of 1.5mm(0.059in) and a grid of 0.05mm(0.002in).
• [Packing]: The product includes a workbench, a product manual, and an accessory package
• [Material]: The workbench is composed of several adjustable dovetail aluminum alloys, which can ensure the smallest space and accuracy, and can be used in conjunction with bench drills.
• [Structure]: The base and flexible workbench have a strong rigid structure, and the screw (M10X2) is very strong, which can be used for higher standards

Description

[Application]: This table is suitable for mini electric drills and rig bracket series. It can also be applied to other suitable machines. There are three T-shaped grooves on the workbench, the standard size is 15x8x6mm(0.59x0.31x0.24in)

Brand: HFS

Finish Type: Painted

Frame Material: Aluminum

Assembly Required: Yes

Manufacturer: ‎HFS

Part Number: ‎MMCH

Item Weight: ‎5.81 pounds

Package Dimensions: ‎15.83 x 10.31 x 4.69 inches

Item model number: ‎MMCH

Size: ‎330X95MM

Finish: ‎Painted

Batteries Included?: ‎No

Batteries Required?: ‎No

Date First Available: November 11, 2020

Material: Aluminum

Brand: HFS

Product Dimensions: 3.74"D x 13"W x 3.15"H

Color: Green

Finish Type: Polished

Brand Name: HFS

Model Number: MMCH-330X95MM

Number of Items: 1

Manufacturer: HFS

Item Type Name: MMCH-330X95MM

Manufacturer Part Number: MMCH

Item Dimensions D x W x H: 3.74"D x 13"W x 3.15"H

Minimum Height: 3.15 inches

Material Type: Aluminum

Frame Material: Aluminum

Color: Green

Finish Types: Polished

Base Type: Solid

Load Capacity: 1E+2 kg (220 lbs)
