Electric Fan Wiring Kit Electric Fan Relay Kit with Thermostat Radiator Fan Sensor Switch Electric Cooling Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, 40 AMP Waterproof Relay Kit
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
Features
- All wires are clearly labeled and color-coded. And an easy-to-follow wiring diagram is included in the package. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Sending Unit, GREY to Ignition per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans. For dual fan wiring, you would need two of this relay kit
- Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included. Please note: you need to run a 160 degrees thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fan to shut off

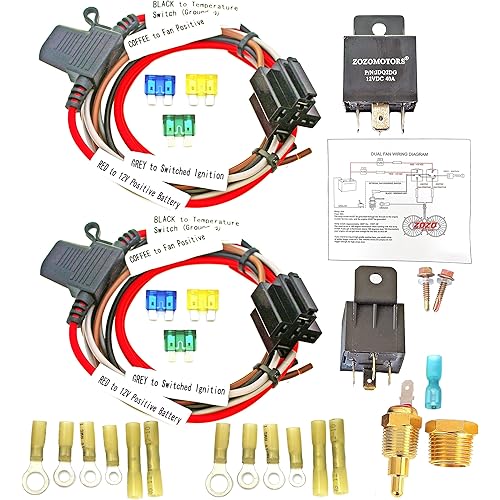

- This electric cooling fan kit comes with everything you need, includes 40A relay, wiring harness, temperature switch, 3/8 inch to 1/2 inch adapter, inline waterproof fuse holder, fuses, 1 spade connector for the temp sensor, 4 ring terminals and 2 wire connectors
- The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
- This relay kit is enough to run medium profile or low profile electric fan. For high profile fan, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fan (10 gauge wire - 30 Amps). Recommend to use dual fan relay kit to run dual fan set up
Features
- Easy to follow wiring diagram simplify wiring your electric fans. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Ignition, GREY to Sending Unit per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans. For dual fan wiring, you would need two of this relay kit
- Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included
- This electric cooling fan thermostat kit comes with everything you need, includes 40A relay, wiring harness, thermostat switch, 3/8 inch to 1/2 inch adapter, inline fuse holder, 20 amp fuse, 1 spade connector for the temp sensor, 4 ring terminals and 2 wire connectors
- The thermostat supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The thermostat MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
- If you intend to mount high-profile fans, you could crimp or solder bigger wires to it. The 14AWG wires (15 amps) are not bigger enough for high amps draw
Current Rating: 40 Amps
Brand: ZOZOMOTORS
Operation Mode: Electric
Coil Voltage: 12 Volts
Maximum Switching Current: 40 Amps
Is Discontinued By Manufacturer : No
Product Dimensions : 6.89 x 5.51 x 1.57 inches; 7.05 Ounces
Date First Available : June 18, 2021
Manufacturer : MAXCOOLING
Best Sellers Rank: #26,572 in Automotive (See Top 100 in Automotive) #2 in Automotive Replacement Engine Radiator Cooling Fan Motor Relays
#2 in Automotive Replacement Engine Radiator Cooling Fan Motor Relays:
Customer Reviews: 4.3 4.3 out of 5 stars 110 ratings
Connector Type: Ring Terminal, Pigtail Connector
Contact Material: Copper
Contact Type: Normally Open
Current Rating: 40 Amps
Mounting Type: Chassis Mount
Connector Type: Ring Terminal, Pigtail Connector
Contact Type: Normally Open
Current Rating: 40 Amps
Mounting Type: Chassis Mount
Operation Mode: Automatic
Wattage: 480 watts
Coil Voltage: 12 Volts
Contact Current Rating: 40 Amps
Lower Temperature Rating: 185 Degrees Fahrenheit
Maximum Switching Current: 40 Amps
Maximum Switching Voltage: 12 Volts
Minimum Switching Voltage: 12 Volts (DC)
Brand Name: ZOZOMOTORS
Part Number: JDQ1DG
Model: JDQ1DG
Manufacturer: MAXCOOLING
Specification Met: OE
Contact Material: Copper
