Dual Electric Fan Relay Kit Radiator Electric Cooling Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, 40 AMP Waterproof Relay Kit
Buy Now, Pay Later
- – 4-month term
- – No impact on credit to apply
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, Affirm, Afterpay, Zip, Apple Pay, and Google Pay. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
FREE 30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
Features
- All wires are clearly labeled and color-coded. And an easy-to-follow wiring diagram is included in the package. RED to 12VDC Positive Battery Terminal, COFFEE to Fan Positive, BLACK to Sending Unit, GREY to Ignition per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans
- Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included. Please note: you need to run a 160 degrees thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fans to shut off

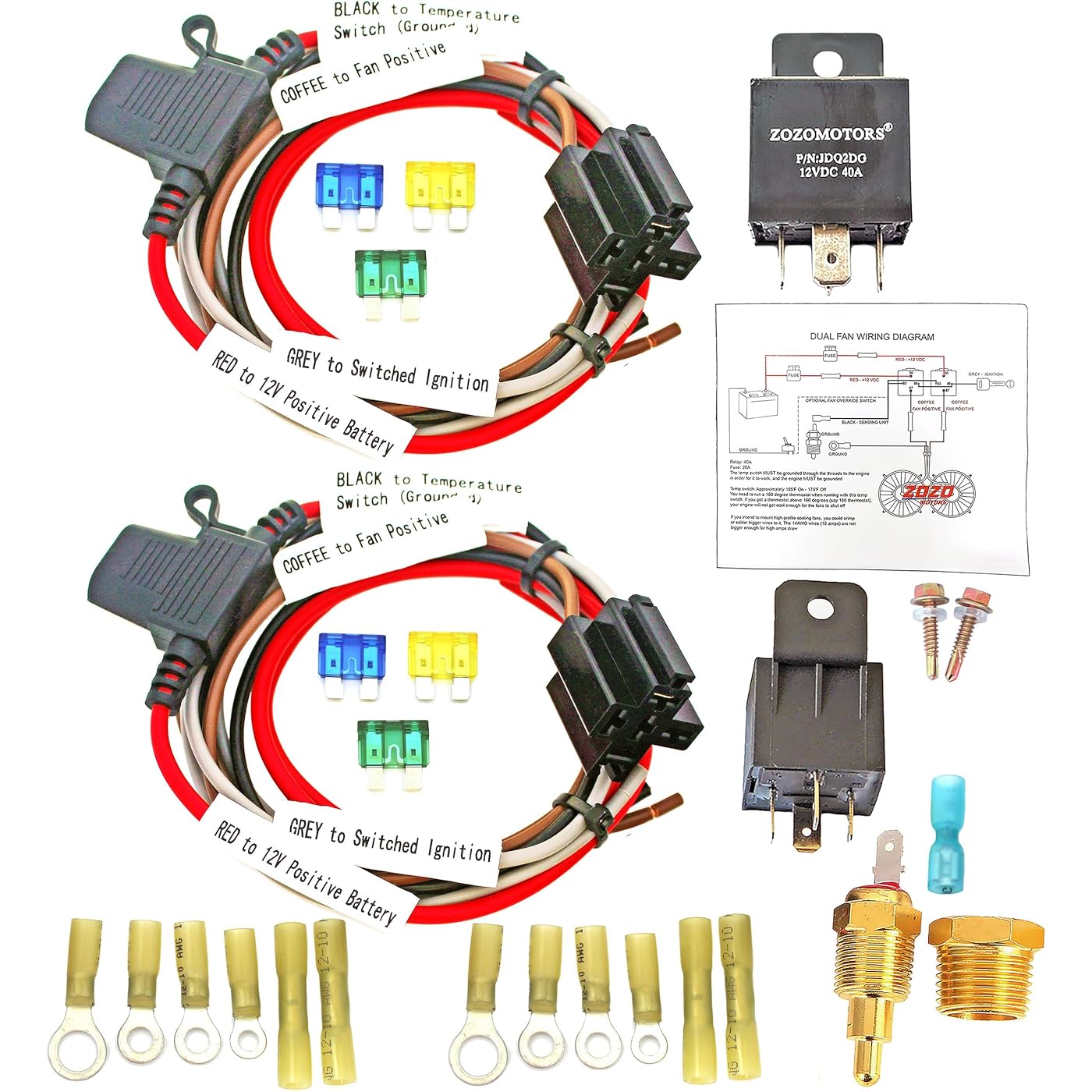

- This electric cooling fan kit comes with everything you need, includes 40A relay, wiring harness, temperature switch, 3/8 inch to 1/2 inch adapter, inline waterproof fuse holder, fuses, 1 spade connector for the temp sensor, 8 ring terminals, and 4 wire connectors
- The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
- This relay kit is enough to run two medium profile or low profile cooling fans. For high profile fans, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fan (10 gauge wire - 30 Amps)
Description
Please note: You need to run a 160 degree thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fans to shut off The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded This relay kit is enough to run two medium profile or low profile cooling fans. For high profile fans, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fans (10 gauge wire - 30 Amps) If you want to turn on the fans when A/C compressor activates, you would need an additional relay kit and follow the steps below: 1x Wiring Diagram 2x 40A Relay with Wiring Harness 1x 3/8" Temperature Switch 185'F On - 175'F Off 1x 3/8" to 1/2" Adapter 1x Spade Connector for Temp Switch (Heat Shrinkable) 2x Inline Waterproof Fuse Holder 2x 15A Fuse (Low Profile Fans), 2x 20A Fuse (Medium Profile Fans), 2x 30A Fuse (High Profile Fans) 8x Ring Terminals (Heat Shrinkable ) 4x Wire Connectors (Heat Shrinkable) 2x Mounting Screws
Connector Type: Crimp
Contact Material: Silver, Copper, Or Alloy
Contact Type: Normally Open
Current Rating: 40 Amps
Mounting Type: Panel Mount
Connector Type: Crimp
Contact Type: Normally Open
Current Rating: 40 Amps
Mounting Type: Panel Mount
Operation Mode: Automatic
Wattage: 480 watts
Coil Voltage: 12 Volts
Contact Current Rating: 40 Amps
Lower Temperature Rating: 185 Degrees Fahrenheit
Maximum Switching Current: 40 Amps
Minimum Switching Voltage: 12 Volts (DC)
Contact Material: Silver, Copper, Or Alloy
Brand Name: ZOZOMOTORS
Part Number: JDQ2DG
Model: JDQ2DG
Item Weight: 8.11 Ounces
Manufacturer: MAXCOOLING
Specification Met: OE
