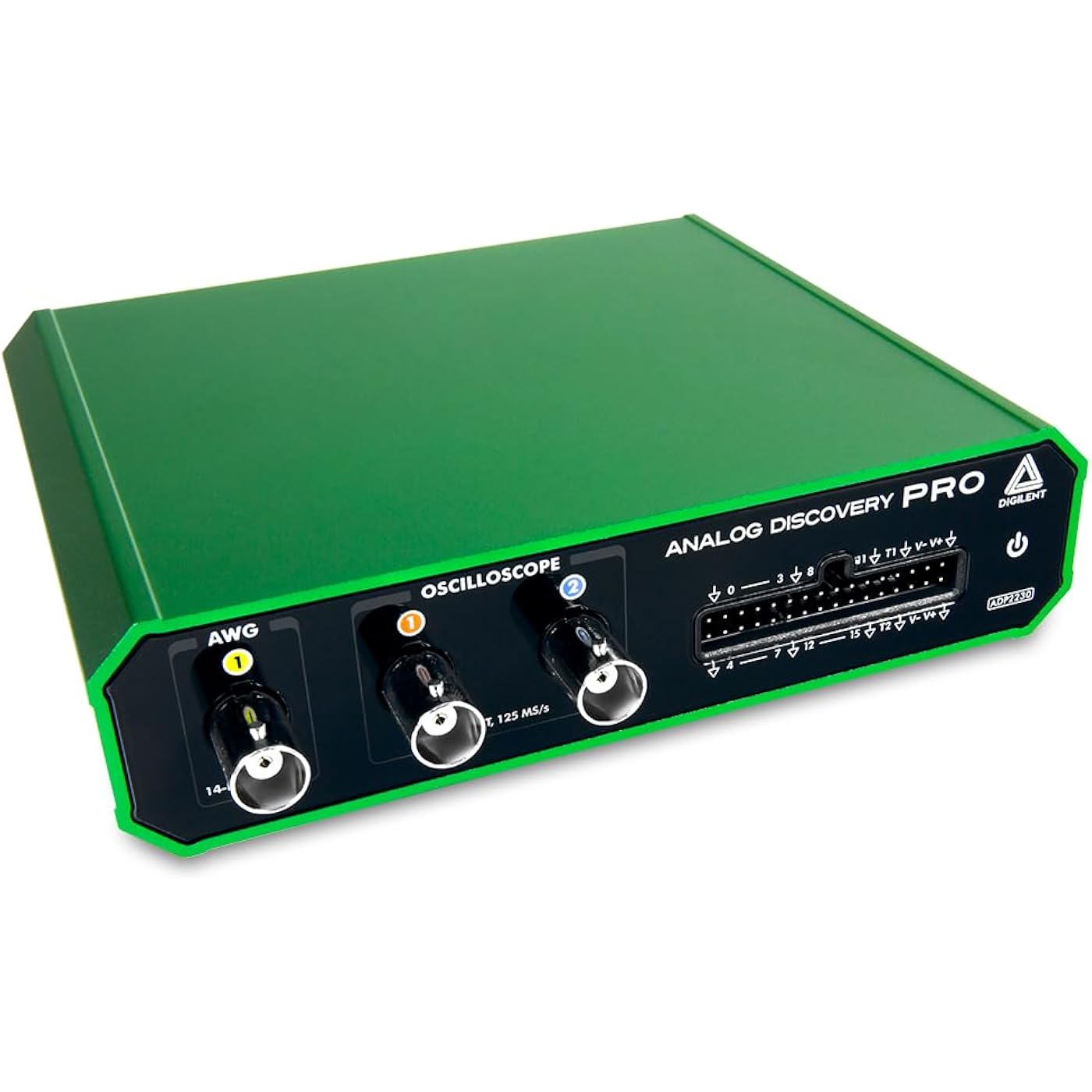

Digilent Analog Discovery Pro ADP2230: Mixed Signal USB Oscilloscope, Waveform Generator, Logic Analyzer, and Variable Power Supply
Buy Now, Pay Later
- – Up to 36-month term if approved
- – No impact on credit
- – Instant approval decision
- – Secure and straightforward checkout
Ready to go? Add this product to your cart and select a plan during checkout.
Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.
Learn more about financing & leasing here.
30-day refund/replacement
To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.
To initiate a return, please visit our Returns Center.
View our full returns policy here.
Recently Viewed
Features
- USB Mixed Signal Oscilloscope with deep memory buffers for long acquisitions
- BNC connectors and an aluminum case
- Two analog inputs 50+ MHz bandwidth; One analog output 15 MHz bandwidth
- 16 digital input/output channels
- Sample rates up to 125 MS/s
- Two power supply outputs
- USB 3.0 communication speeds
- Sync multiple devices for increased channel count
- Extensive software support with WaveForms, WaveForms SDK, LabVIEW, MATLAB
- Includes 1x ADP223, 1x USB C to C cable, 1x 5 V 4 A switching power supply (includes US and EU plug adapters), BNC Oscilloscope x1/x10 Probes (Pair), 6-pin Header & Gender Changer (5-pack), 2x16 flywire, and 1x Flywire label sheet
Description
What is the Analog Discovery Pro ADP2230? The Analog Discovery Pro (ADP2230) is a mixed signal oscilloscope (MSO) designed for professional engineers. It features analog inputs, analog output, and digital I/O, with deep memory buffers all operating at up to 125 MS/s. Users can both receive and generate digital signals to test and analyze data from various devices while simultaneously powering those systems with its robust power supply. The feature-packed design allows the ADP2230 to perform the functions of several test and measurement devices and can replace a stack of traditional instruments. With the free WaveForms software, users can view and capture complex data, perform spectral and network analysis, and quickly retrieve large amounts of data. WaveForms leverages the ADP2230’s deep buffer memory, allowing hundreds of millions of samples to be stored and streamed back to the host computer. WaveForms’ friendly user interface has the feel of traditional benchtop oscilloscopes. The ADP2230 is part of the Digilent Analog Discovery Pro family of Test and Measurement devices that empower engineers, researchers, educators, and scientists to design and test with unparalleled flexibility. These customizable solutions cater to both seasoned professionals and emerging engineers, accelerating development while maintaining a low barrier to entry.
Product Dimensions : 5.28 x 5.67 x 1.49 inches; 1.03 Pounds
Item model number : 410-417
Date First Available : February 29, 2024
Manufacturer : Digilent
Country of Origin : USA
Best Sellers Rank: #134,209 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #73 in Lab Oscilloscopes #1,373 in Lab Meters
#73 in Lab Oscilloscopes:
#1,373 in Lab Meters:
Customer Reviews: 5.0 5.0 out of 5 stars 1 rating
