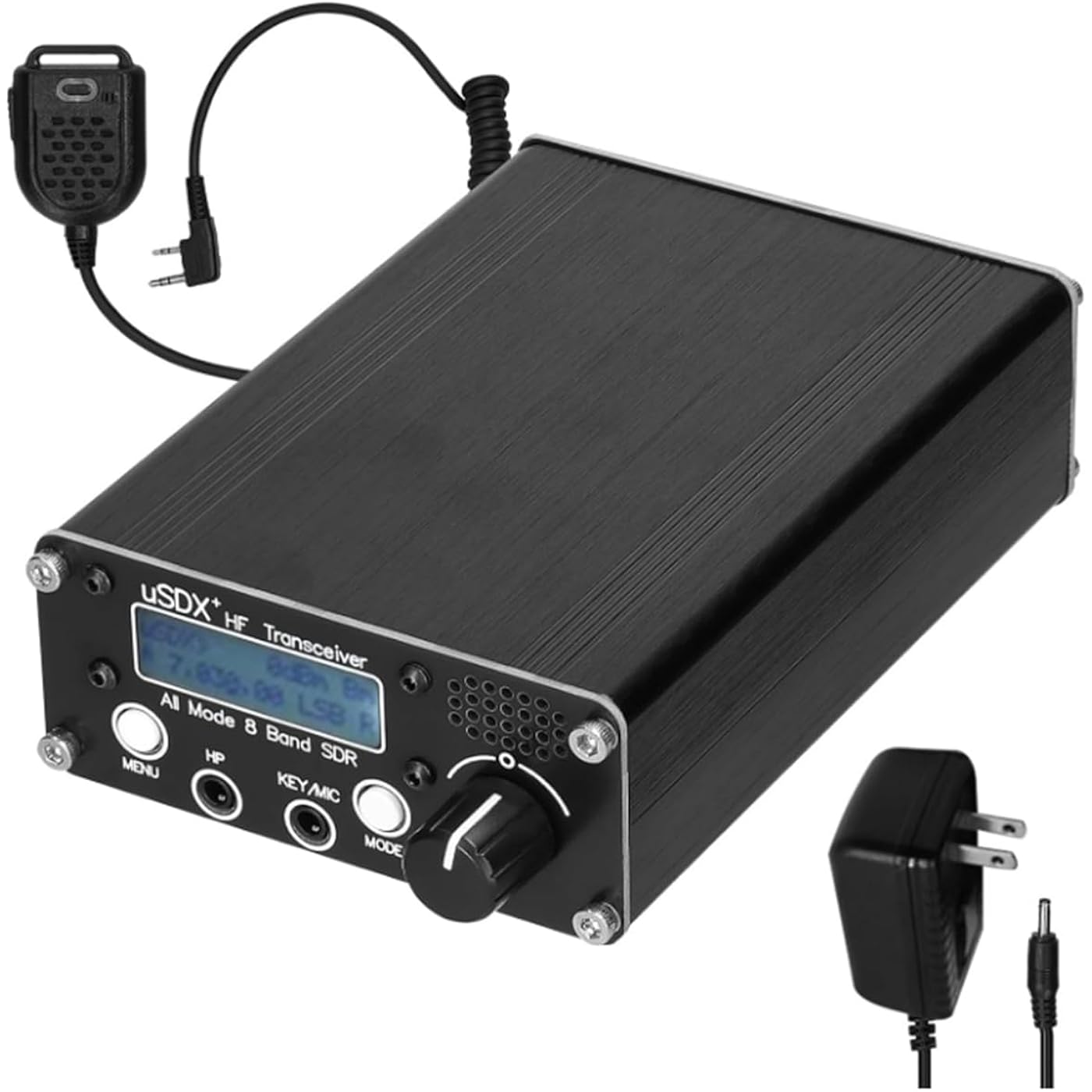

8 Band Shortwave Radio Transceiver, LCD Display Full Mode HF SSB SDR QRP Ham Radio with BNC Antenna Connector for Amateur Radio Operators,Support Connection to Computer

Features

• 8-Band Coverage: This transceiver features an 8-band design covering 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m frequencies, delivering high transmission efficiency.
• Practical: This is a shortwave QRP SSB/CW transceiver. Its ultra-compact size makes it easy to carry for outdoor use. It features a clear LCD display and a built-in speaker. Supports connection to a computer for software control of digital modes like FT8, JS8, and FT4. Also supports CW automatic decoding.
• Built-in Speaker: Enhanced built-in speaker performance delivers stable, clearer sound with improved noise resistance. Supports rapid QRP CW frequency changes and adjustable CW side tone volume.
• Layout Optimization: Intuitive Design: Headphone jacks, power button, and microphone port are positioned on the front panel for easy access. Larger touch surfaces enhance button responsiveness and provide a more comfortable user experience. PCB includes pre-soldered pads for various upgrades, offering out-of-the-box functionality while serving as a DIY upgrade learning template.
• Multiple Interfaces & Wide Applicability: The transceiver features multiple interfaces (cat, PTT out, mic/key, K-head mic). All LPF components utilize 100V C0G/NP0 capacitors. Employing lower-noise op-amp chips. Built-in speaker with acoustic chamber. BNC antenna connector.

Description

Move the headphone and power button/microphone jacks to the front panel for easy access to headphones and the power button.Relocate the buttons to the bottom of the LCD screen for a larger touch area and more comfortable button operation.Upgrade the built-in speaker effects for twice the sound!PCB includes pads for various upgrades, ready to use out of the box and serves as a template for DIY upgrade learning.Quickly change QRP CW frequencies.Supports CW sidetone volume adjustment.Supports CW sidetone tuning.This is a shortwave QRP SSB/CW transceiver. Its ultra-compact size makes it easy to carry for outdoor use. (built-in 4000mAh lithium battery) Features a LCD display and built-in speaker. Supports computer connection for software control of FT8, JS8, FT4, and other modes. Includes CW auto-decoding.Features:8 track coverage: 80m/60m/40m/30m/20m/17m/15m/10m bands.Superior PCB layout adhering to high-frequency circuit design principles ensures exceptional performance.Delivers 8-step 3-5W power output whether using internal battery or external 13.8V power supply, with reserved SOT-223 and TO-220 pack pads for future upgrades.High transmission efficiency: >80% on 80m/60m/40m/30m/20m bands, >70% on 17m, >60% on 15m/10m.Frequency accuracy better than 1ppm, frequency stability better than 0.5ppm.Ultra-compact dimensions: 8839124mm (excluding protrusions).Rich interfaces (CAT, PTT Out, Mic/Key, K-head Mic).All LPF components utilize 100V C0G/NP0 capacitors.Features genuine Omron magnetic latching relays.Employs low-noise operational amplifier chips.Includes cavity-mounted internal speaker.BNC antenna connector.Package Contents:1 x Transceiver1 x Microphone

Brand: VR-robot

Color: Black

Number of Channels: 1

Special Feature: BNC Antenna Connector, Built-in Speaker, Computer Connectivity, LCD Display

Frequency Range: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 10m

Voltage: 13.8 Volts

Water Resistance Level: Moisture Resistant

Included Components: Charger

Compatible Devices: Computer

Unit Count: 1.0 Count

Item Weight: ‎1.06 pounds

Package Dimensions: ‎3.7 x 2.4 x 0.7 inches

Item model number: ‎0

Warranty: ‎1 Year

Date First Available: October 20, 2025
