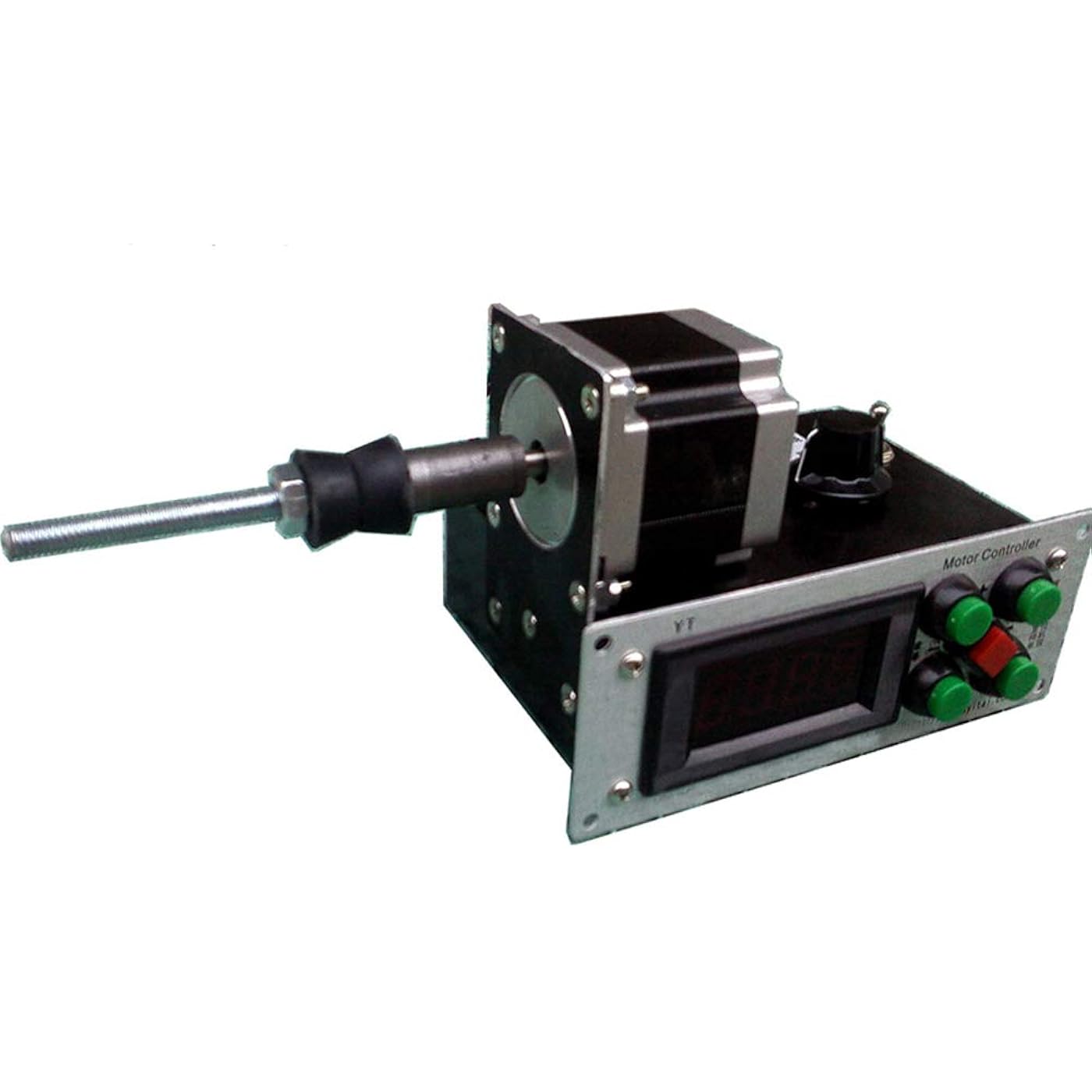

MXBAOHENG Automatic Coil Winding Machine Precision Digital Control Coil Winder Low Variable Speed 2 Directions

  • Based on 9 reviews
Condition: New
Checking for the best price...
$274.00 Why this price?

Buy Now, Pay Later

As low as $45.67 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout.

Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

30-day refund/replacement

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: 16 left in stock
Fulfilled by MXBAOHENGus Instrument Co.
Arrives Oct 27 – Nov 6
Order within 17 hours and 54 minutes
Available payment plans shown during checkout

Recently Viewed

Features

  • 1, This electric coil winding machine adopts advanced microcomputer programmable controller, two sets of winding circle number, any preset data set. It can call at any time one kind of wound, after power off data is not lost.
  • 2, The electric coil winder uses the import stepper motor, motor drive, high precision, high precision winding rotating, 0.0025 turn, runtime, reversible counter, the number of turns real-time display, be clear at a glance, can produce the product quantity counting, intuitive easy operation procedures.
  • 3, Electric control for the modular design makes the operation reliability of this coil winding machine greatly increased.
  • 4, Strong commonality and wide application scope, corresponding to different clamping mould, the automatic coil winder can complete all kinds of coil winding.

Description

Description: YT - A coiling machine controller is composed of professionals in the winding machine manufacturing industry development and design, at first, A beautiful, manual operation wound.After use and perfection, proving that the coiling machine has high precision winding, counting the correct, stable performance, wide application scope, advantages of simple operation, high efficiency, flexible adjustment, as long as the replacement of different coiling mode and number of turns for re-election can winding power transformers, small and medium-sized inductor, power relays, low cycle transformer coil and so on various level wound coil, is currently the more advanced winding equipment. The main technical indicators: Spindle speed: 10-700 RPM Winding rotating accuracy: 0.9 c (0.0025 turn) Winding number: the two groups Programmable winding circle number: 0.1-0.1 turns Winding direction: clockwise/counterclockwise Wire diameter range: 0.01-1.5 mm Automatic startup: automatic/manual (0-1.5 V level change) Wiring way: by hand Product quantity count: 1-65535 The machine input power: 40 w Maximum turning diameter: 80 mm Working power supply: 110V~220V Host size: 160 mm (length) x 120 mm (width) x 100 mm (high) Weight: 1 kg Ambient temperature: - 20 °C - + 40 °C Matters needing attention: 1, if the spindle speed is too high locked- rotor stop, please reduce the spindle speed (reduced parameters of C01 number). 2, coiling machine, when the phone is switched on speed control knob must be reset back to zero. 3, after work must shut off the power switch or pull out the power plug. 4, in order to ensure the normal operation, the input ac voltage in the range of 110v-220v. 5, often keep the machine clean, do not place tools on the top of the winding machine.

Package Dimensions: 12.01 x 11.38 x 5.35 inches


Item Weight: 5.55 pounds


Manufacturer: MXBAOHENG


Item model number: HQ-1081


Is Discontinued By Manufacturer: No


Batteries required: No


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Oct 27 – Nov 6

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Arrived early. Works just as I expected.
Had to figure out how to work it. Instructions are not very good. It didn't come with the shaft extension that has the two cone for mounting bobbins. I had to jury rig a mount for the coil I was winding.
Reviewed in the United States on September 16, 2022 by Dale Roche
    • The instructions that come with it are useless
It powered up when plugged in, I got it to run. It's doing its thing.... Kinda.... There are five buttons, a potentiometer and a foot switch. Foot switch doesn't seem to function or operate the spindle. I've yet to figure out how exactly the buttons interact. Got it to do it's thing through trial and (lots of) error. Part of the instruction sheet is written in english but for the most part they are seemingly randon english words that don't fourm a sentence or any kind of complete thought? It might be a great product but..... ... show more
Reviewed in the United States on April 13, 2021 by Reliable Products Mfg
    • Instructions are horribly translated
Bought this winder I am restoring my Geo Stevens 39AM winder. Needed something so I could continue to wind some guitar pickup coils and I did not feel like busting out the laptop, arduino, ramps board and 12V power supply. I wanted something cheap and turn key. These units can be picked up for almost half the price on Amazon but with Amazon you have some purchase protection, not to mention it shipped within a day from across the US. The system was packed quite well and worked right out of the box. However, it took me some time to get to know how the controls worked as the instructions are...no offense to the supplier...really, really bad. So bad that I had to knock off half a star. I knocked off another half a star for construction because the unit is so noisy due to the motor being mounted on the control box. It was so noisy I mounted the stepper on a wooden box. So after 1/2 hour I finally got the hang of using the unit. The controls are, as far as I can tell, as follows: Top left green button - used to index up your program (A0-A9). You get 10 slots to program different coil speeds and counts. Bottom left green button - used to index down your program. Bottom right green button - used to display the program setting you are on (I think but some times just shows 4 dashed lines and you hear a faint click, so I could be wrong). Center red button - changes the rotation direction of the stepper. Top right green button (multi-functional): - (tap once) used to set the C-o1 parameter which is the rotation speed (75 seems to be max otherwise motor starts to stall). You use the left top and bottom green buttons to increase and decrease the value. - (tap again) used to set the C-o2 parameter which is the rotation count (takes a while to program +1000). You use the left top and bottom green buttons to increase and decrease the value. - (tap yet again) used to save the C-o1 & C-o2 parameters you just entered. The word "good" appears to confirm the setting was saved. - (press and hold for several seconds) used to set either 0b or 1b which the states 1b is a single set of coil level control" and 0b is for more than one. It looks like 1b runs only one programmed wind setting repeatedly whereas 0b runs thru all programs. Foot pedal switch - basically acts like a stop and go switch. Hold the foot switch down the program runs but once you lift off the pedal the program will pause. Top knob on controller - acts as a variable speed controller but you must turn it in small increments as it really only works from about 1/8 to 1/2 clockwise turn on the knob. Past 1/2 turn it is full speed, or more appropriately the speed which you set C-o1 to. Once the number of turns is achieved you need to make sure the knob is back to zero (i.e. full counter-clockwise). That is pretty much it. Hope this helps some of you who decide to take a chance on this simple coil winder set-up. ... show more
Reviewed in the United States on November 10, 2020 by Joey Joe Joe
    • Works
This didn't come with instructions, but it works. However, I do feel a bit ripped off, having subsequently found it for $130.
Reviewed in the United States on November 1, 2021 by Buyer333
