HYTECH Products 10 Kg Gas Melting Furnace for Melting Precious Metals Like Gold Silver Copper Silver Brass Aluminum

Features

• Material: Furnace body is made from MS material and Burner Nozzle is made from SS-304 material
• High Thermal Insulation: Its heating zone is fully insulated with 1 inch thick refractory ceramic fiber, and its cover insulated with 2-3 inch refractory ceramic fiber which can resist temperature up to 2600F (1425C)
• Furnace floor is insulated with 2 Ceramic Fiber and Refractory brick for smooth and plain surface which can hold the crucible without any inclination.
• Capacity: 10 kg of Brass, 11 kg Copper, 25 kg Gold, 13 kg Silver, 3.5 kg Aluminum approx
• Package: Pack contains Furnace Body, Burner Set, 6.5 ft. gas hose pipe, 2 hose clamps, Gas pressure regulator (Gas pressure 0-21 Psi) with manometer (Direct connect with USA propane tank), User manual & Assembly instruction. It is ready to use with a standard propane tank in the USA.

Description

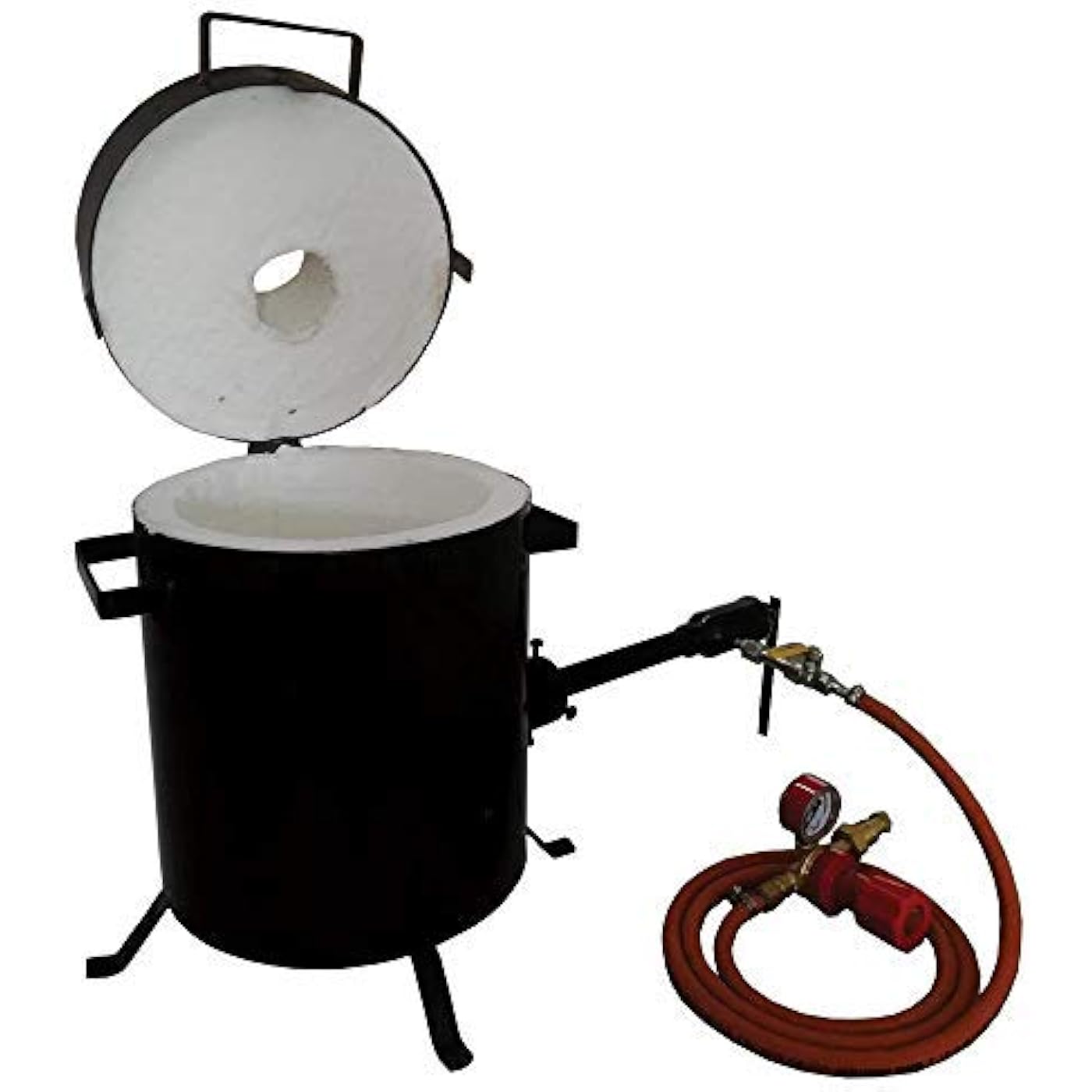

10 Kg Metal Melting Furnace from Hytech Products having MS material body and Burner Nozzle made from SS-304 delivers solid performance and high durability. Propane Furnace heating zone is fully insulated with 1 Inch thick refractory ceramic fiber, and it’s cover is insulated with 2-3 inch refractory ceramic fiber which can resist temperature up to 2600°F (1425°C). In order to provide better results and stability to crucible, furnace floor is geared with ceramic fiber and refractory brick.Interior of the combustion chamber comes up with refractory coating which protects inner wall, prevent heat loss, defend ceramic fiber linings against heat, flue gasses and fumes and help us save fuel and power.Generally Propane Furnace and other casting tools are used to make complex shapes by metal smith, jewellers, refiners or recyclers for smelting and have been widely applied for sculpture (especially in bronze), jewellery in precious metals, and weapons and tools. This propane furnace is efficient and effective for melting aluminum, copper, brass, bronze, gold, silver, iron and many others.SpecificationFurnace Body Construction: MS metal SheetFurnace Internal Dimension: 7.5 in.(W) x 9 in.(H)Furnace Outer Dimension: 11.57 in.(W) x 14.5 in.(H)Furnace Floor: 1 in.(T) Refractory Fire BrickCrucible Maximum Size: 9 in. (228) (H) & 8 in. (200 mm) (W)NoteMake sure to follow the safety precautions in the book (attached with products)

Package Dimensions: 25 x 15 x 14 inches

Is Discontinued By Manufacturer: No

Item Weight: 25 pounds

Manufacturer: Spectra Overseas

Country of Origin: India

Date First Available: September 6, 2018
